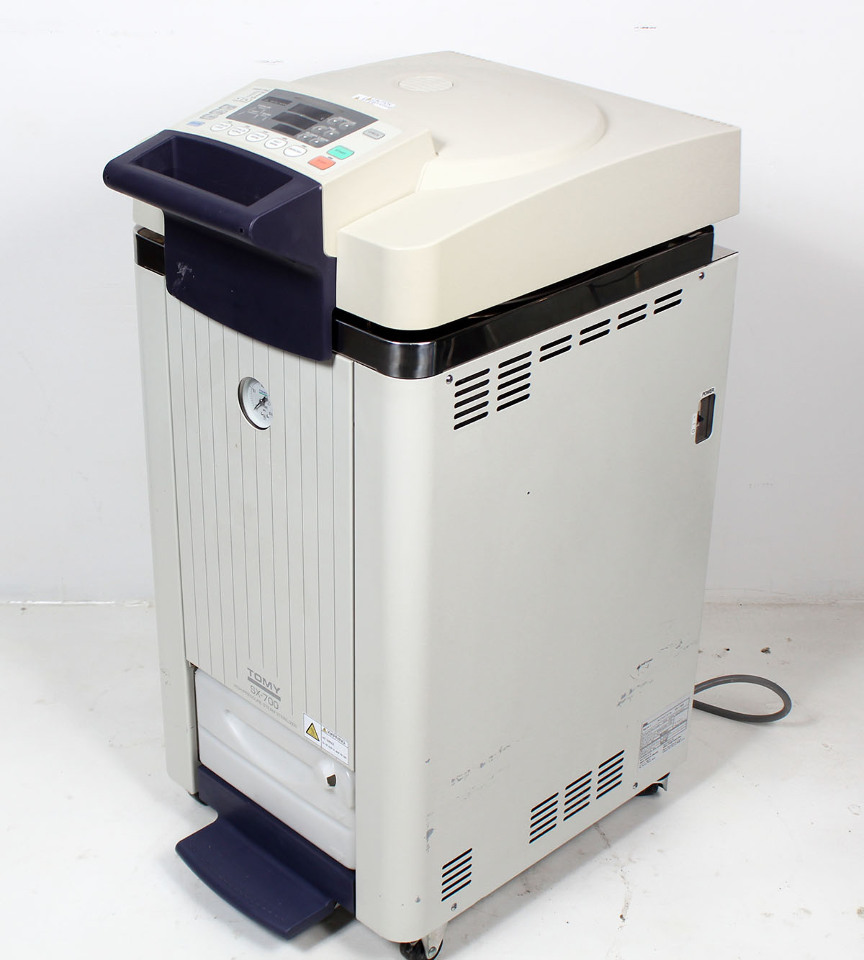

Clean and in good working condition. Well maintained and regularly serviced under contract at a premiere state laboratory. The heating element was replaced in 2023 and we replaced the exhaust line in house.

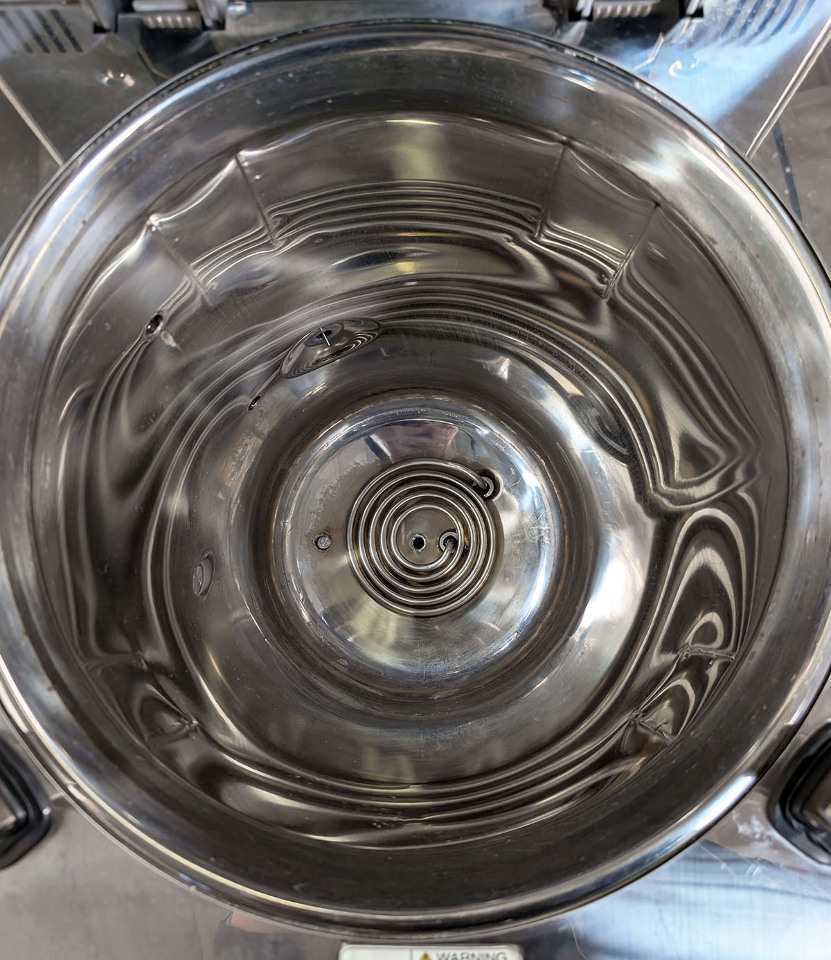

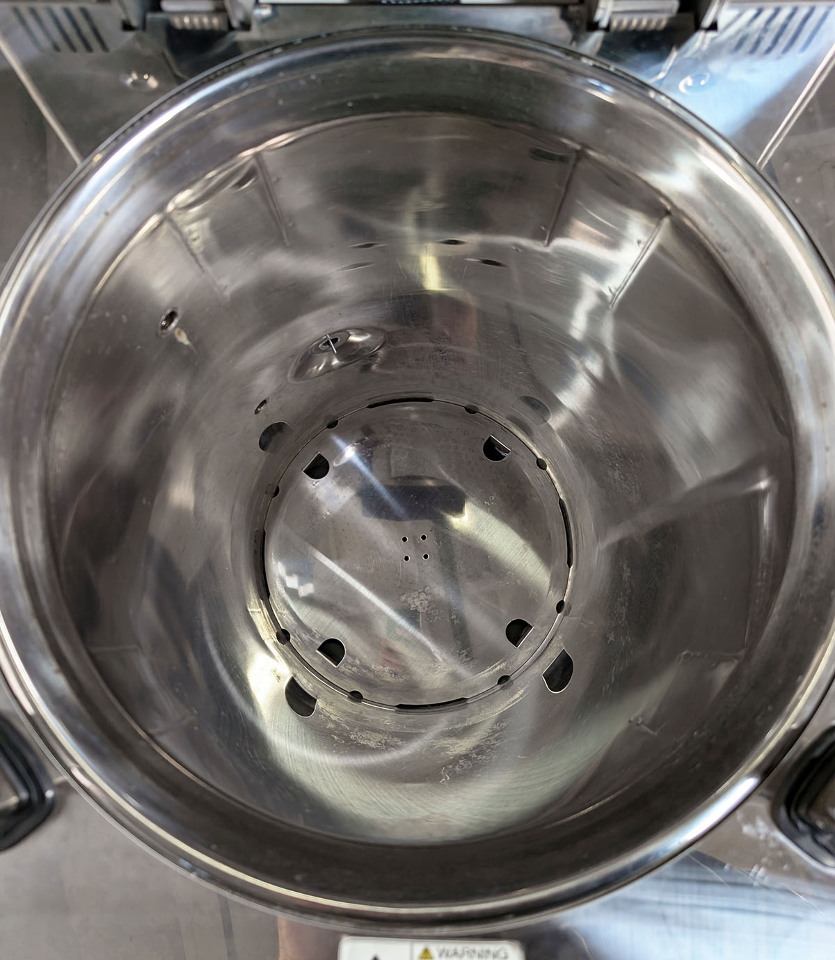

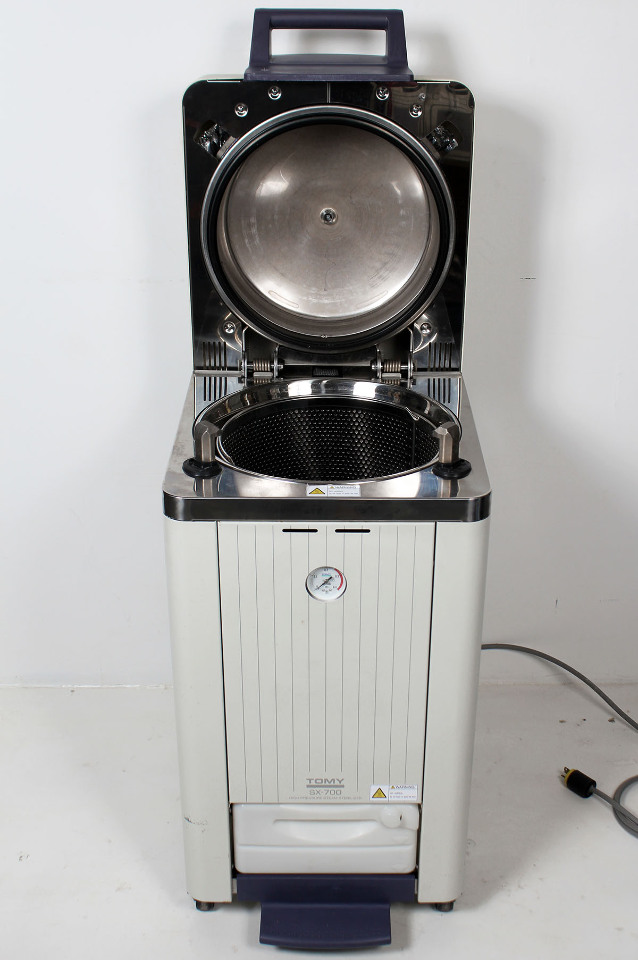

Cleaned and tested through several complete cycles in our facility. Heating, level sensor, pressure, door lock, drain and interface functions all worked perfectly. During two days of various test cycles, the system behaved perfectly with no water or steam leaks.Interior is in good condition with some light staining as shown. Lid gasket was supple and in great condition.

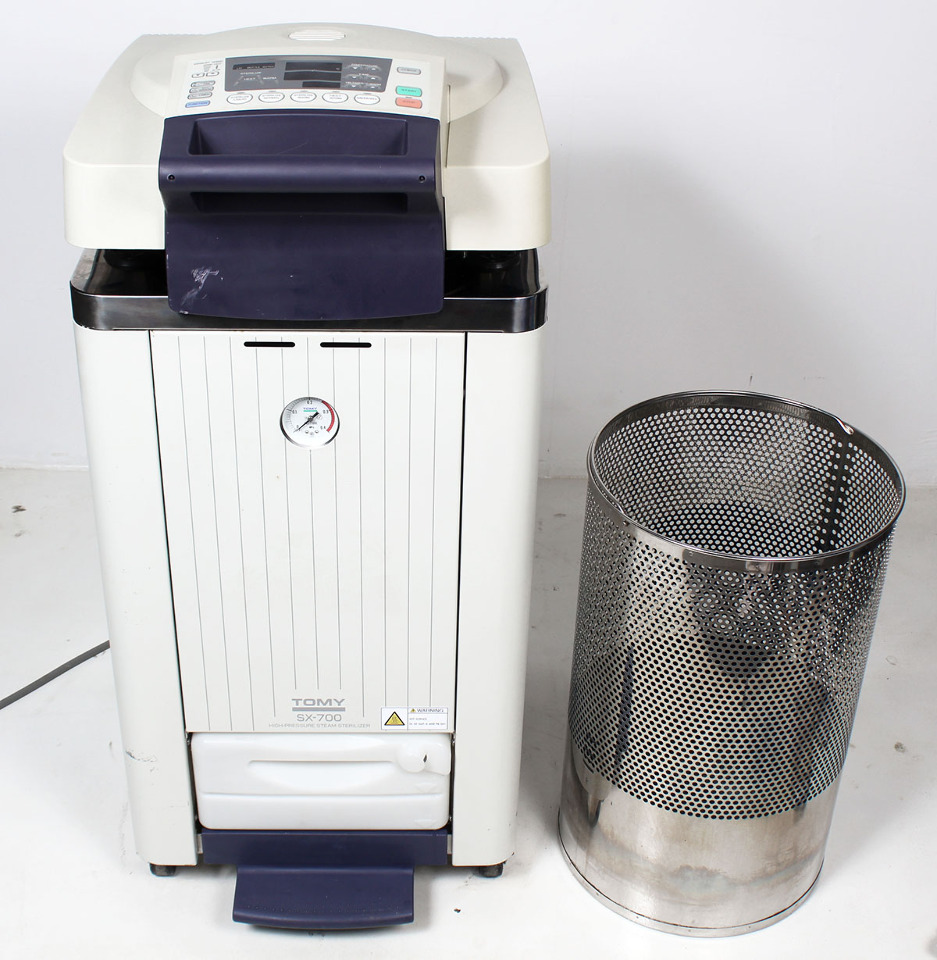

Unit comes exactly as shown with bottom tray, full sized basket and attached 230V power cable.
Hassle-free warranty.
**DUE TO SIZE and WEIGHT, WE WILL BE SHIPPING THIS VIA FREIGHT CARRIER.**
The flat rate quote is based on commercial locations in the lower 48 with fork lift or loading dock onsite. If your location is not commercial, or you need lift-gate delivery, contact us for an updated quote.
If you'd prefer to ship with your own carrier, use the following info:
Ship weight: 180lbs
Dims: 40"W, 30"L, 45"H
Commercial Pickup location: 95403 | Forklift onsite
Manufacturer Description

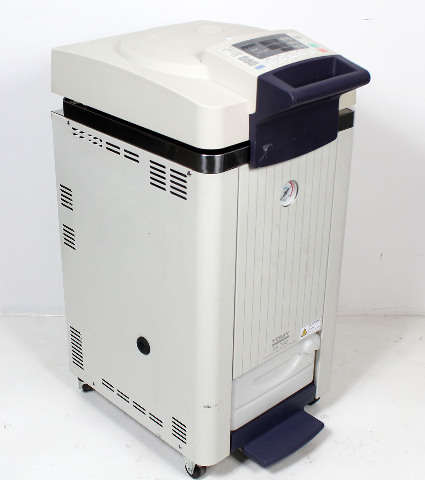

Fast and compact lab autoclave sterilizer.
Small footprint and maximum capacity in the least amount of space. Fits any lab!
Rapid Cooling Action
TOMY SX-700 Lab Autoclave comes standard with a dual fan system, which reduces the cooling time by 42% compared to non-fan-equipped autoclaves. Thus, shortening overall operation time and reducing the possibility of burns.
Easy installation
Just plug it in and add water! Whereas some lab autoclaves need plumbing or vacuum connections, Tomy Autoclaves are simple to install.
Intuitive operation

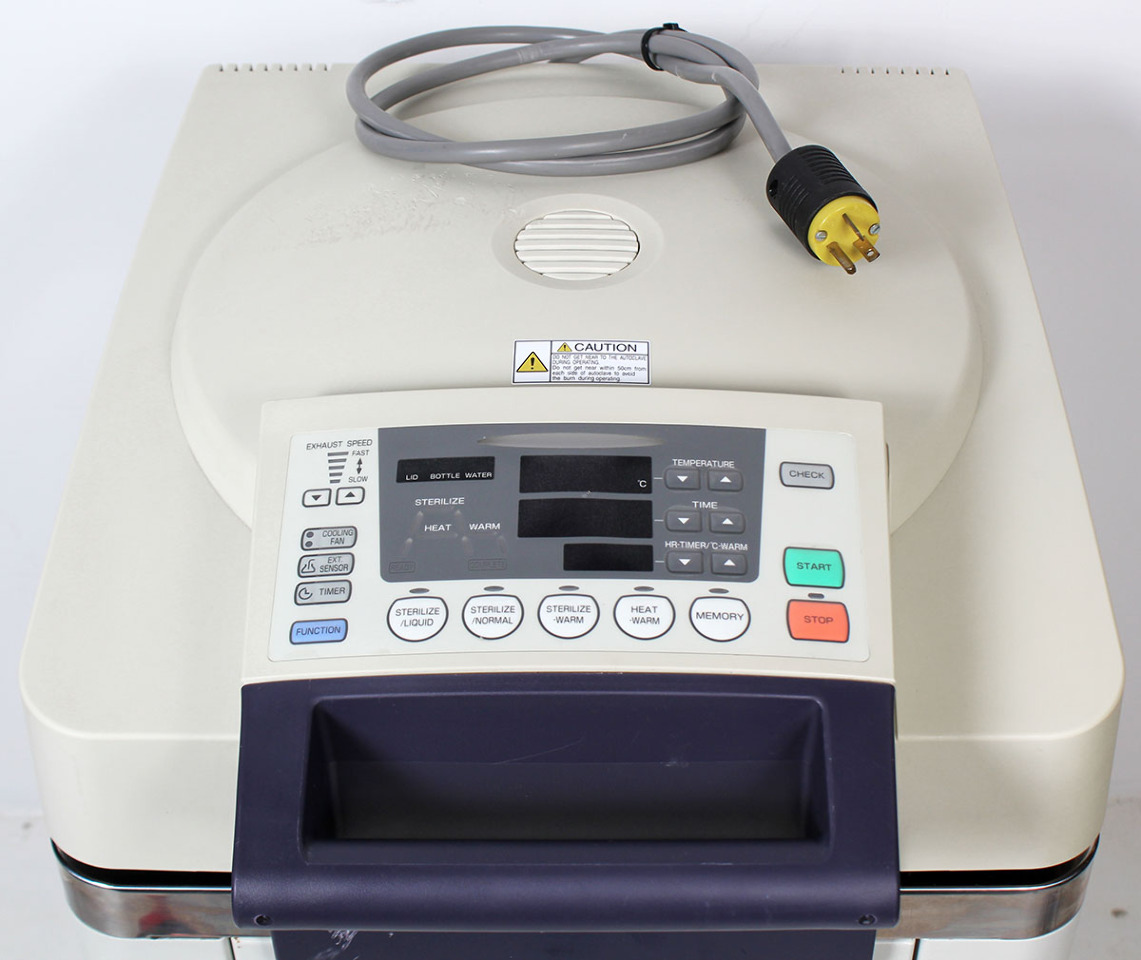

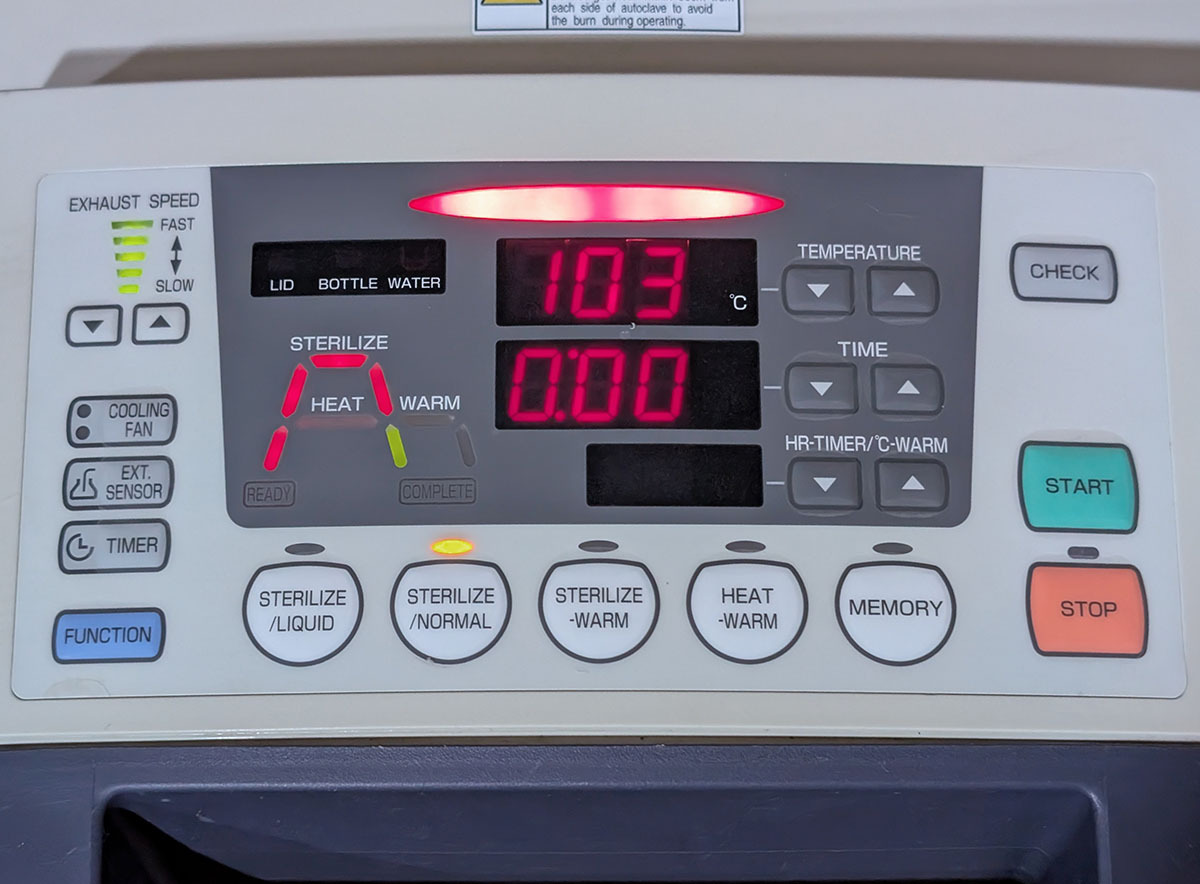

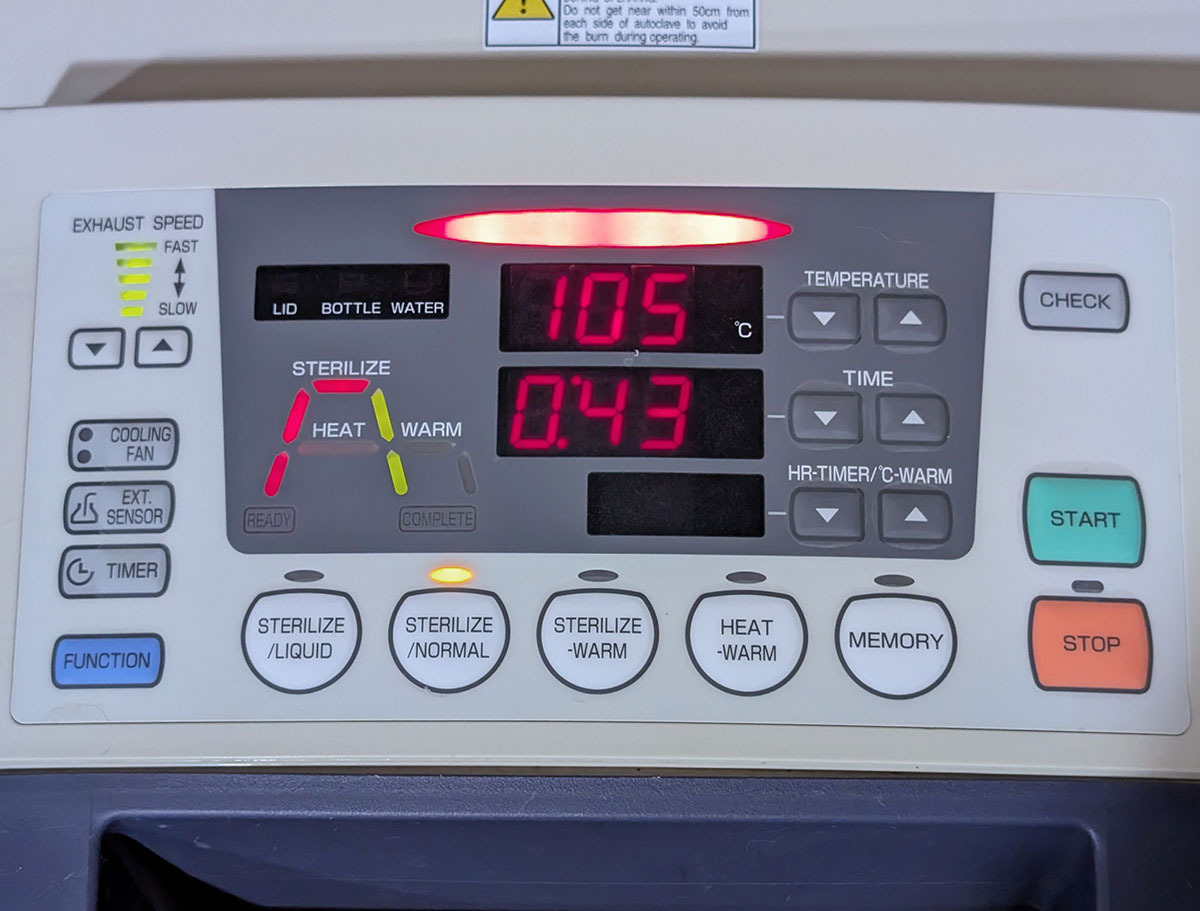

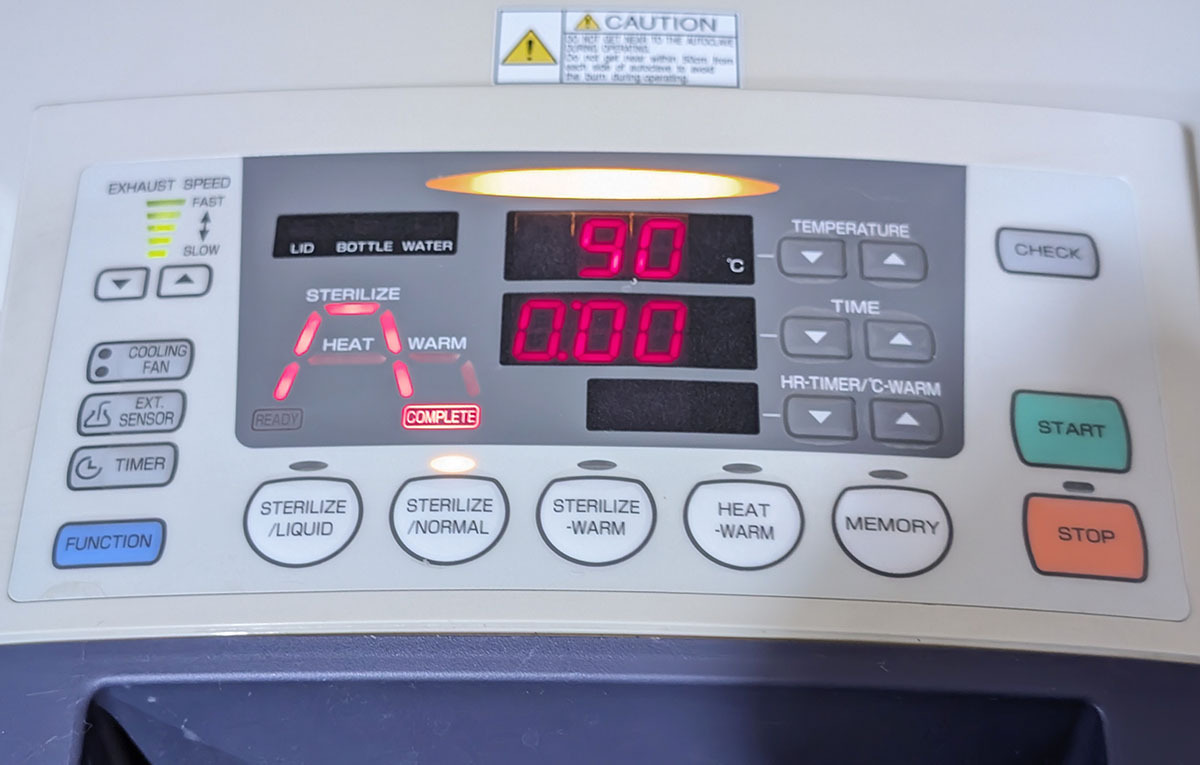

Because of a well-designed LED display, the TOMY SX-700 Lab Autoclave is easy to monitor. The foot-pedal assisted mechanical lid makes for easy opening. And wheels allow for effortless movement and storage.
5 Convenient Sterilization Settings
First, a Liquid Sterilizing Course which helps prevents boiling over. Second is the normal Sterilizing Cycle. Next the Sterilizing–Warming Course prevents coagulation, hardening, or freezing of culture media after the sterilization ends. Then the Heating–Warming Course, which is convenient for heating and dissolving culture media. Last, a Memory Recall setting, which allows you to repeat previous settings.
Space-Saving
The main body of the SX-700 autoclave is compact because of the vertical design. Vertical autoclaves are ideal for maintaining high capacities in a compact lab setting. In addition, installation space at the side of the autoclave is not required, as compared to autoclaves using a slide-open lid.
Designed to be reliable and simple
Made of high quality, durable materials. Because TOMY focuses on quality, we help create the best user experience possible, with minimal maintenance or downtime.
Specifications
| Operating Temperature Range | Sterilizing | 105 - 135°C （0.019 - 0.212 MPa） | ||
| Heating | 45 - 104°C （0 - 0.015 MPa） | |||
| Warming | 45 - 95°C | |||
| Maximum Operating Pressure | 0.25 MPa | |||
| Temperature | Display | Digital | ||
| Pressure Gauge | Display | Analog | ||
| Display Range | 0 - 0.4 MPa | |||
| Heat Source | 3 kW electric heater | |||
| Safety Device | • Water level sensor • Current leakage breaker • Lid interlock • Over-heat prevention • Over-pressure prevention • Open temperature sensor detection • Safety valve | |||
Time |
Display | Digital | ||
| Display Range | Sterilizing | 0:00 - 9:59, 0 - 99 hours, 0 - 999 min. (0:00 - 9:59, 10 - 99 hours changeable) | ||
| Heating | ||||
| Warming | Variable: 0 - 99 hours | |||
| Effective Chamber Dimensions | φ360 x 675 mm | |||
| Chamber Capacity | Effective internal volume: 69 L, Internal volume: 79 L | |||
| Chamber Material | SUS304 | |||
| Dimensions (mm) | 470 (W) x 528 (D) x 1051 (H) mm (With protruding: 625 D) | |||
| Weight | 72 kg | |||
| Required Power Supply | AC 220-240 V 15A (230V recommended) Requires NEMA6-15P type power plug | |||
| Power Consumption (calorific value) | 3.0 kW (2580 cal/h) | |||
| Environmental Conditions |
When operating the autoclave, observe the environmental conditions given below. Ambient temperature: 10 to 35°C Atmospheric pressure: 860 to 1060 hPa Relative humidity: 30 to 85% Maximum gradient: 2 |
|||
