Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864
Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864

Zeiss LD Achroplan 40x/0.60 Korr ∞/0-2 Microscope Objective Lens, 440864

$260.00

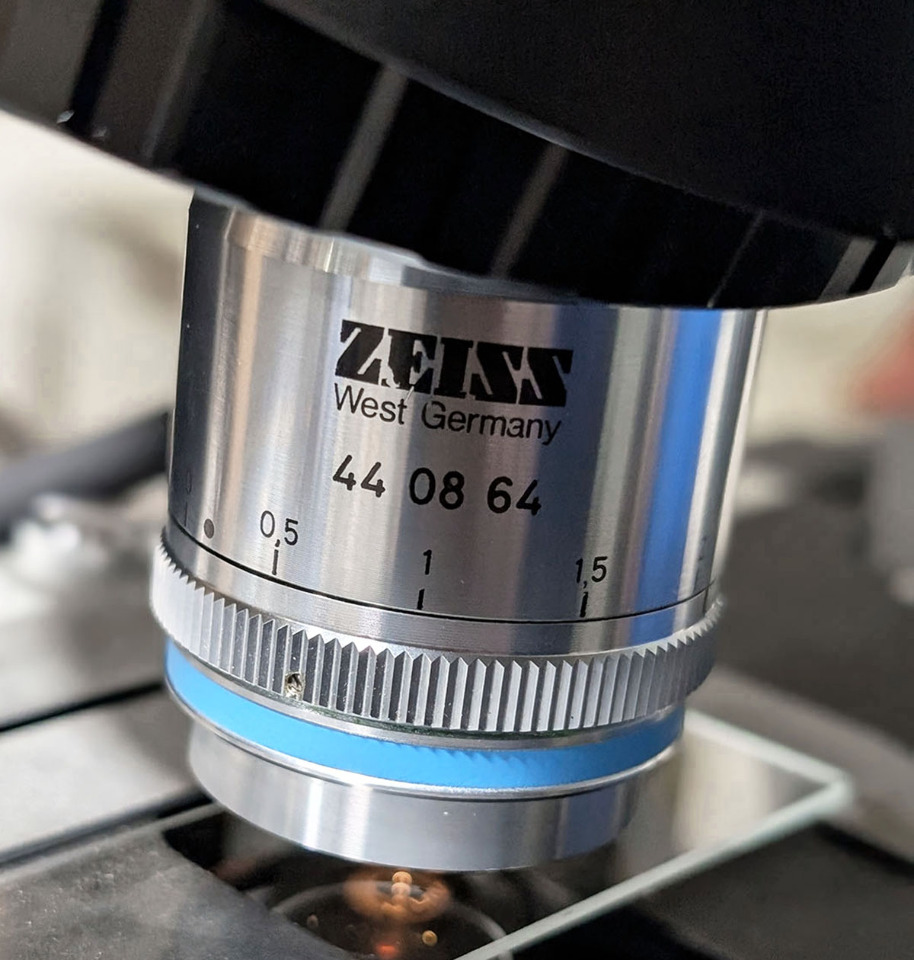

Good condition with clean optics (see scope photos).

Hassle-free warranty.


The Zeiss LD Achroplan 40x/0.60 Korr is a long-working-distance microscope objective designed for various microscopy methods, including brightfield and fluorescence, and features a correction collar for cover glass thickness adjustments.

  • Magnification: 40x
  • Numerical Aperture (NA): 0.60
  • Working Distance: 2.5 mm
  • Correction Collar (Korr): Adjustable for cover glass thickness from 0 to 2.0 mm
  • Optical System: Infinity Color Corrected System (ICS)
  • Immersion: Dry (without immersion media)
  • Thread Type: Standard RMS thread (W0.8x1/36")
  • Field of View: 23 mm (across visual field diameter)
  • Parfocal Length: 45.34 mm
  • Applications: Suitable for brightfield and epi-fluorescence microscopy
