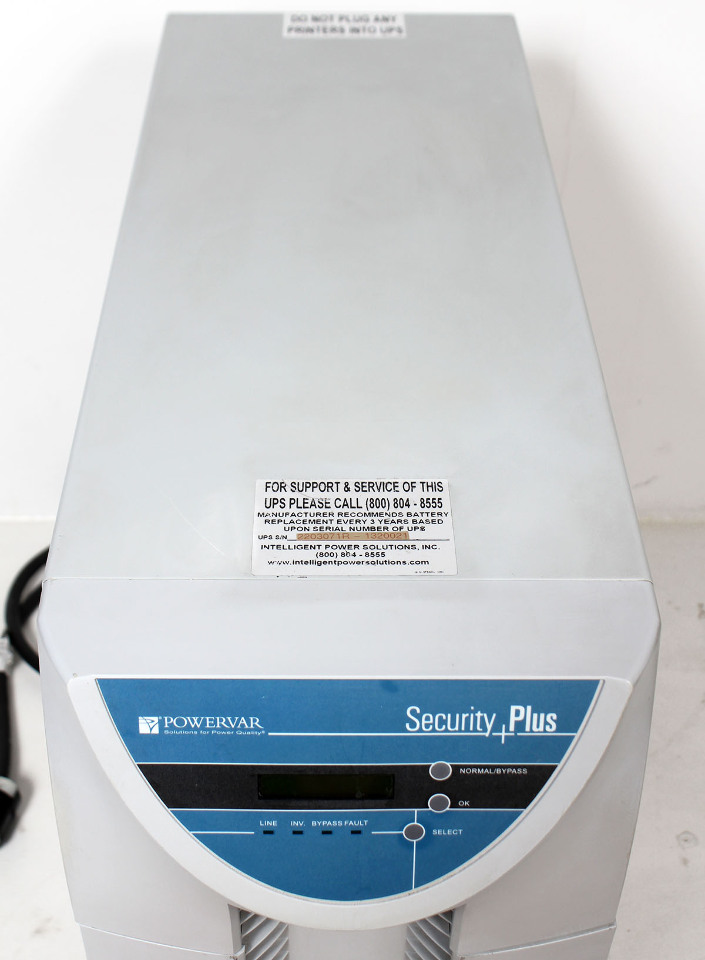

Clean and in good condition. Batteries appear to be good, however the recommended replace date has passed.
Hassle-Free Warranty**
**While battery appears good and system maintains power when unplugged, we cannot verify long term viability. As they are a replaceable part, and past their manufacturer replace date, warranty is for the hardware only and does not cover battery life.
Manufacturer Description
Oversizing a power protection system can result in higher costs to buy, install and operate. With the Security Plus Series UPS from AMETEK Powervar, you do not have to oversize your equipment.
The Security Plus Series is built to handle modern computer loads – systems with high crest factors and high current inrush peripherals – so over sizing is never an issue. In turn saving you money on your power protection equipment investment.

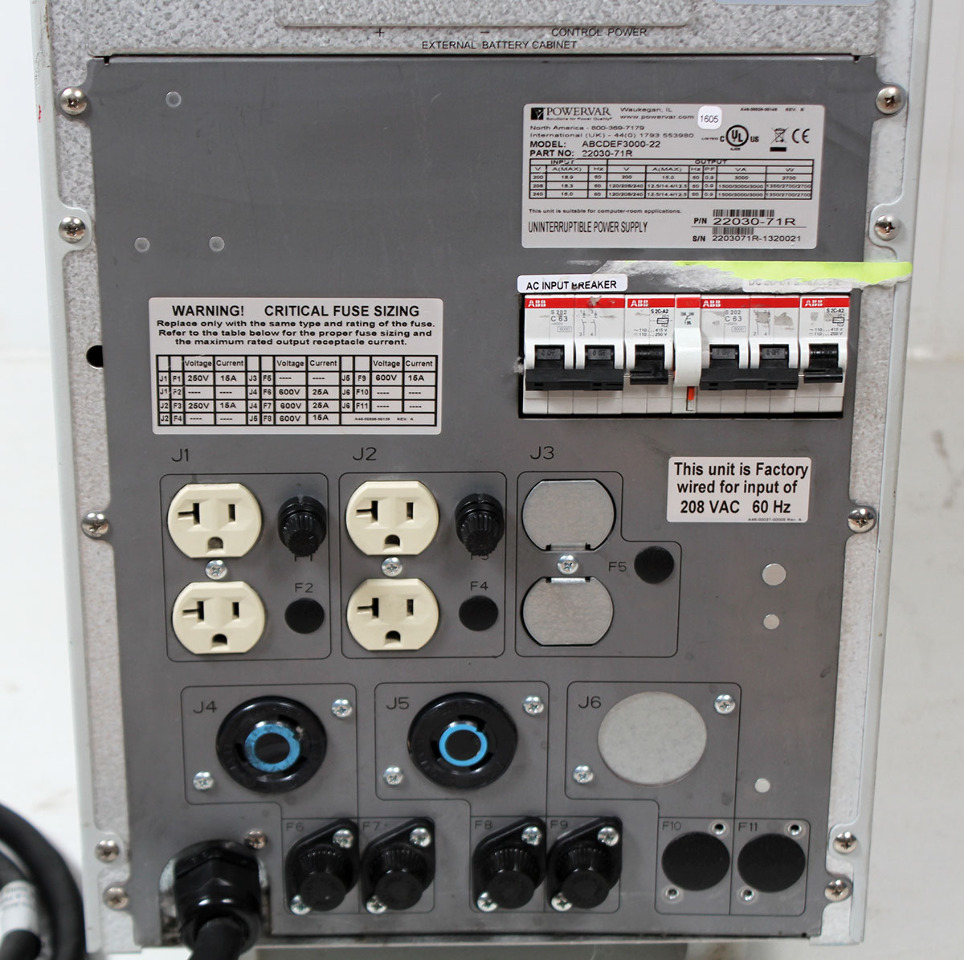

Security Plus offers custom solutions to meet the electrical requirements in today’s most diverse environments. You have the ability to custom design the output receptacle panel and your input line cord. These options allow the Security Plus Series to offer quick and easy on-site connection to your equipment.
- All models are UL listed and CE marked.
- Product sizes range from 2 kVA to 15 kVA
- Wide input voltage and frequency window provided by the online inverter
- Impressive 0.9 output power factor
- Low impedance isolation transformer
- Low input THDi
- Industry leading overload capabilities
- Diverse input voltage options
Let through voltage is less than 10 volts normal mode and less than 0.5 volts neutral-to-ground when tested to ANSI/IEEE C62.41
| Specification: | PowerVar Ametek Model: | |

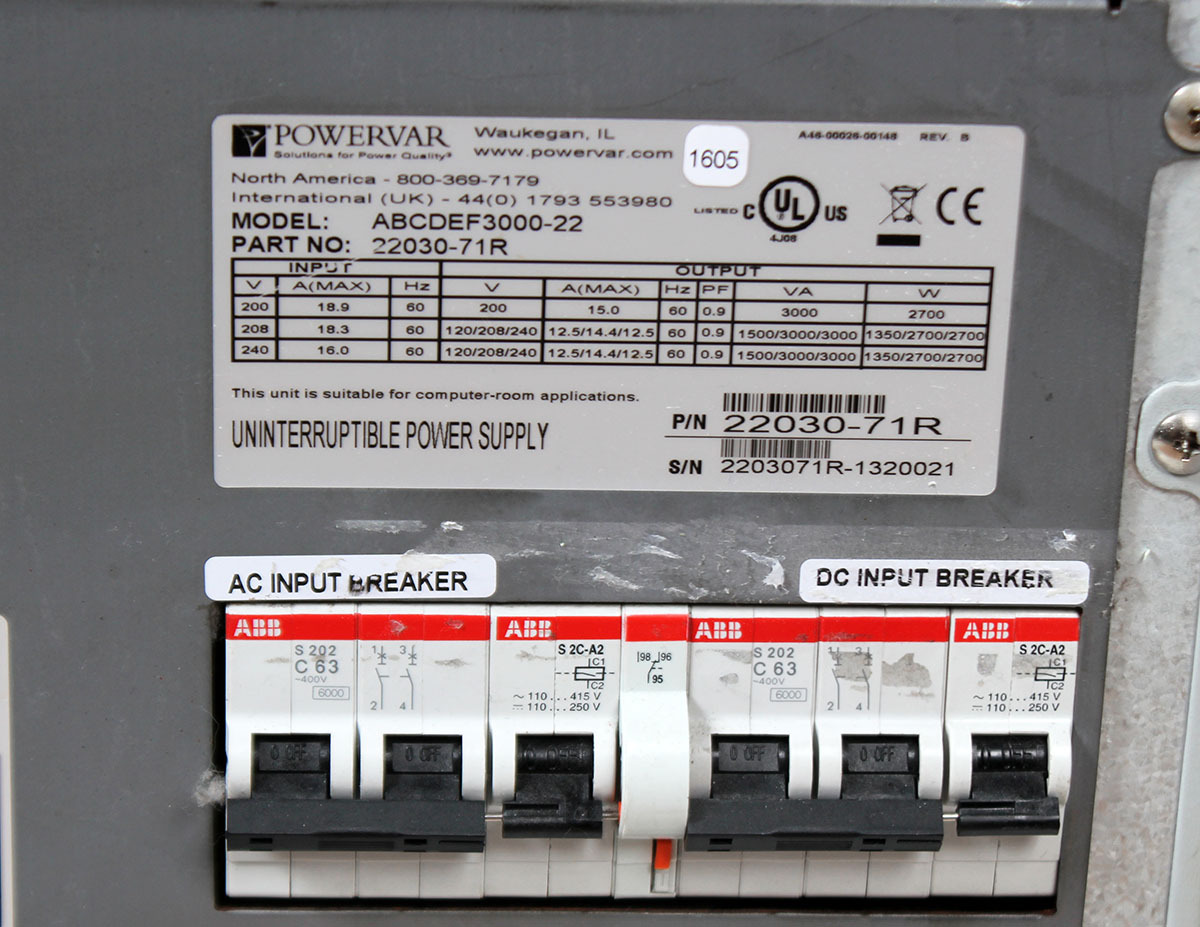

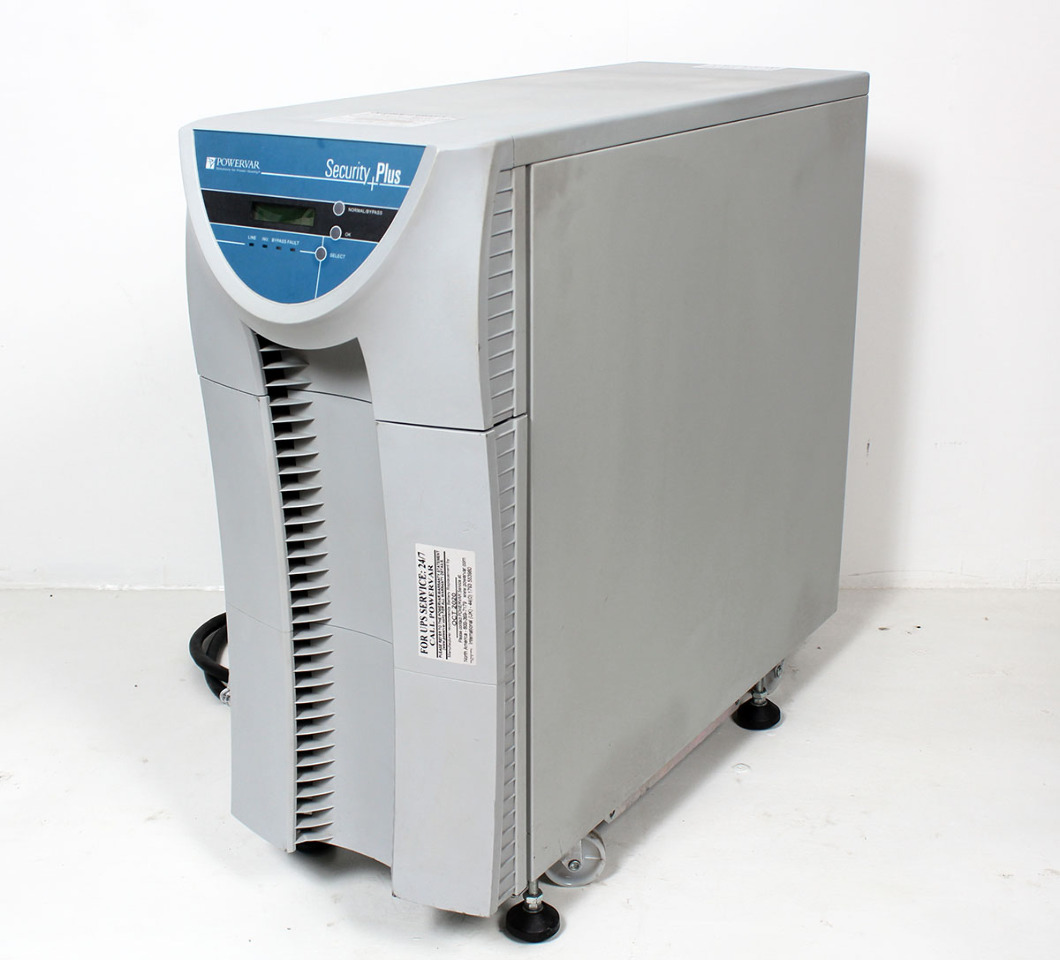

| Model: | PowerVar Ametek Security Plus (UPS) ABCDEF3000-22 | |
| Power Rating (VA/Watts): | 3000 / 2700 | |

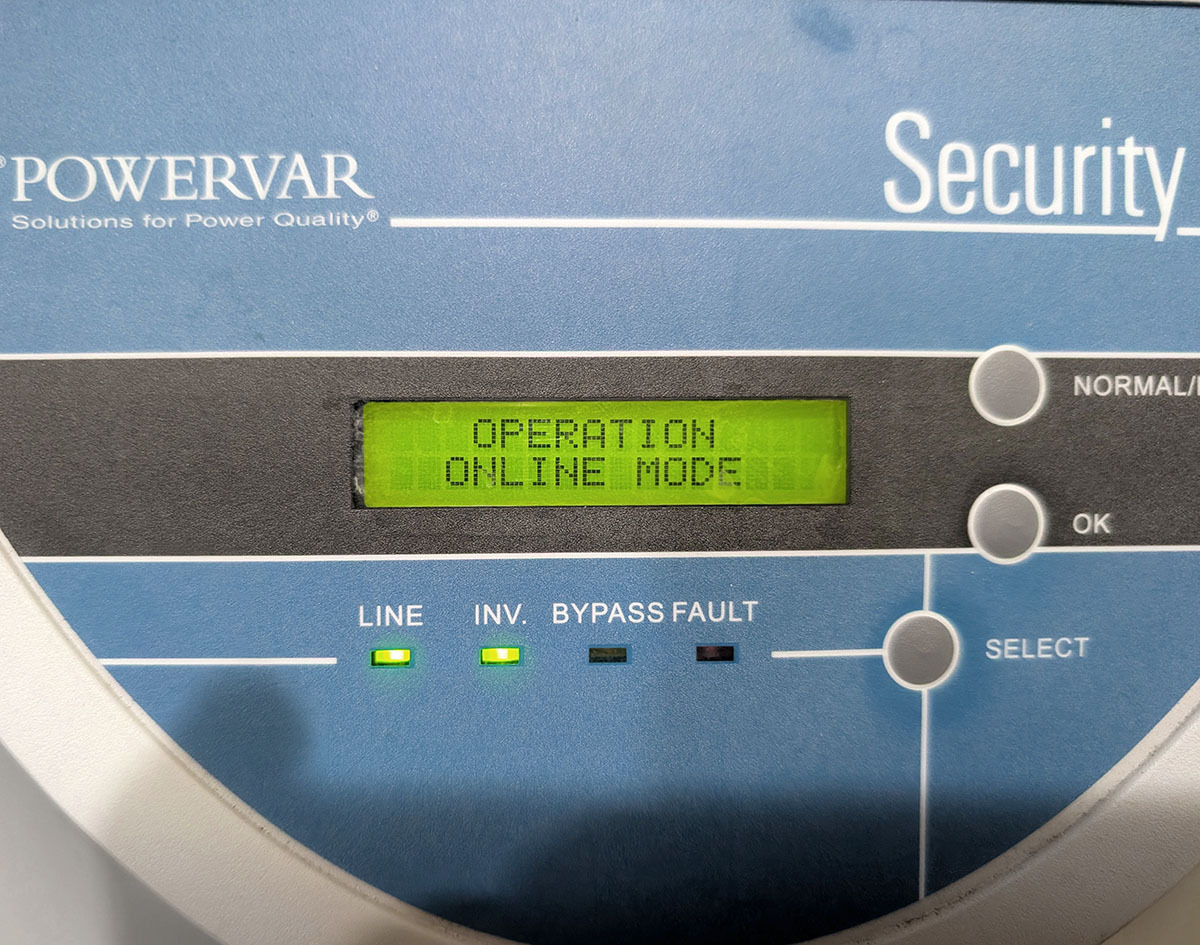

| Type: | Online (Double Conversion) With Isolation | |
| Inverter Waveform: | Pure Sine Wave | |
| Transfer Time: | 0 ms (Always Engaged) | |
| Frequency | 50/60 Hz | |
| Input Voltage: | 200, 208, 220, 230, 240 | |
| Output Voltage: | 120, 200, 208, 220, 230, 240 | |
| Input Voltage Range: | 200 To 276 Volts | |
| Output Regulation (On Mains): | ± 3% | |
| Output Regulation (On Battery): | ± 3% | |
| Backup Time at Full Load: | >12 Minutes | |
| Recharge Time: | 8 Hours To 90% | |
| Batteries: | 16x 12 Volt 7 Amp Hours | |
| Input Plug: | Hardwire | |
| Output Receptacles: | Hardwire | |
| Temperature (Operating): | 0 to 40℃ (32 to 104℉) | |
| Humidity (Operating): | 5% to 90% Non-Condensing | |
| Altitude: (Maximum Operating): | 2,000m (6,500 ft) |
