Bio-Rad TC20 Automated Cell Colony Counter Viability Analysis + Warranty

$750.00

Clean and in excellent condition. This 2017 unit was released from a premiere state facility during a dept transition and was listed as fully functional. Screen and UI response responded as designed.

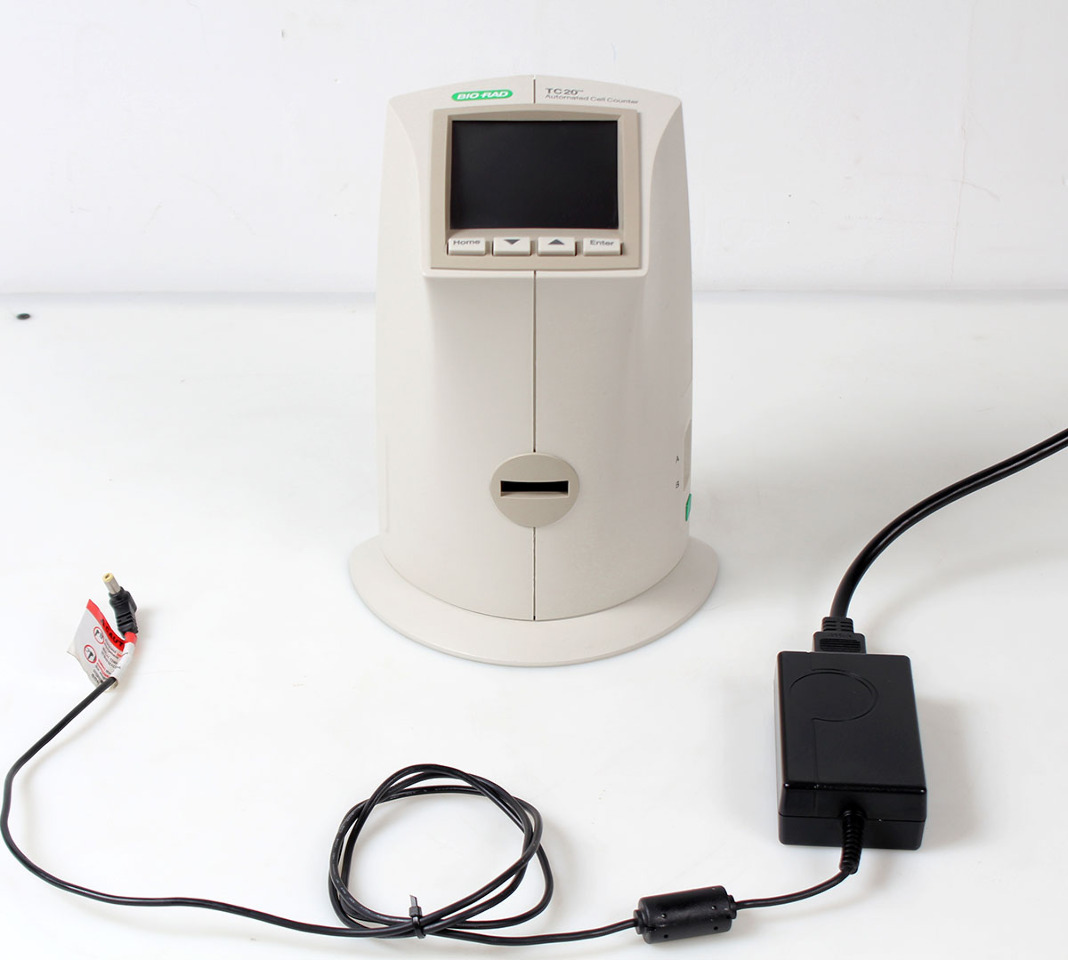

Comes as shown with power adapter.

Hassle free warranty.

Manufacturer Description

The Bio-Rad TC20 is an automated cell counter that provides accurate and reproducible total cell counts and viability assessments in a single, simple step. Utilizing innovative auto-focus technology and a sophisticated digital image analysis algorithm, the TC20 eliminates the subjectivity of manual focusing and reduces user-to-user variability. It is designed to count mammalian cells (6–50 µm) in less than 30 seconds, making it an essential benchtop tool for high-throughput laboratory environments.

Technical Specifications

  • Counting Time: < 30 Seconds
  • Cell Concentration Range: 5 x 10⁴ – 1 x 10⁷ cells/ml
  • Optimal Concentration: 1 x 10⁵ – 5 x 10⁶ cells/ml
  • Cell Diameter Range: 6 – 50 µm
  • Sample Volume: 10 µl (Minimum)
  • Detection Method: Brightfield-based with multi-focal plane analysis.
  • Data Storage: Up to 100 counts (onboard memory)
  • Data Export: Via USB Flash Drive (Excel-compatible)

Key Features

  • Innovative Auto-Focus: Automatically analyzes multiple focal planes to identify the best plane for counting, excluding debris and ensuring precision.
  • Cell Size Gating: Allows users to define a population of interest in complex samples (e.g., primary cells) or use the auto-gating algorithm.
  • Viability Assessment: Automatically detects Trypan Blue and calculates live/dead ratios using multifocal plane analysis.
  • Broad Compatibility: Suitable for cell lines, primary cells (from tissue or blood), and stem cells.
  • No Maintenance: Uses disposable slides, eliminating the need for tedious cleanup or fluidic maintenance.

Physical Details

  • Dimensions: 7.5 x 6 x 10 in. (19 x 15 x 25.4 cm)
  • Weight: 4.8 lb (2.2 kg)
  • Power Requirements: 100–240V AC, 50/60Hz
