Clean and in good working condition. Well maintained and regularly serviced under contract at a premiere state laboratory.

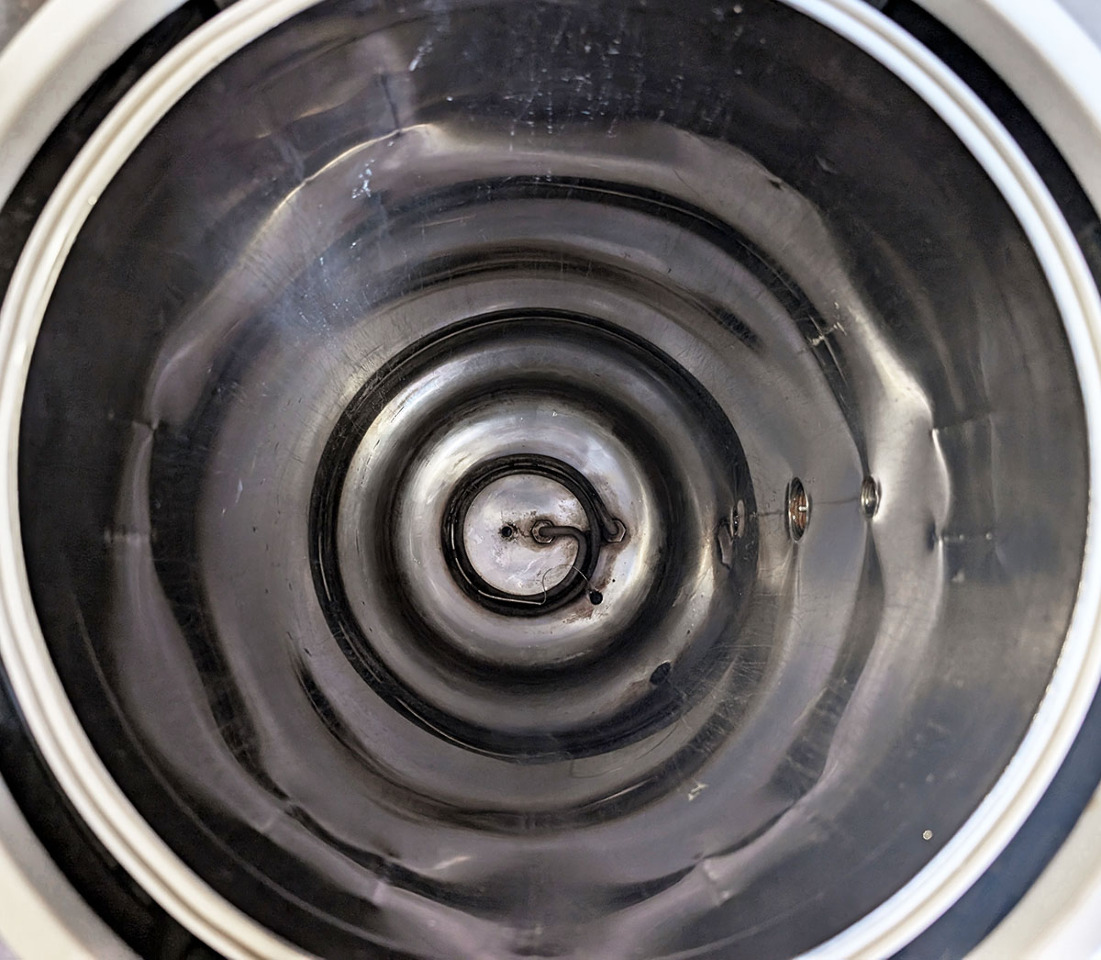

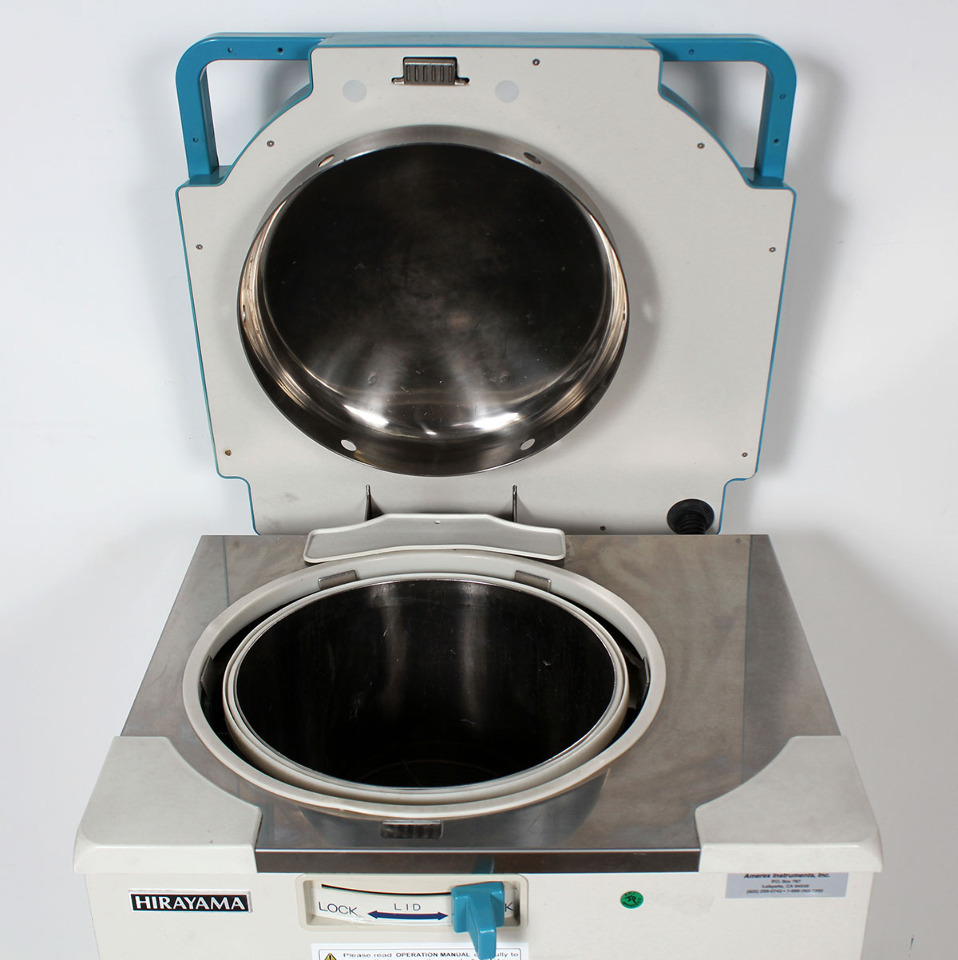

Cleaned and tested through several complete cycles in our facility. Heating, level sensor, pressure, door lock, drain and interface functions all worked perfectly. During two days of various test cycles, the system behaved perfectly with no water or steam leaks.Interior is in good condition with some light staining around the element as shown. Lid gasket was supple and in great condition.

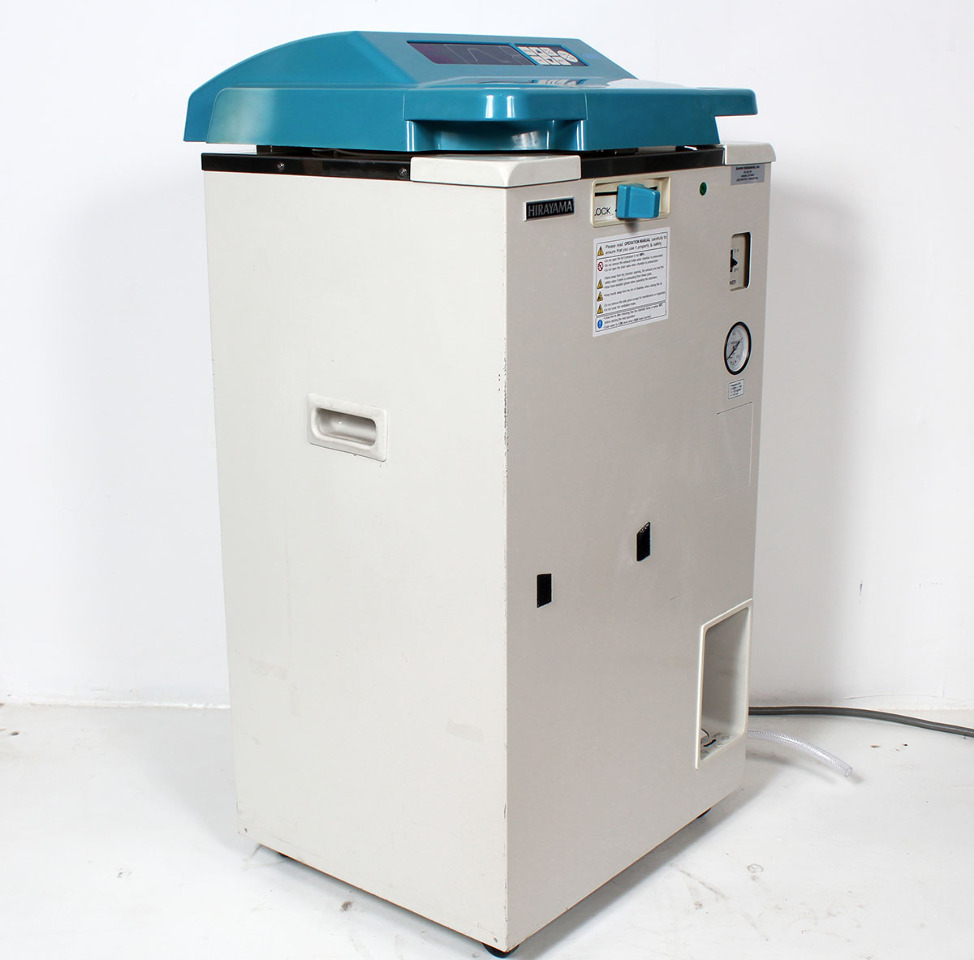

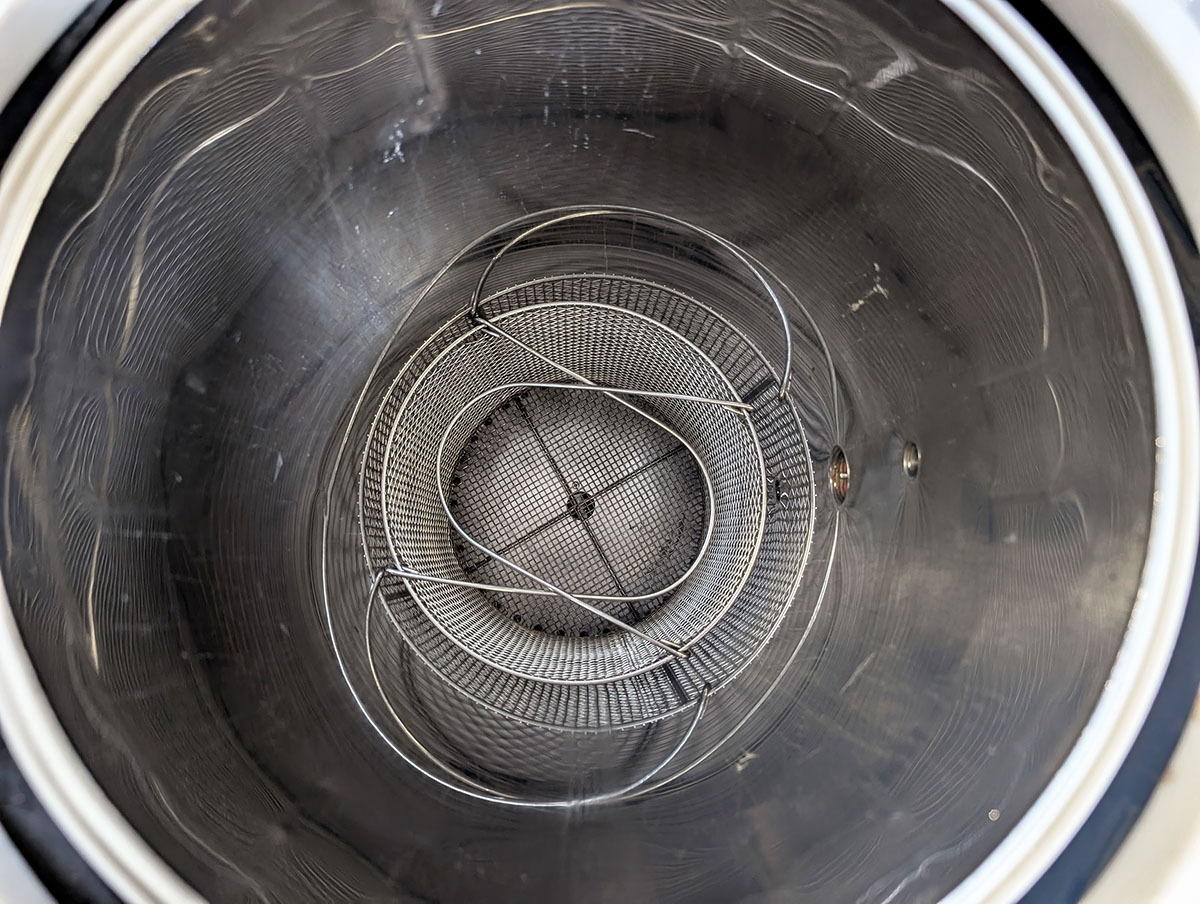

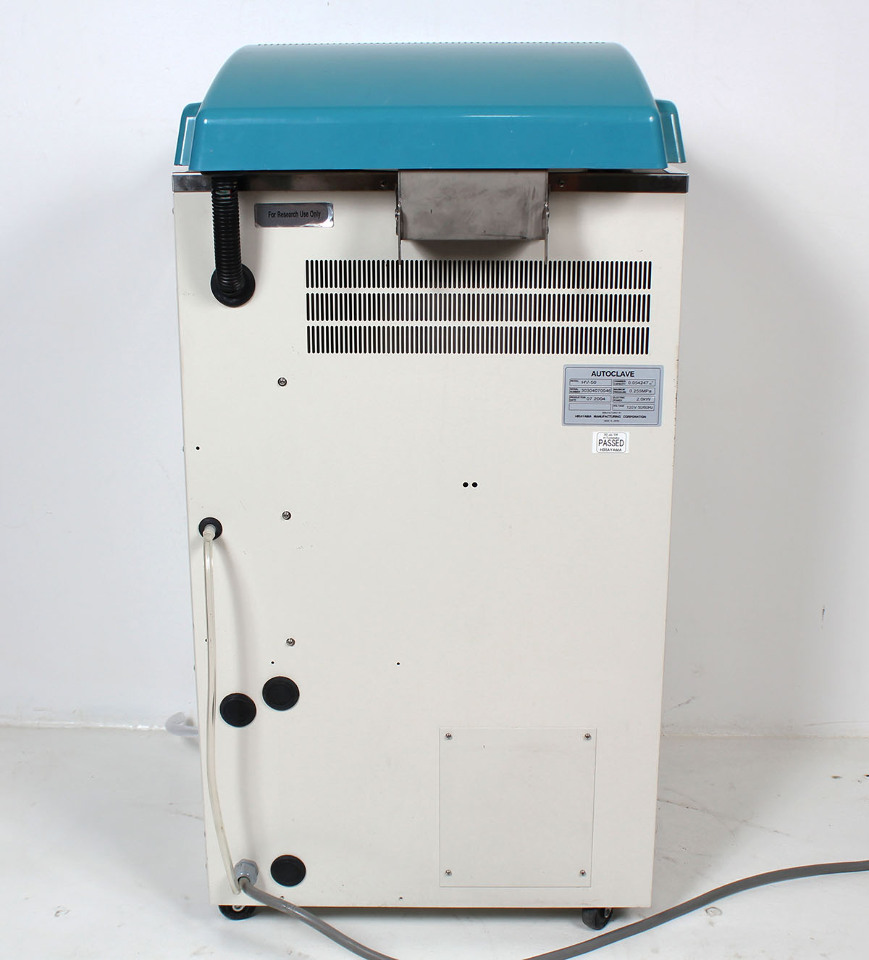

Unit comes exactly as shown with bottom tray, basket and attached 20A power cable.
Hassle-free warranty.
**DUE TO SIZE and WEIGHT, WE WILL BE SHIPPING THIS VIA FREIGHT CARRIER.**
The flat rate quote is based on commercial locations in the lower 48 with fork lift or loading dock onsite. If your location is not commercial, or you need lift-gate delivery, contact us for an updated quote.
If you'd prefer to ship with your own carrier, use the following info:
Ship weight: 180lbs
Dims: 40"W, 30"L, 45"H
Commercial Pickup location: 95403 | Forklift onsite
Manufacturer Description

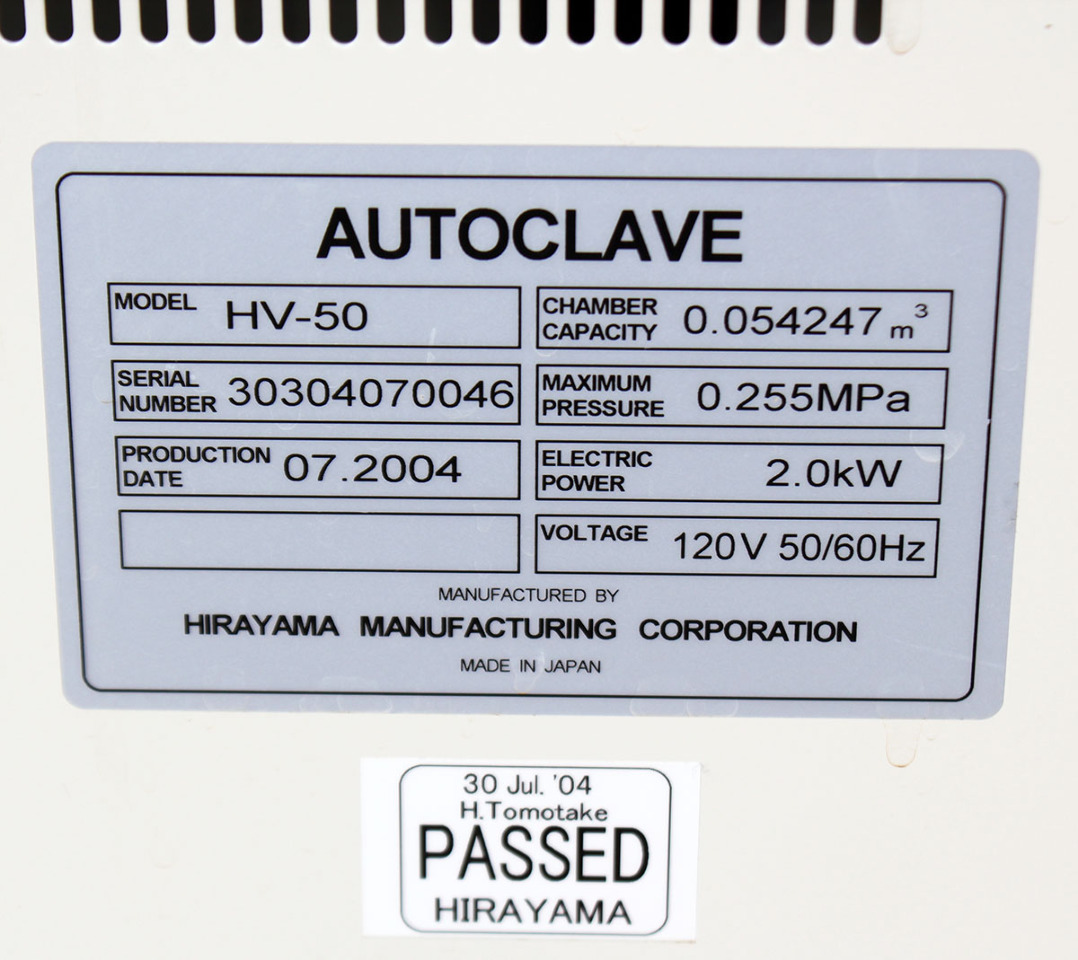

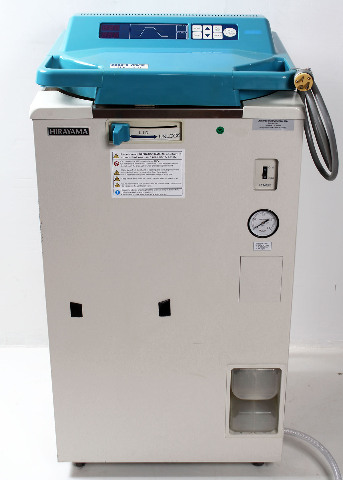

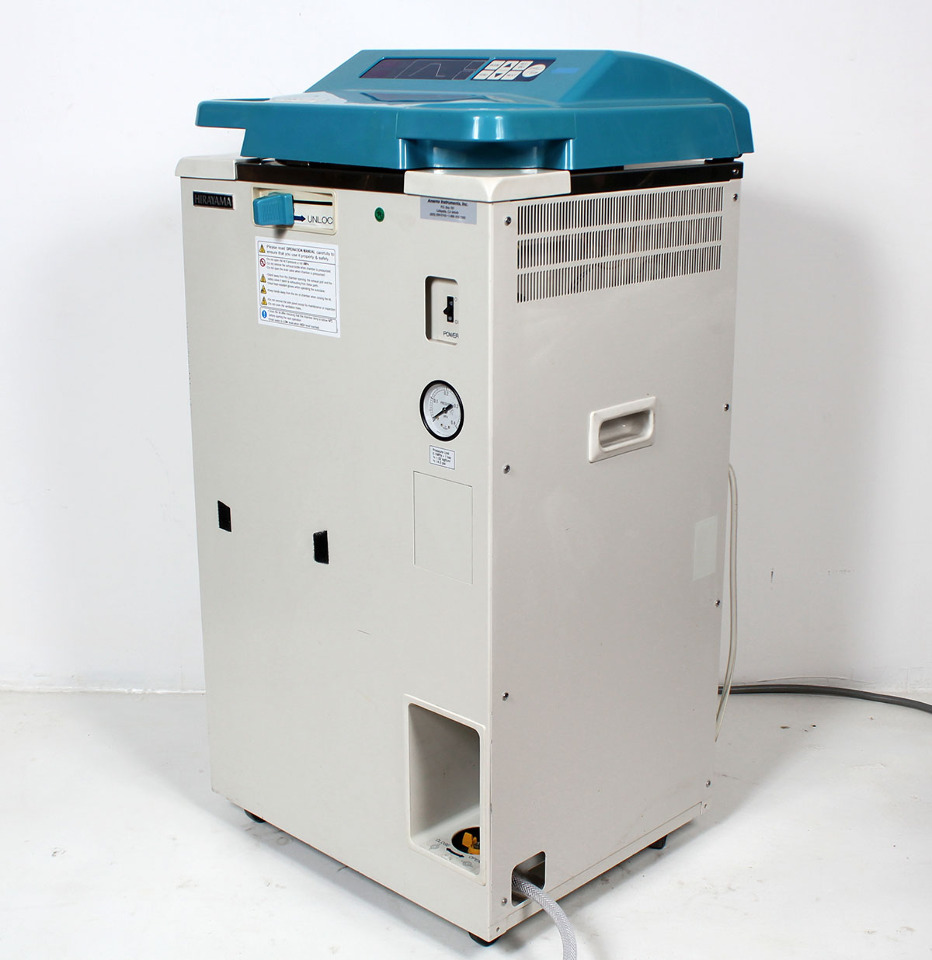

Hirayama HV-50 Upright Autoclave – 50 Liter Steam Sterilizer
The Hirayama HV-50 Upright Autoclave is a powerful, space-efficient 50-liter laboratory sterilizer designed for research labs, universities, clinical facilities, and biotechnological applications. Engineered for high-efficiency steam sterilization, this autoclave features intelligent safety mechanisms and versatile programming for handling liquids, solids, agar, and more.
Key Features:
- Space-Saving Vertical Design: Compact footprint with top-opening lid for easy access and minimal lab space usage.
- Programmable Auto-Start: Schedule sterilization cycles up to 7 days in advance for flexible workflow integration.
- Advanced Safety Interlocks: Dual-sensing lid lock prevents opening when chamber is pressurized or above 97°C.
- Microprocessor-Controlled Air Purge: Automatically prevents over-pressurization and ensures safe steam release.
- One-Touch Lever Operation: Simplifies lid opening and closing for daily ease-of-use.

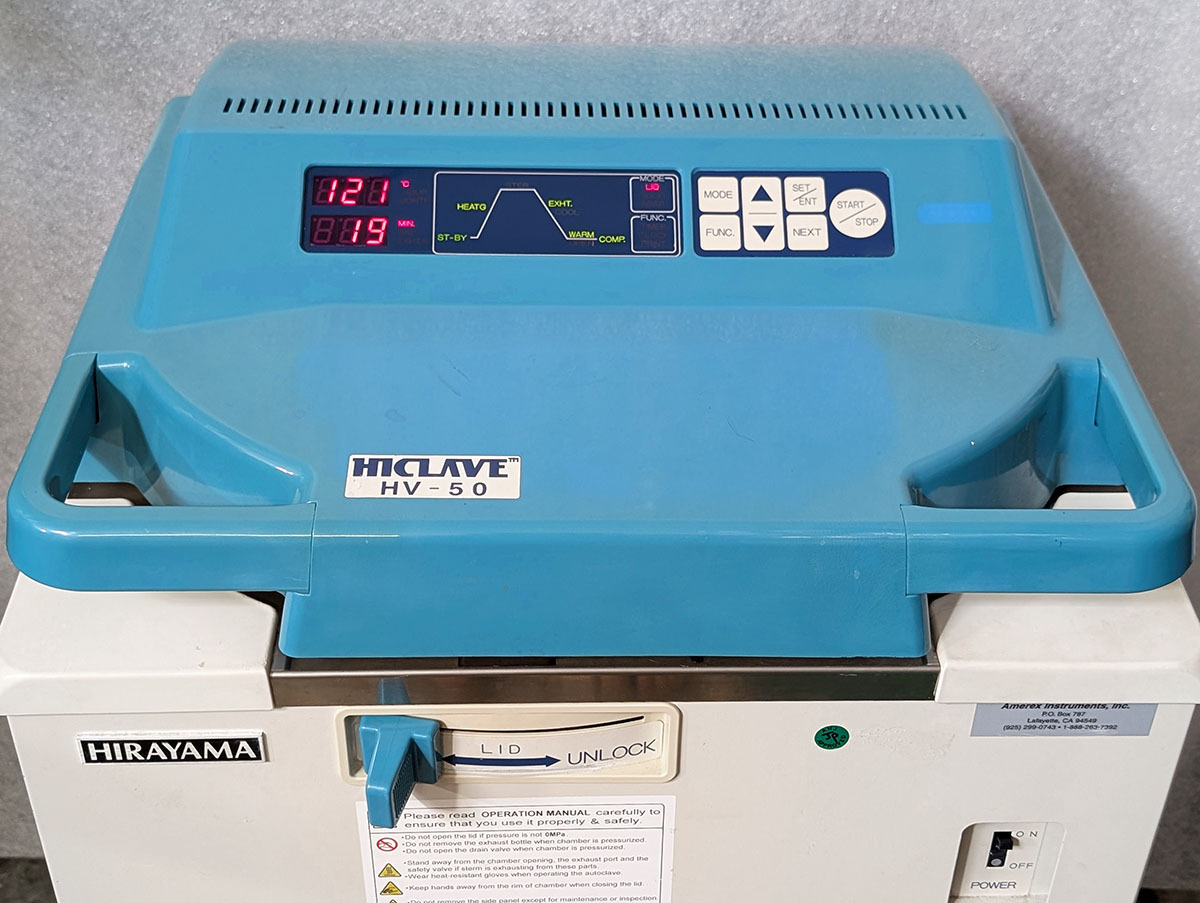

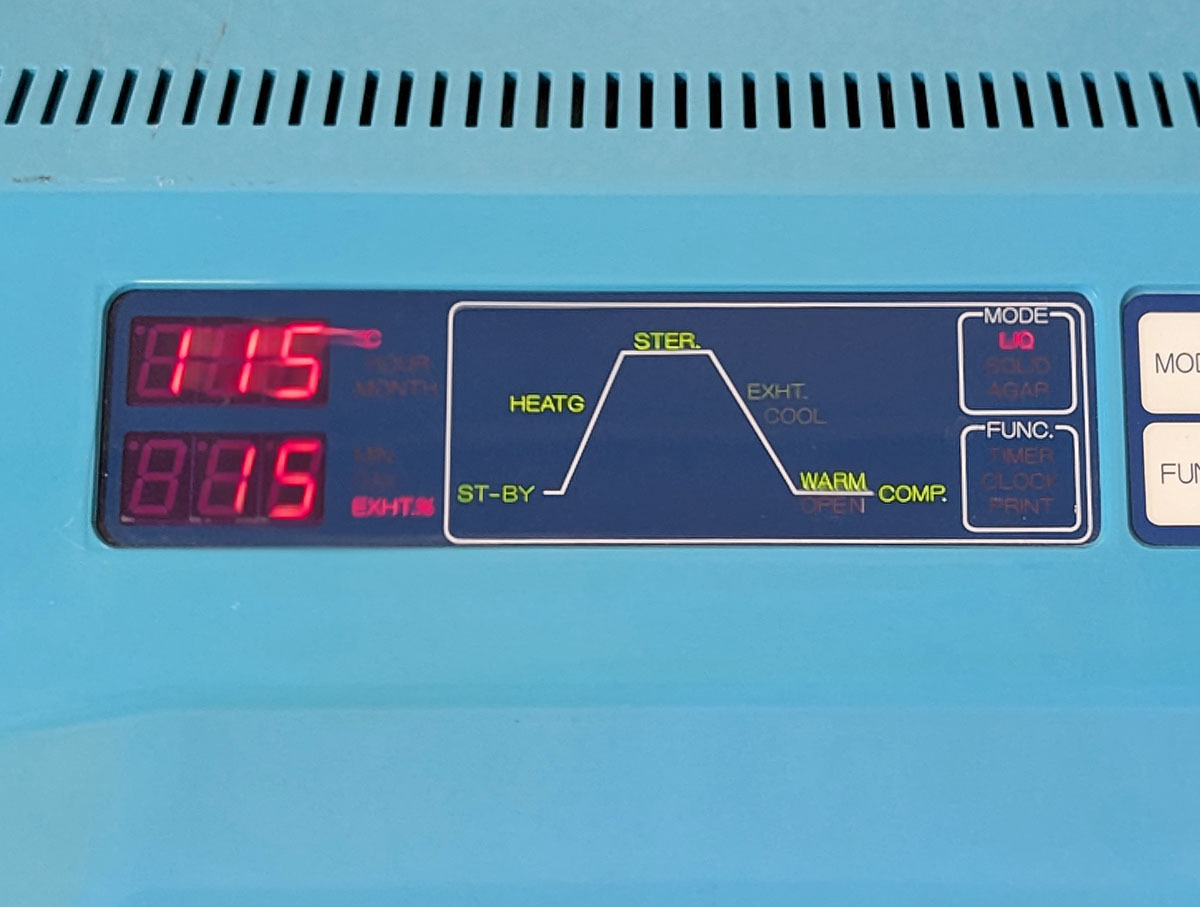

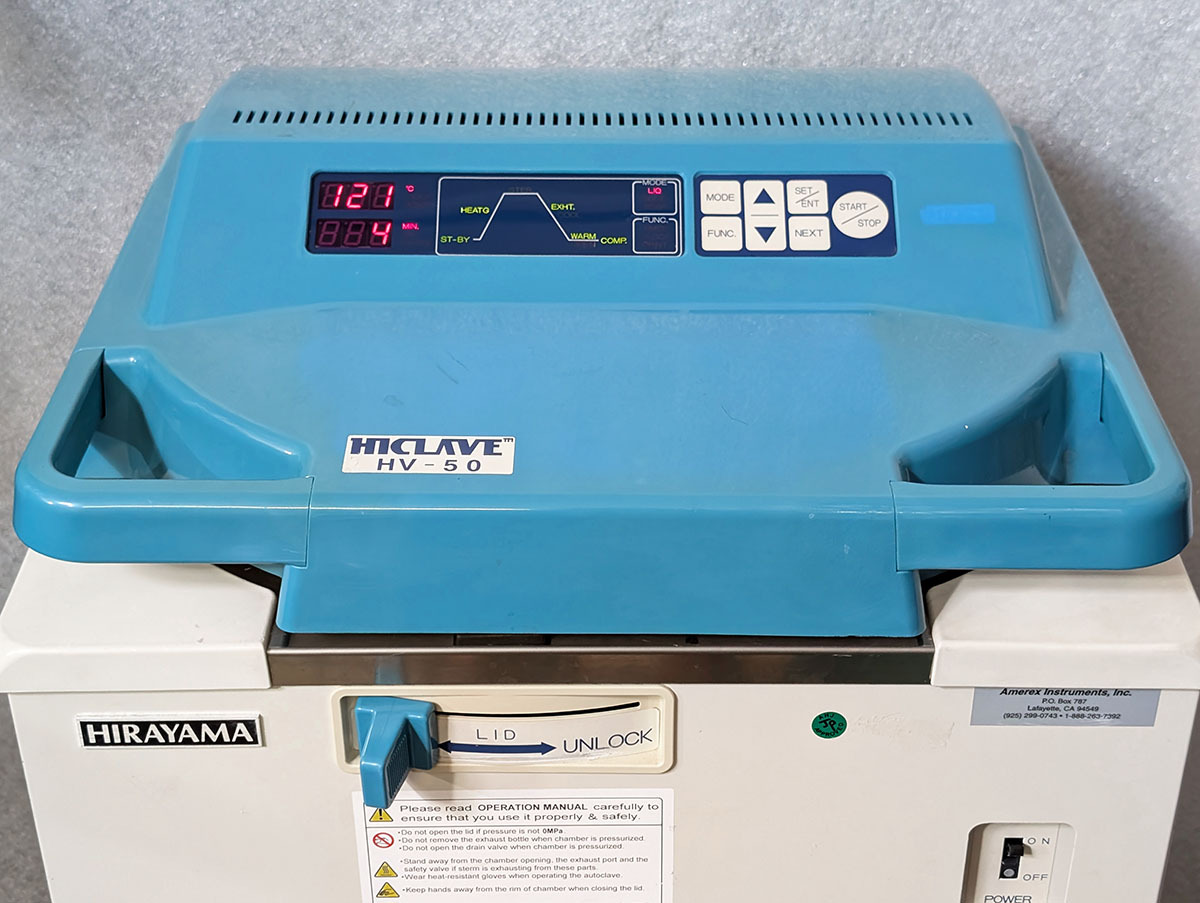

- Real-Time Cycle Display: Monitor sterilization status and temperature progress directly on the digital display.
- Precise Steam Exhaust Control: Adjustable exhaust rates tailored to different materials and sterilization needs.
- Dedicated Agar Modes: Features both agar sterilization and agar melting programs, maintaining liquid consistency at ideal temperatures.
Technical Specifications:
- Chamber Capacity: 50 liters (11.8" diameter × 28.0" height)
- Temperature Range: 105°C to 135°C (up to 137°C display range)
- Agar Warming: Maintains 45°C–60°C for up to 20 hours

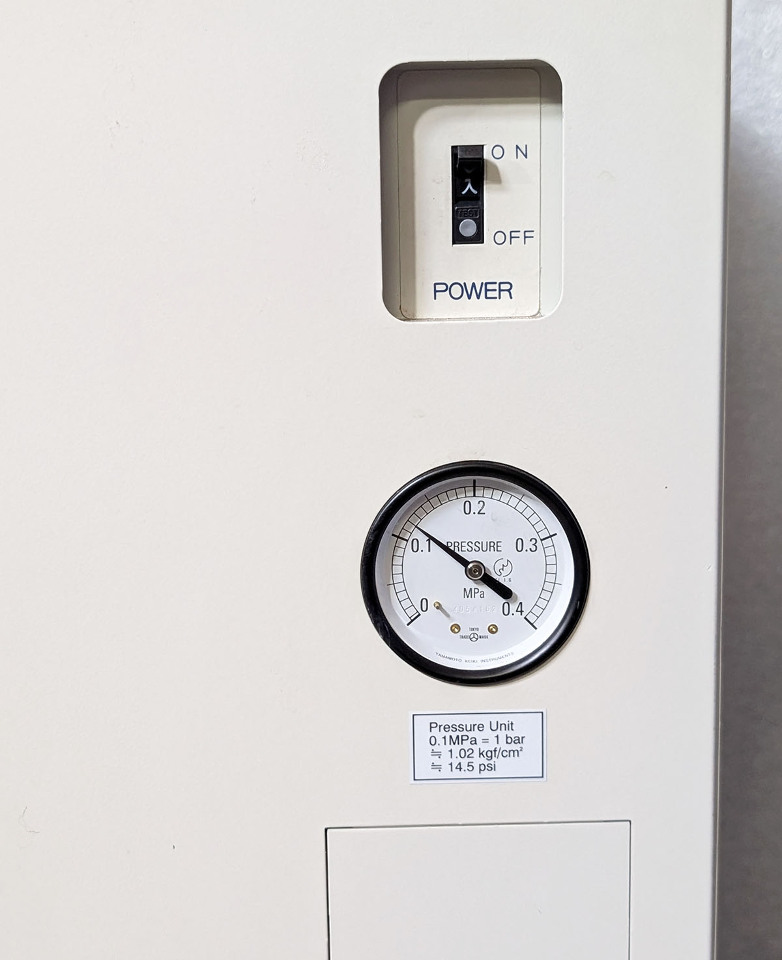

- Gauge Pressure: 3 to 30 psi (max 38 psi)
- Sterilization Timer: 1 to 250 minutes
- Delayed Start Timer: 1 minute to 7 days
- External Dimensions: 20”W × 21”D × 41”H
- Power: 120V, 50/60 Hz, 2000W (220V/240V models available)
- Weight: 180 lb (82 kg)
Built-In Safety Systems:
- Over-pressure and over-temperature shutoff
- Mechanical and microprocessor-controlled pressure relief valves
- Lid-closure detection and circuit breaker protection
Included & Optional Accessories:
- Mesh wire baskets, Floor pan, Built in 20 amp power cable
- Optional: Floating load sensor, digital printer, data logger
Ideal For:
- Research Laboratories
- Academic Institutions
- Clinical Testing Environments
- Microbiology & Biotech Labs
