Keysight Agilent E4418B EPM Single Ch RF Power Meter + Opts 02, 908 - Warranty

$380.00

Agilent 1100 Series G1321A FLD Fluorescence Detector w/G1369A Lan Interface

Clean and in excellent condition. This unit was pulled from a premiere state facility during an upgrade. It has been in a component rack since installation.

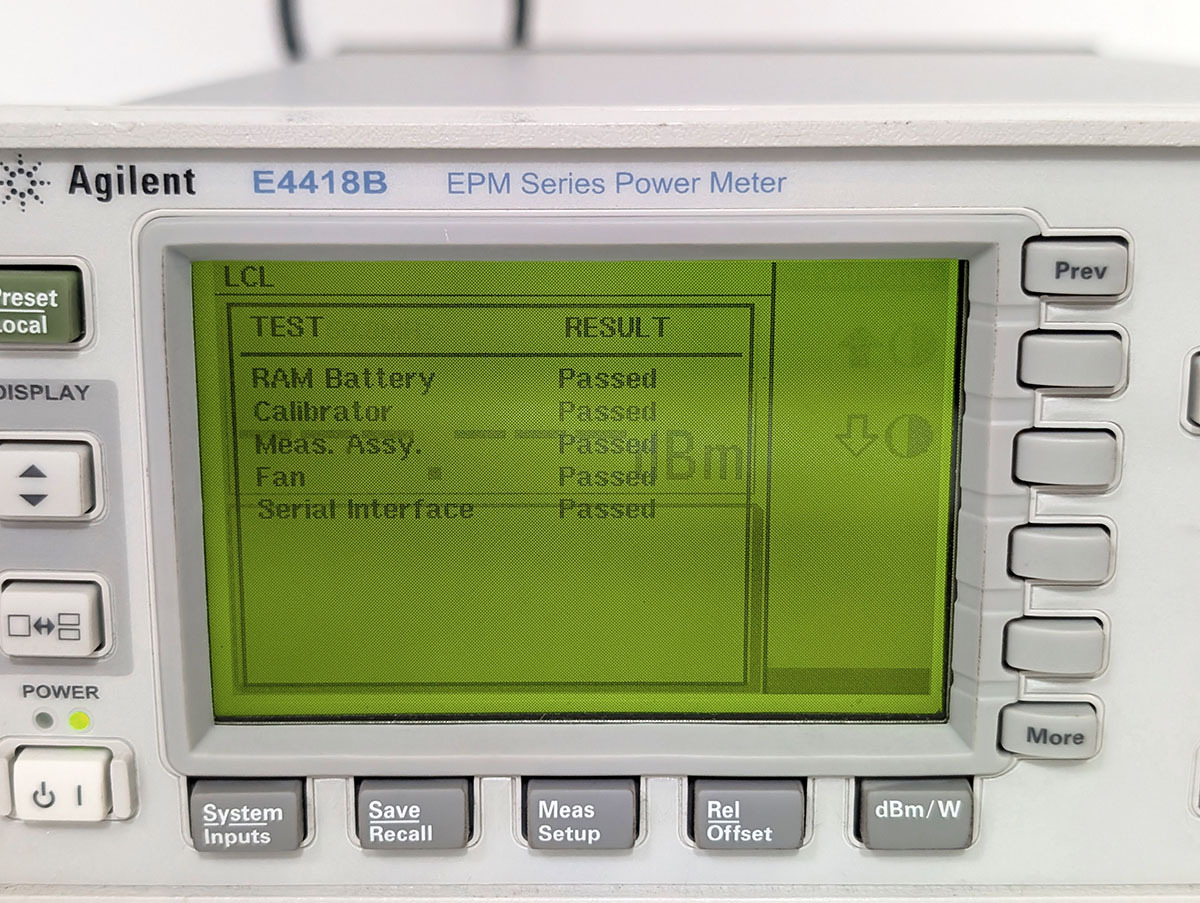

All system tests passed. Display and control interface function exactly as designed.

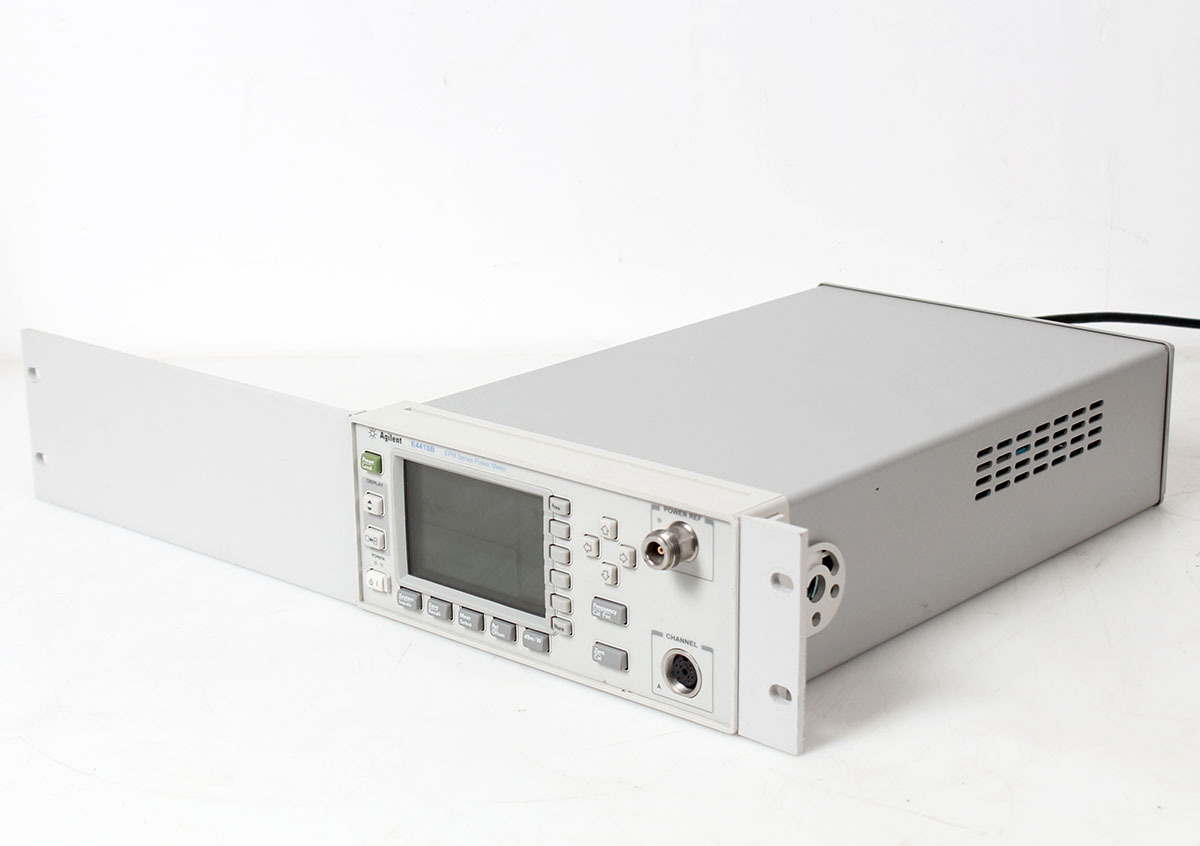

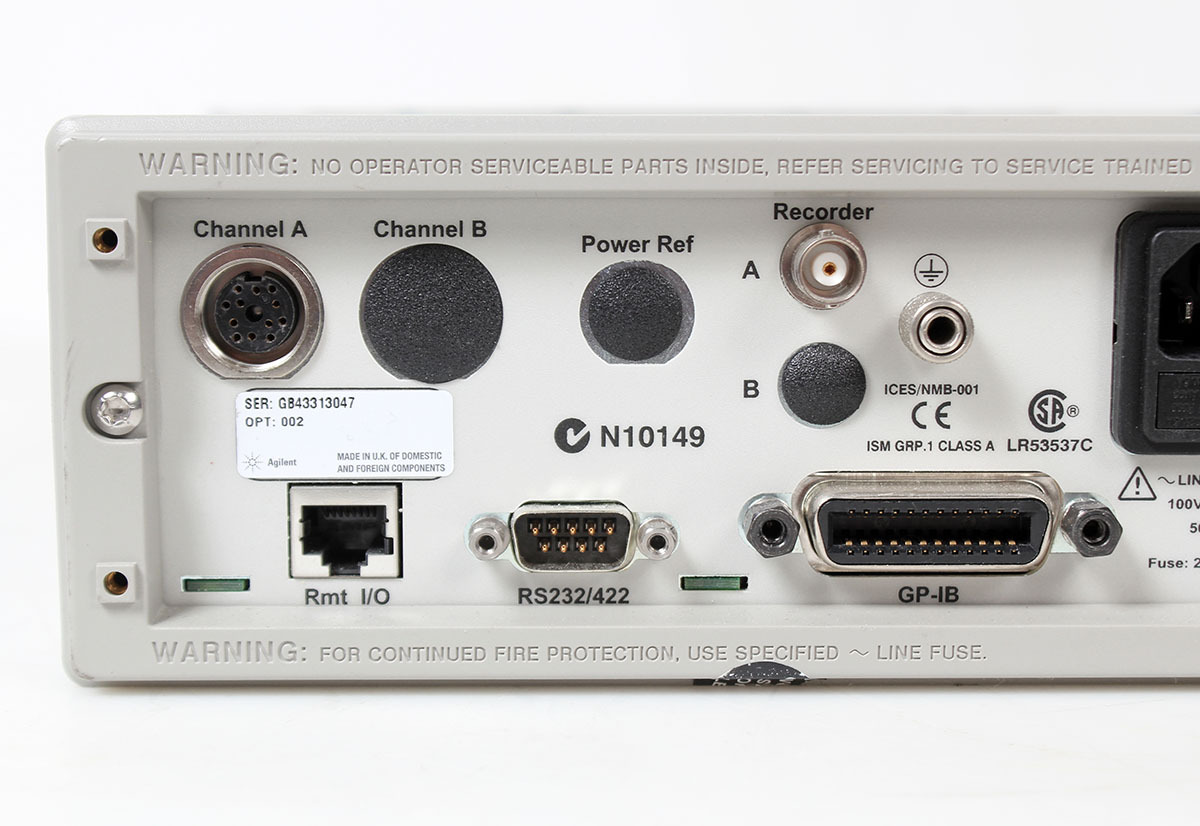

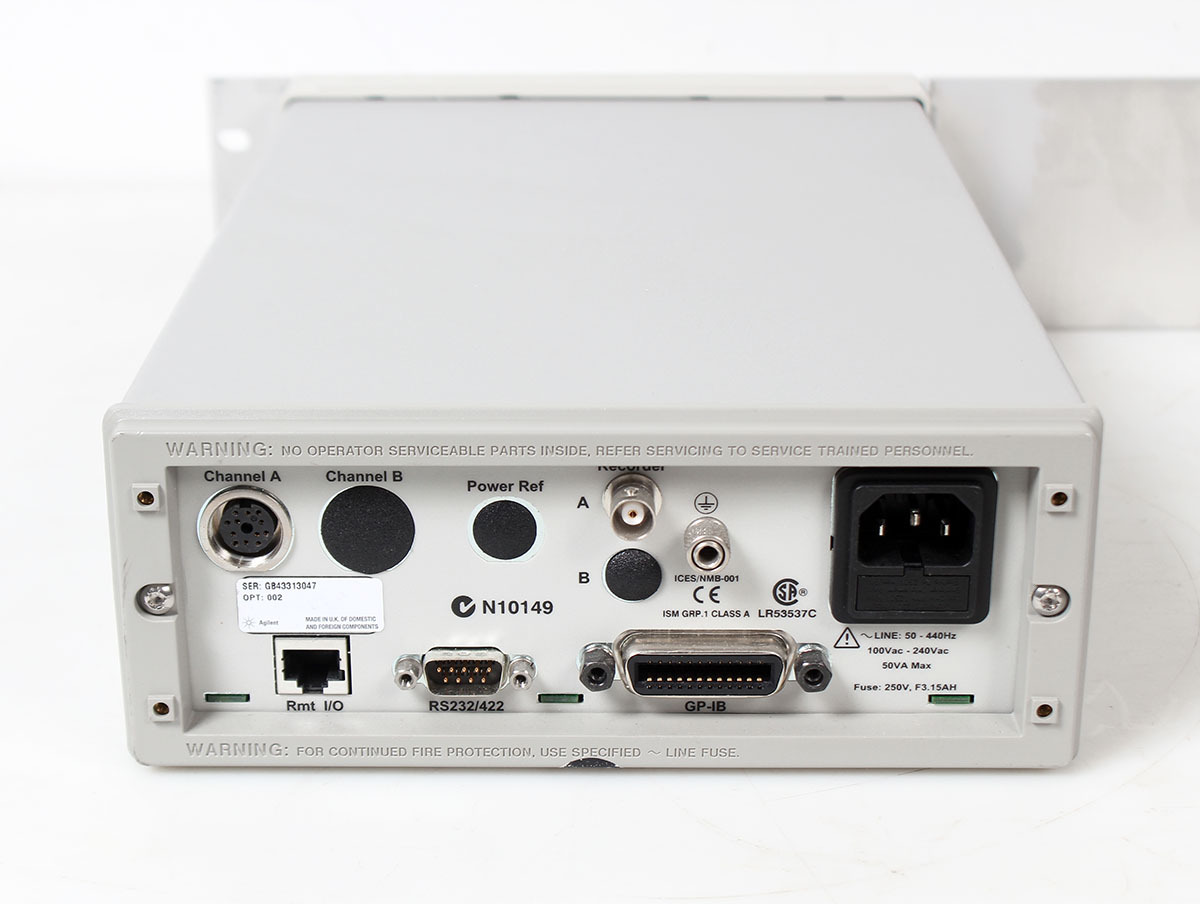

Comes as shown with power cord, Option 908 (Rackmount kit) and installed Option 002 (Supplies parallel rear panel sensor input(s). The power reference oscillator output is on the front panel.)

Hassle-Free Warranty



Manufacturer Description

Keysight / Agilent E4418B RF Power Meter, Programmable

The E4418B is a high-performance, single-channel, programmable power meter compatible with the 8480 series and the E-series power sensors (except the E9320A family). Depending upon which sensor is used, the E4418B can measure from -70 dBm to +44 dBm at frequencies from 100 kHz to 110 GHz.

Features:

  • Frequency Range: 9 kHz to 110 GHz (sensor dependent)
  • Power range: -70 dBm to +44 dBm (100 pW to 25 W) sensor dependent
  • Resolution: to 0.001 dB
  • Input capable offset
  • Ten store/recall registers
  • Accuracy: ±0.5% watt mode; ±0.02 dB dBm mode
  • Internal 50 MHz, 1.0 mW power reference
  • Backlit LCD Display
  • GPIB & RS-232/442 interfaces
  • Recorder output
  • Automatic selection 85-264 Vac; 50-440 Hz operation
  • Weight: 9 lb; Size: 89 mm (3.5 in)H x 213 mm (8.5 in)W x 348 mm (13.7 in)D
