Penta/KB Electronics Variable DC Speed SCR Motor Control, 115/230VAC, KBMD-240D

$140.00

Clean and in good condition. Removed from a premiere DOE facility during an equipment upgrade.

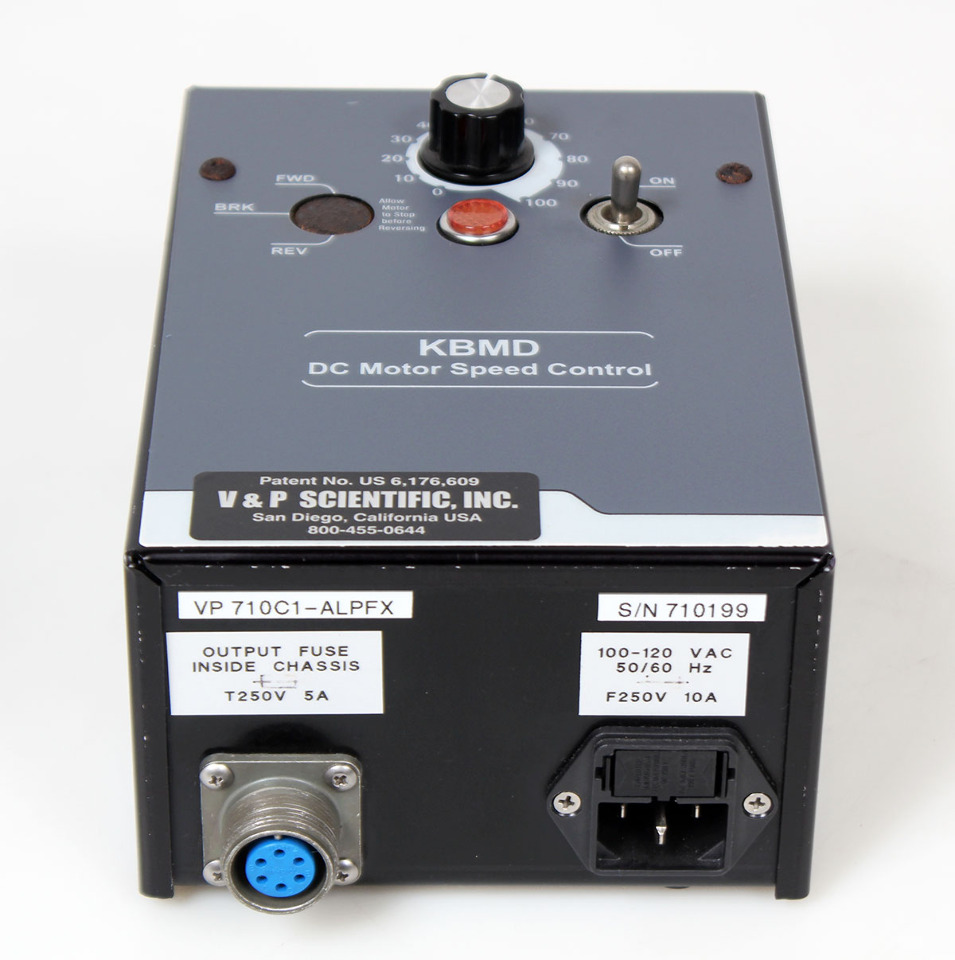

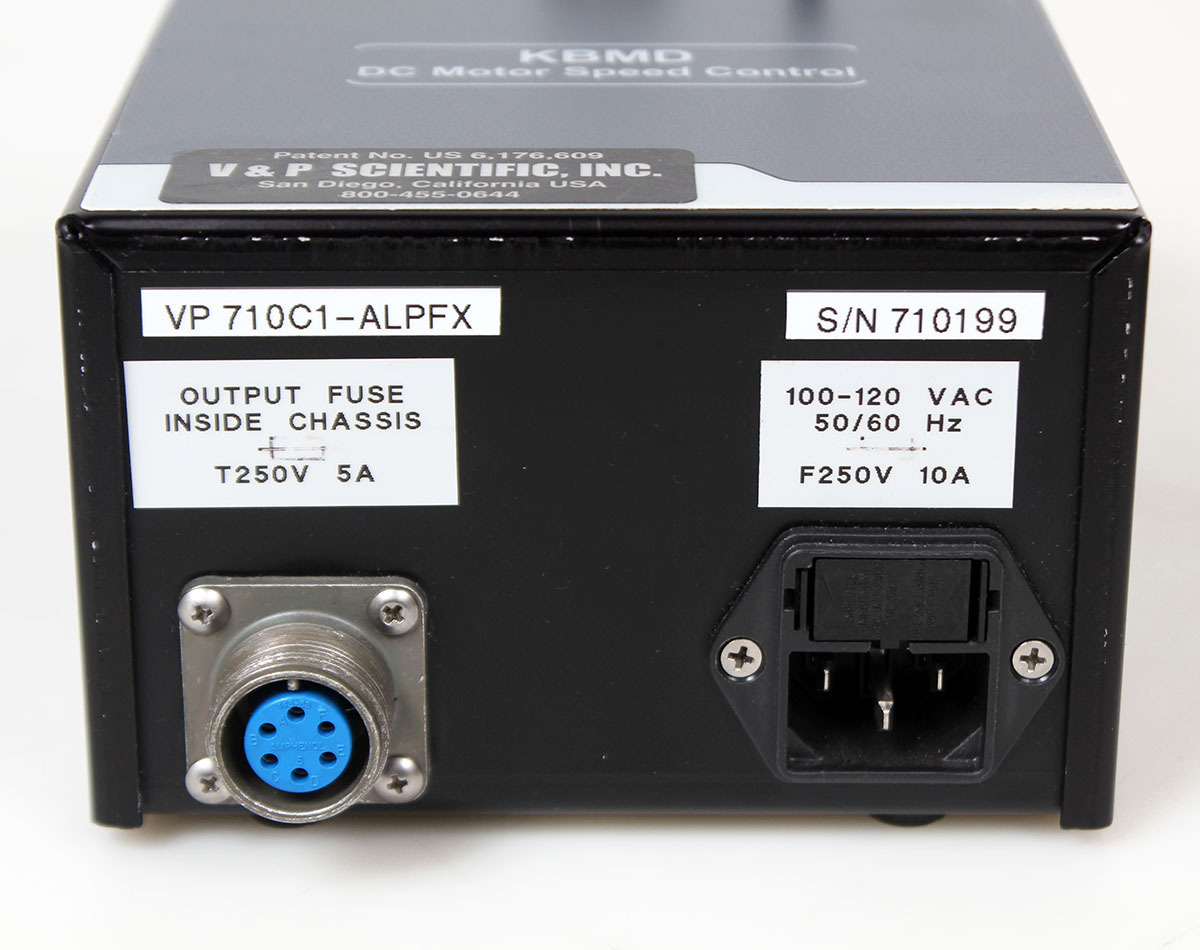

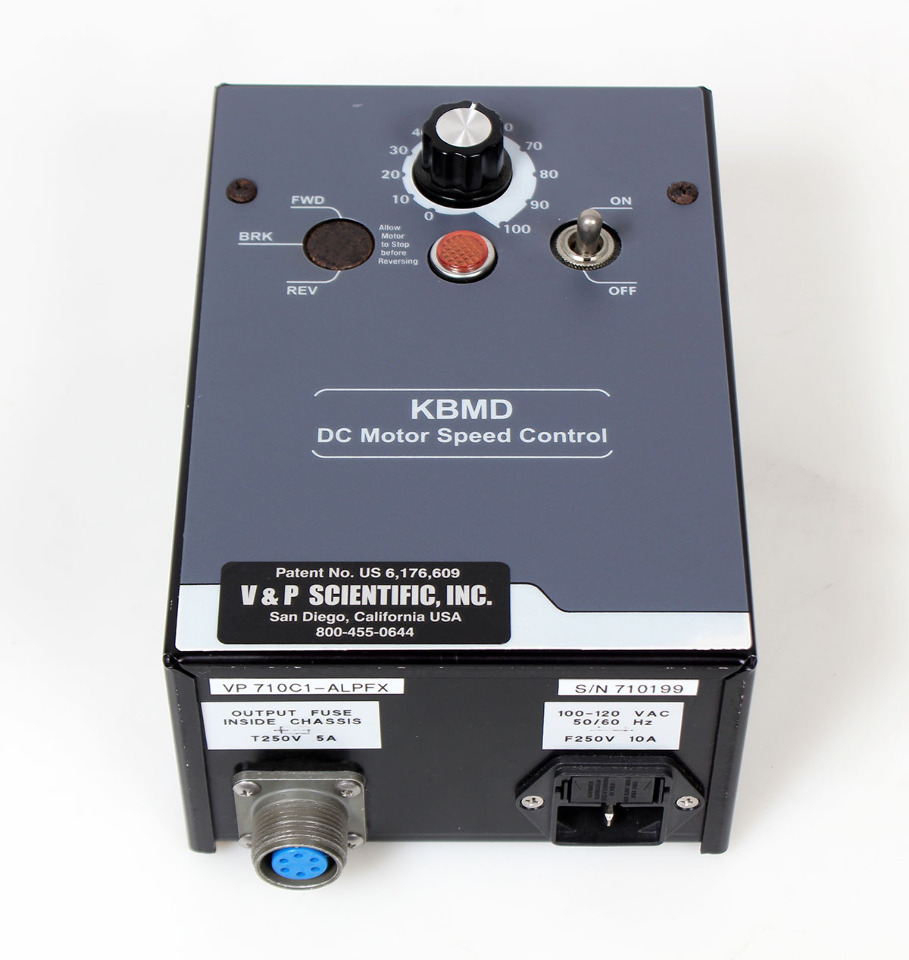

Comes as shown with power cord.

Hassle-Free Warranty




Product Details

The KBMD is a versatile NEMA 1 enclosed DC motor speed control, designed for 115/230 VAC inputs to deliver 0-90/180VDC, powering motors from 1/100 to 2 HP. It uses KB Electronics's Plug-in Horsepower Resistor system, with key features including a 50:1 speed range, 1% load regulation, and adjustable trimpots for min/max speed, acceleration, and IR compensation.

Features

  • Plug-in Horsepower Resistor®: Required to calibrate the drive to the specific motor HP.
  • Adjustment Trimpots: Min Speed, Max Speed, Acceleration, Deceleration, IR Compensation, Current Limit.
  • Options: Forward-Brake-Reverse Switch Kit, Auxiliary Heatsink (for higher HP).

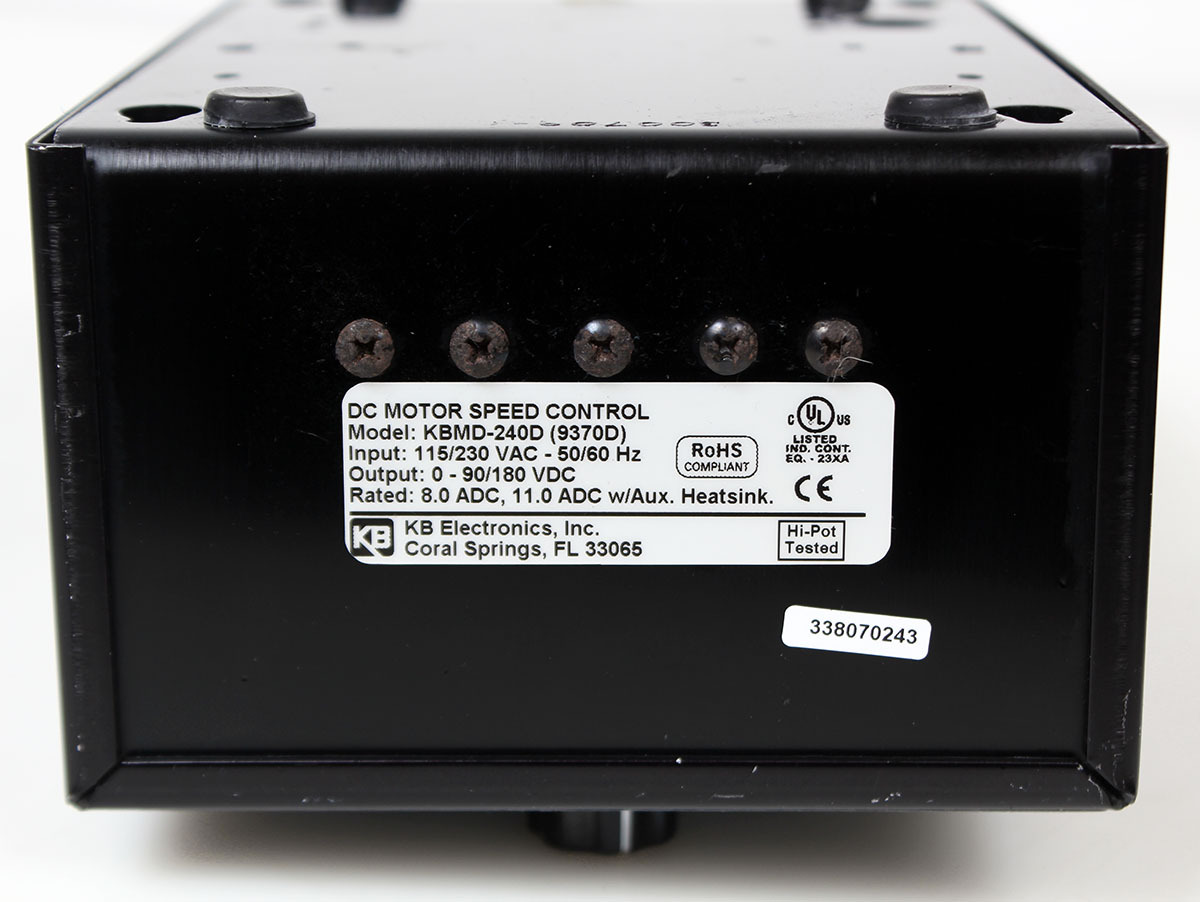

Key Technical Specifications (KBMD-240):
  • Input Voltage: 115/230 VAC, 50/60 Hz
  • Output Voltage: 0-90 VDC (@ 115VAC input) or 0-180 VDC (@ 230VAC input)
  • Horsepower (HP) Range: 1/100 to 3/4 HP (115V), 1/50 to 1.5 HP (230V)
  • HP with Aux Heatsink: Up to 1 HP (115V), 2 HP (230V)
  • Max DC Amps: 8.0 A (without heatsink), 11.0 A (with heatsink)
  • Speed Range: 50:1
  • Load Regulation: 1%
  • Form Factor: NEMA 1 enclosure with 5K ohm speed potentiometer
  • Protection: MOV transient protection and Auto Inhibit
  • Dimensions/Weight: ~7 x 6 x 4 in; 2.61 - 3 lbs
