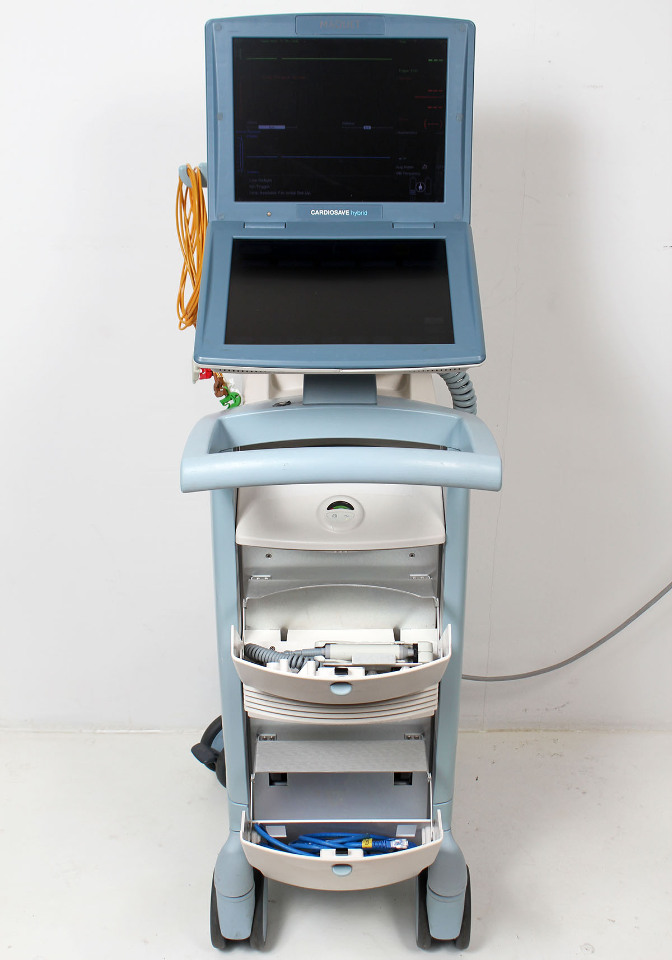

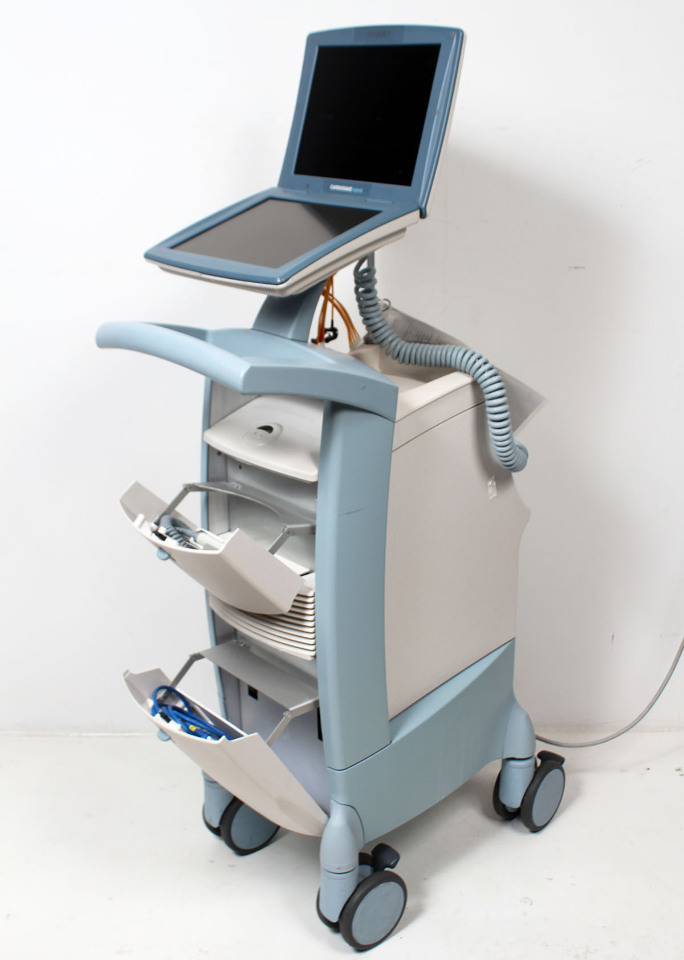

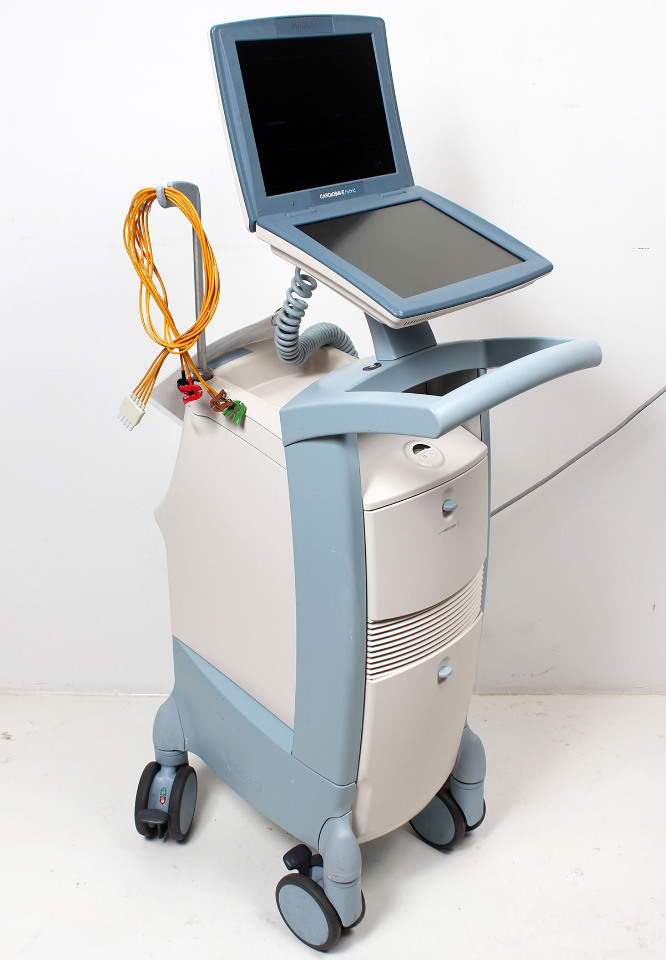

Clean and in excellent cosmetic condition as shown in the photographs. Pulled from a premiere state facility during a department upgrade, this system was part of a regular maintenance program. All operations we were able to test appear fully functional except for one of the 2 batteries, which appears to need replacemnent.
Components we were able to test:
Power supply - Pass
Power up - Pass
Computer system start - Pass
Initial Self Test - Pass
Screen Visibity/Touch response - Pass/Pass
Menu Operations - Pass
Sensors - Appear operational

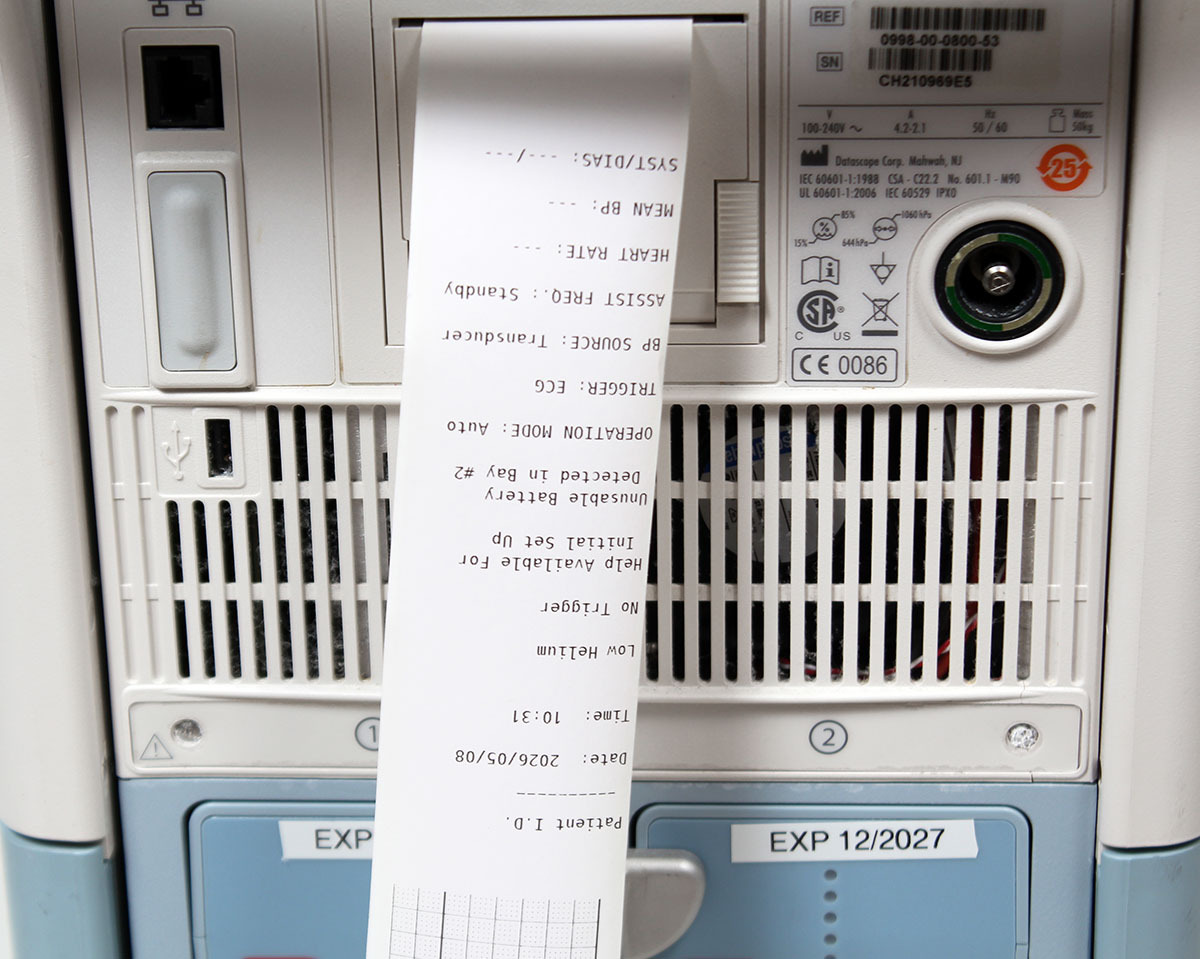

Printer - Pass
Batteries - 1 Pass/1 Fail

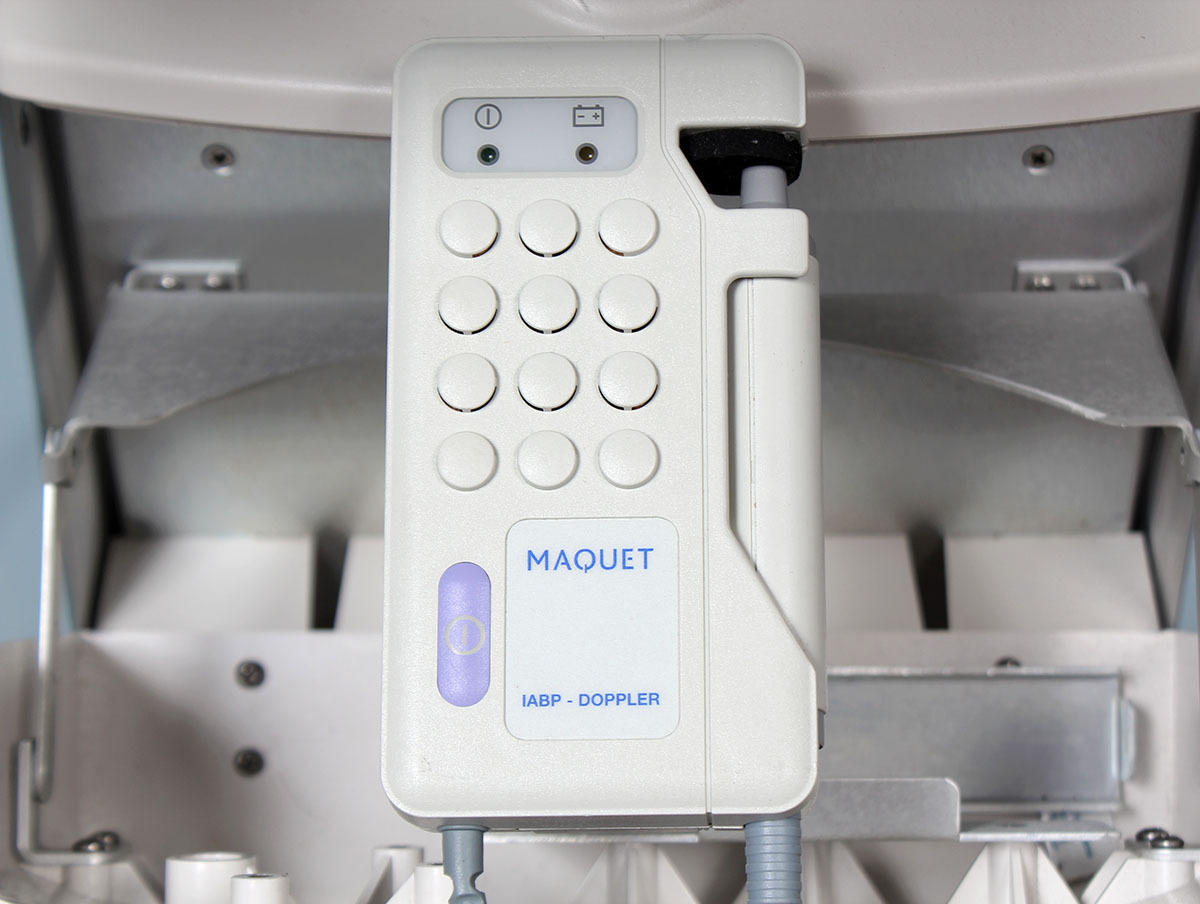

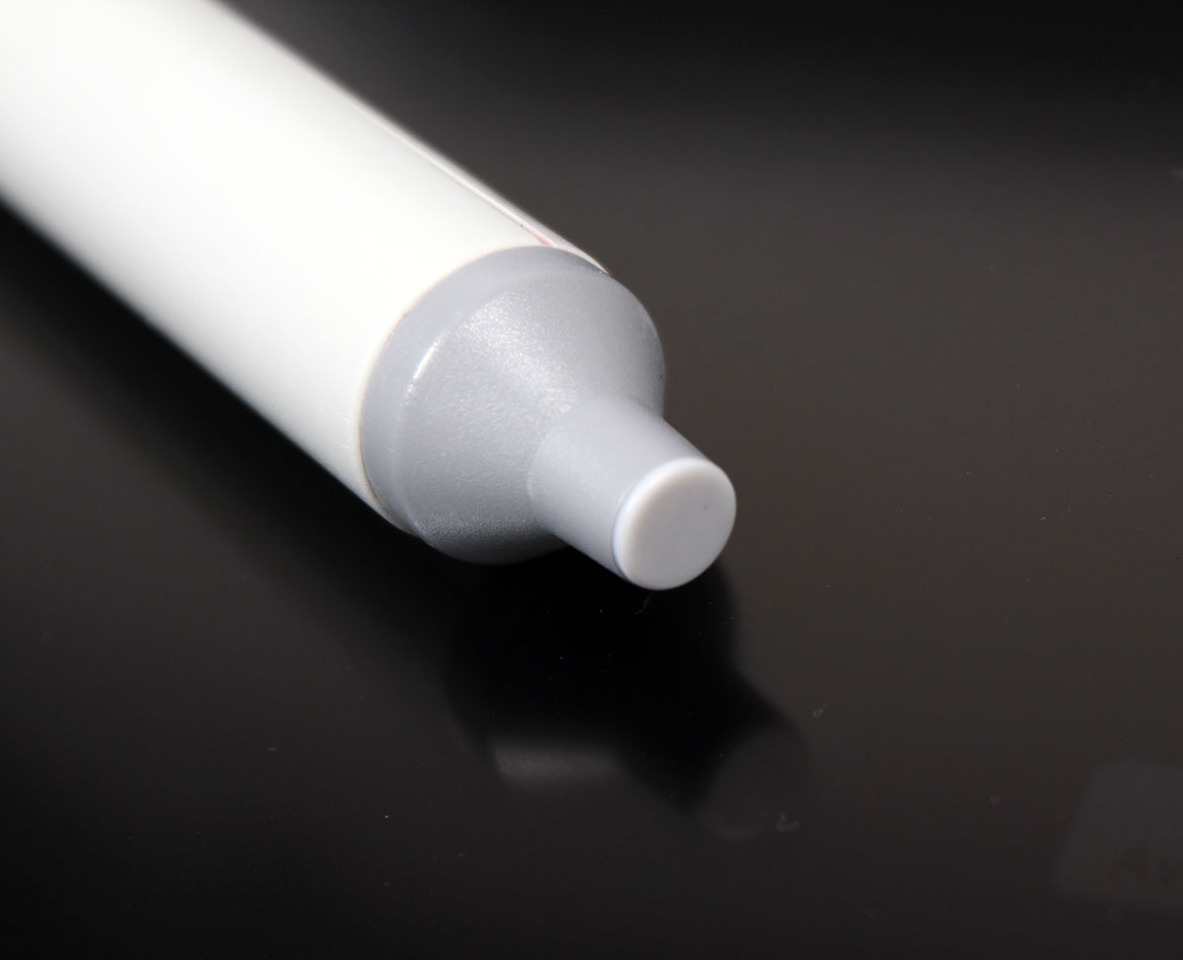

Doppler Module - Pass
ECG Leads - Pass

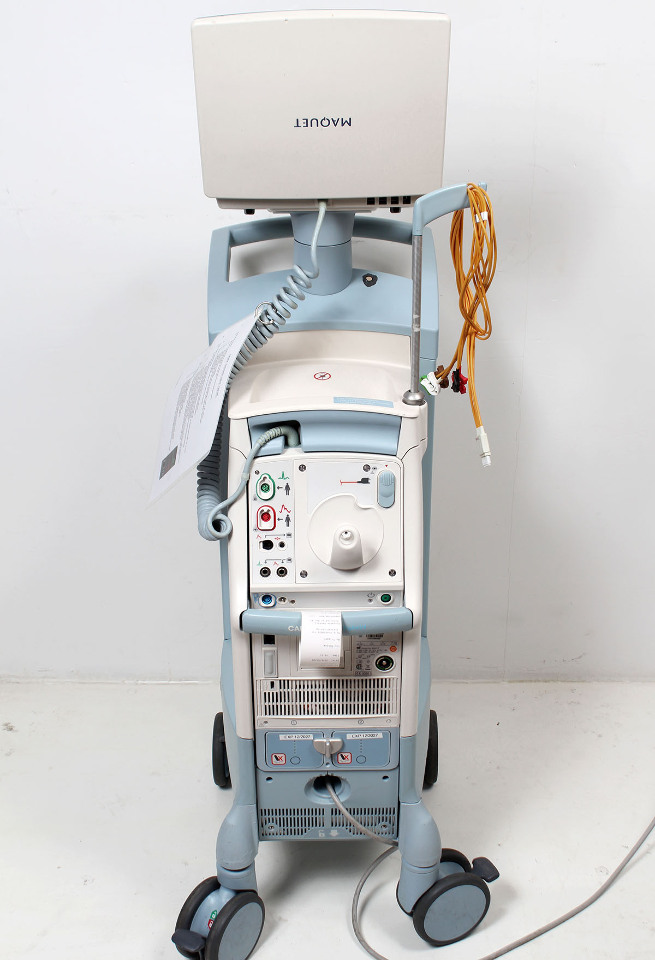

Comes as shown with Doppler unit, retractible power cable, network cable and ECG Leads.
Manufacturer Description

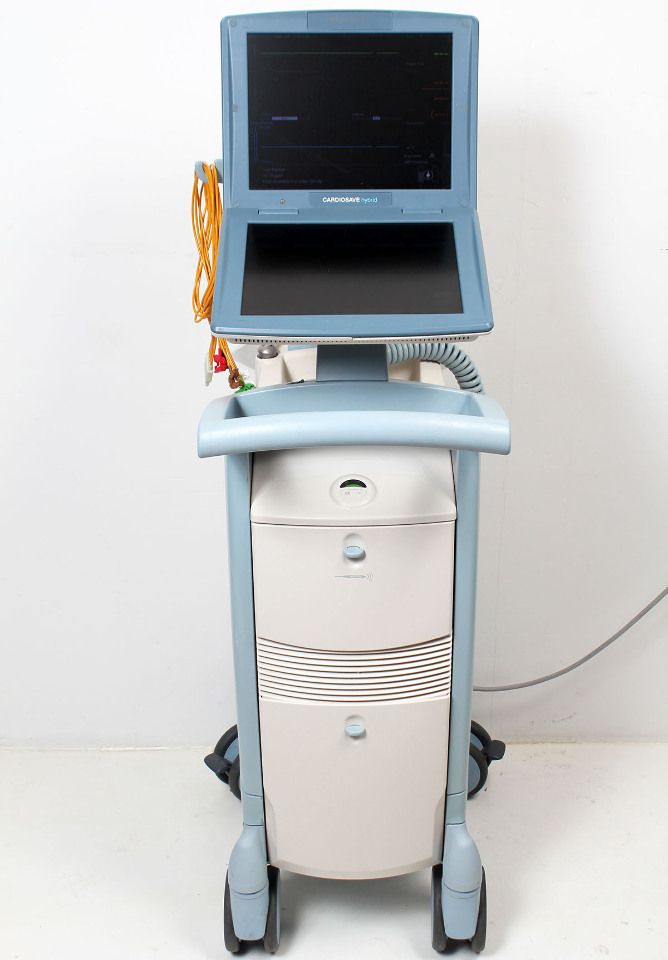

The Maquet Cardiosave Hybrid represents the pinnacle of Intra-Aortic Balloon Pump (IABP) technology. Engineered for high-acuity environments, the Hybrid model provides a seamless transition from a stationary hospital console to a portable transport unit. Featuring a large, high-resolution touchscreen interface and advanced algorithms, the Cardiosave Hybrid offers superior pacer detection and sophisticated lead fault management. Its redesigned pneumatic system delivers faster balloon inflation and deflation speeds, optimizing diastolic augmentation even in tachycardic patients. This system is significantly quieter and more intuitive than previous generations, making it the preferred choice for modern Cath Labs and Cardiac ICUs.
Technical Specifications

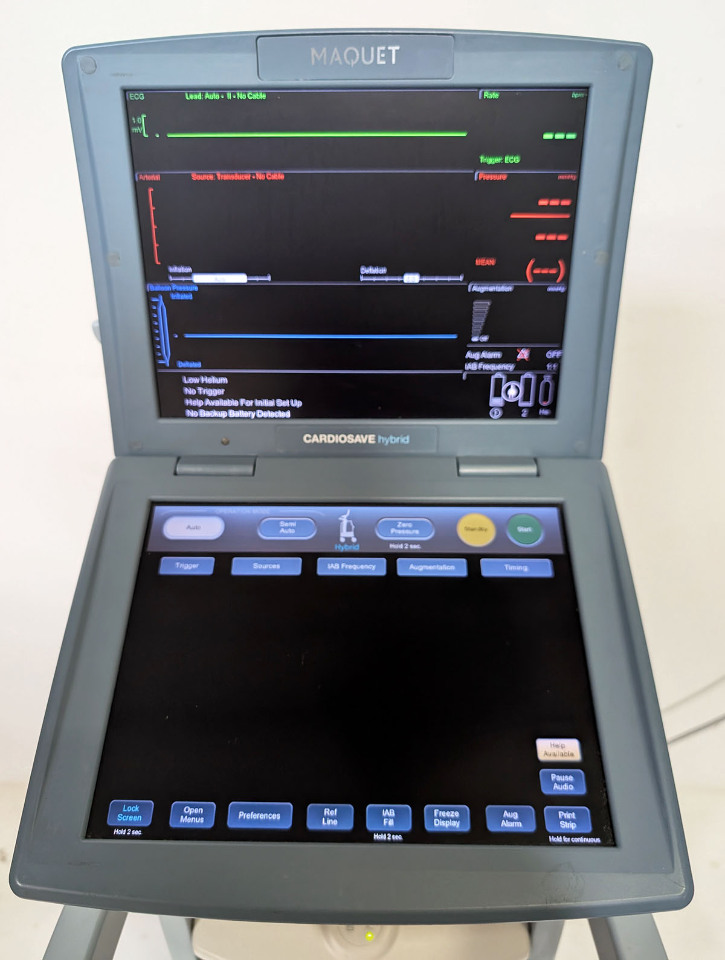

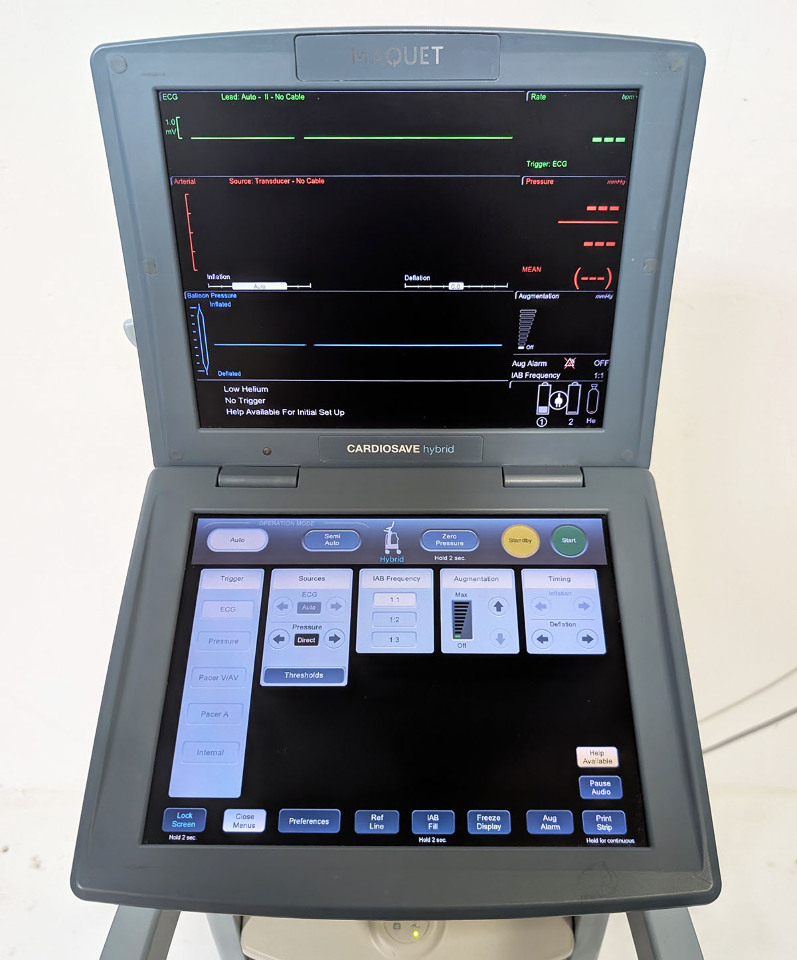

- Display: Dual 12.1-inch LCD Touchscreen and Waveform monitor (Backlit)
- Pneumatic Performance: Enhanced speed for superior support at high heart rates (up to 16% faster than CS300)
- Triggering Modes: ECG (Pattern, Peak, AFIB), Arterial Pressure, Internal, and V-Pace
- Power System: AC Mains with two hot-swappable Lithium-Ion batteries
- Dimensions (Open): 53" H x 22" W x 27" D
- Weight: Approx. 114 lbs (Console, Cart, Helium Tank, and Batteries)
- Operating Altitude: Automatic compensation up to 12,000 feet

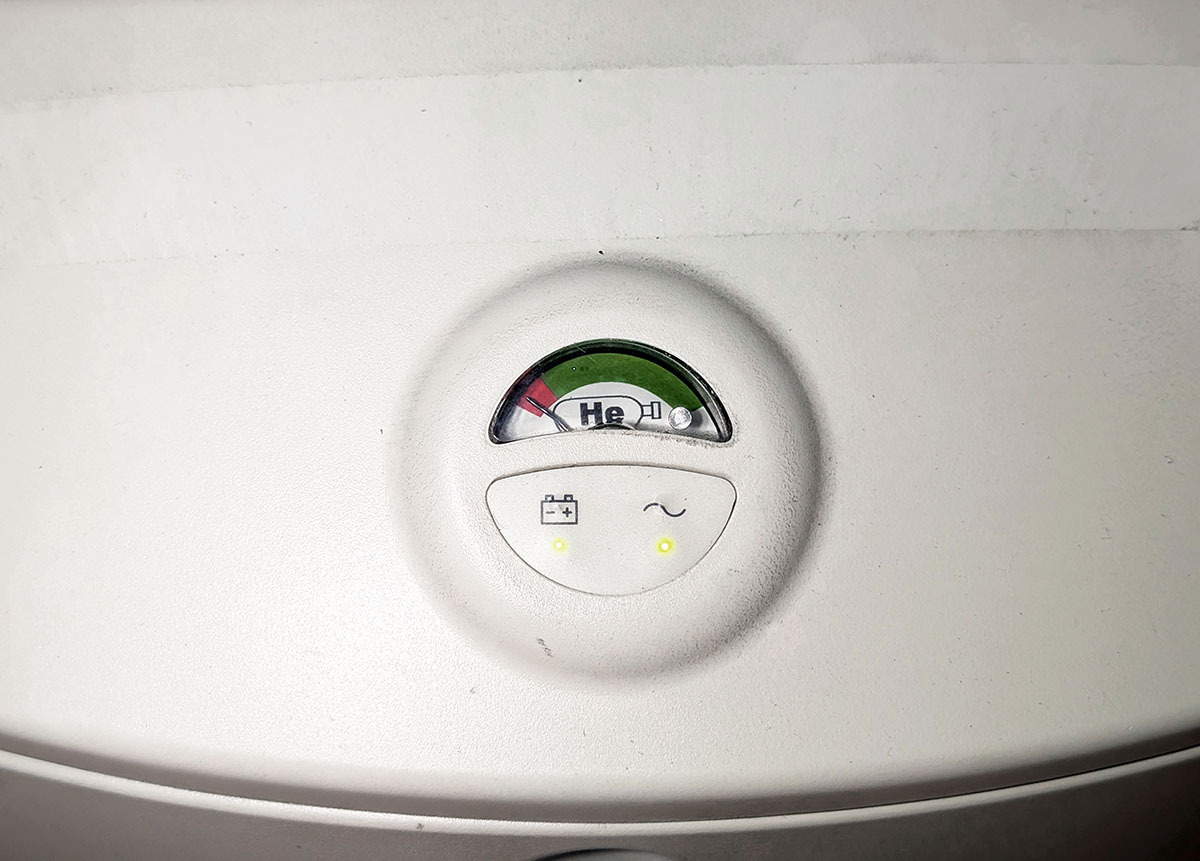

- Value-Add: Features an "out-of-sight" internal helium reservoir and a self-retracting power cord to eliminate tripping hazards in crowded clinical spaces.
System Compatibility
The Cardiosave Hybrid is fully compatible with all Maquet/Getinge IAB catheters, including:
- Fiber-Optic Catheters: Sensation and Sensation Plus (7Fr, 7.5Fr, and 8Fr)
- Conventional Catheters: Linear, Mega, and Plus series
- Interface: Color-coded and keyed connections to prevent setup errors
Applications
Designed for critical hemodynamic support across the continuum of care:
- Cardiogenic Shock: Rapid stabilization of hemodynamically unstable patients.
- High-Risk PCI: Prophylactic support during complex interventional procedures.
- Post-Cardiac Surgery: Support for patients weaning from cardiopulmonary bypass or experiencing low cardiac output syndrome.
- Inter-Hospital Transport: Designed for easy conversion from cart-based use to ambulance/air transport without interrupting therapy.
