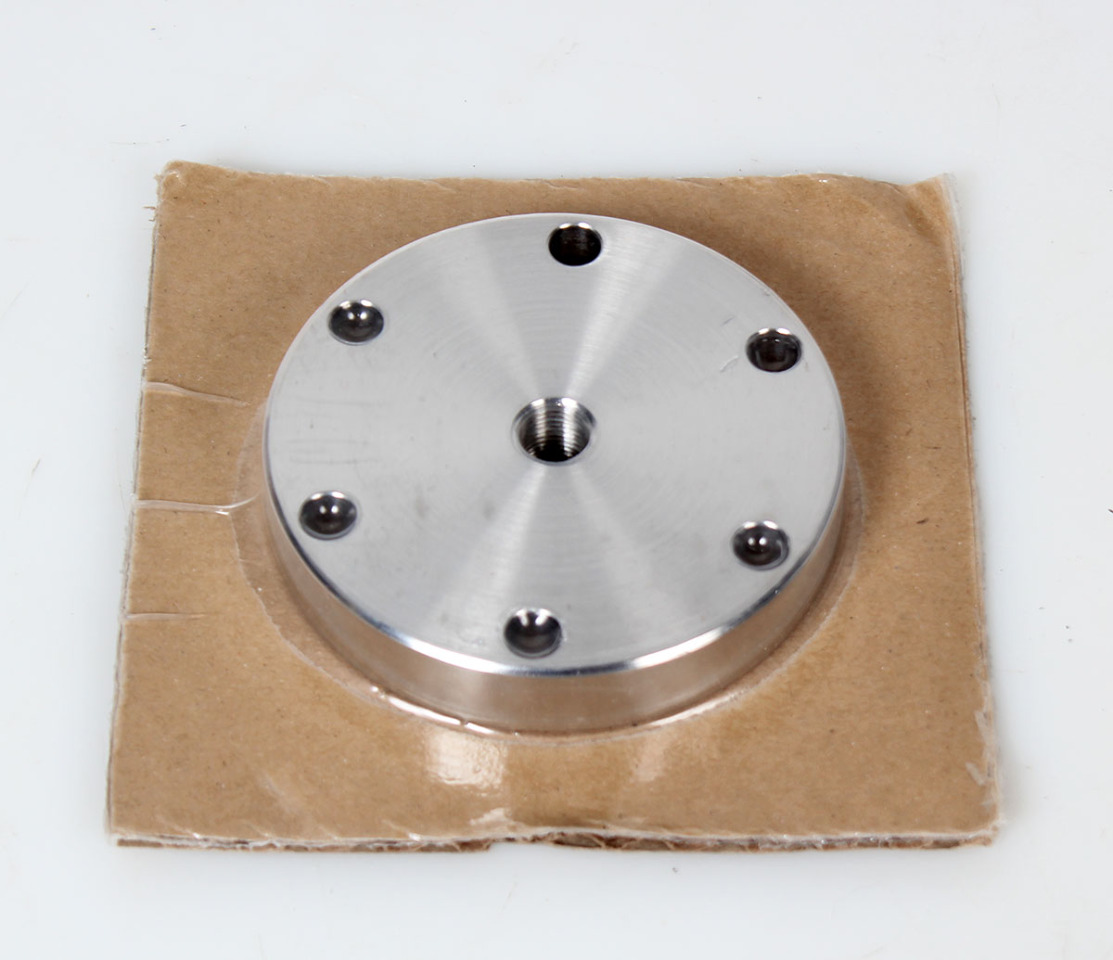

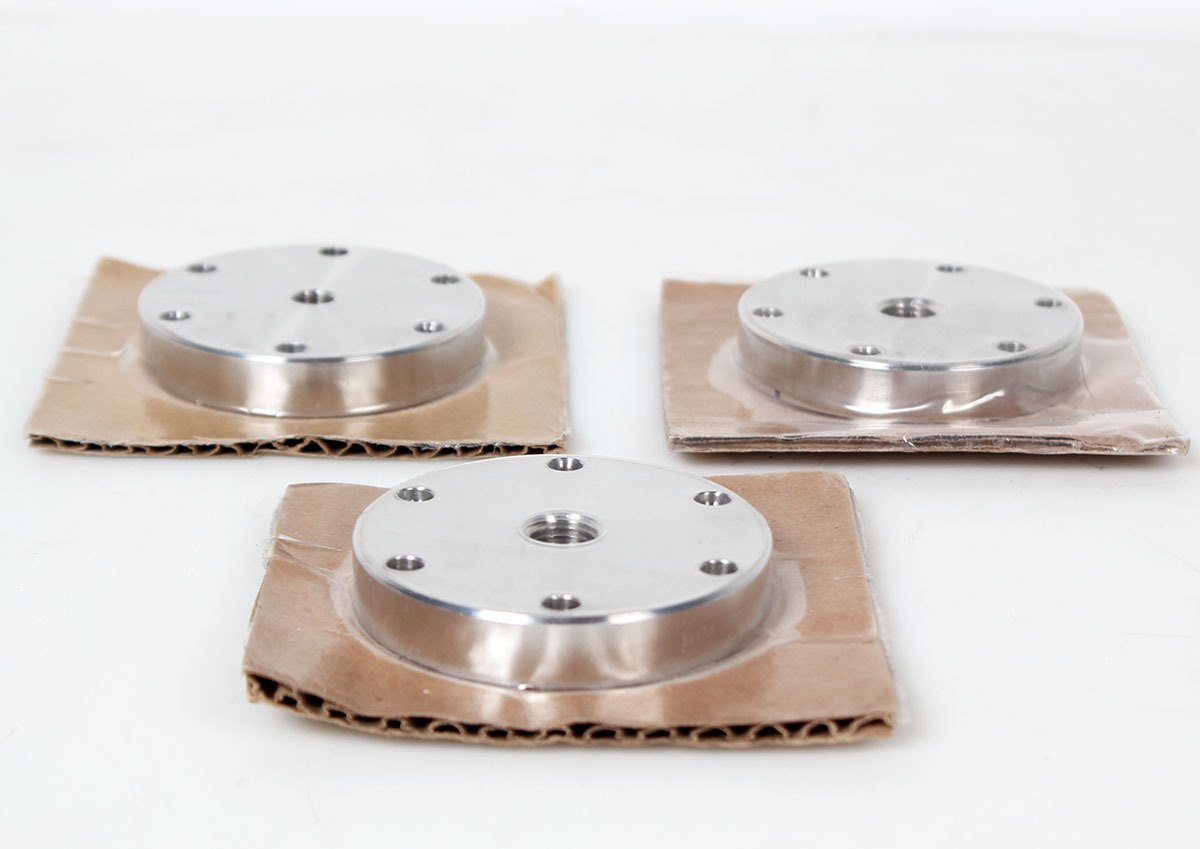

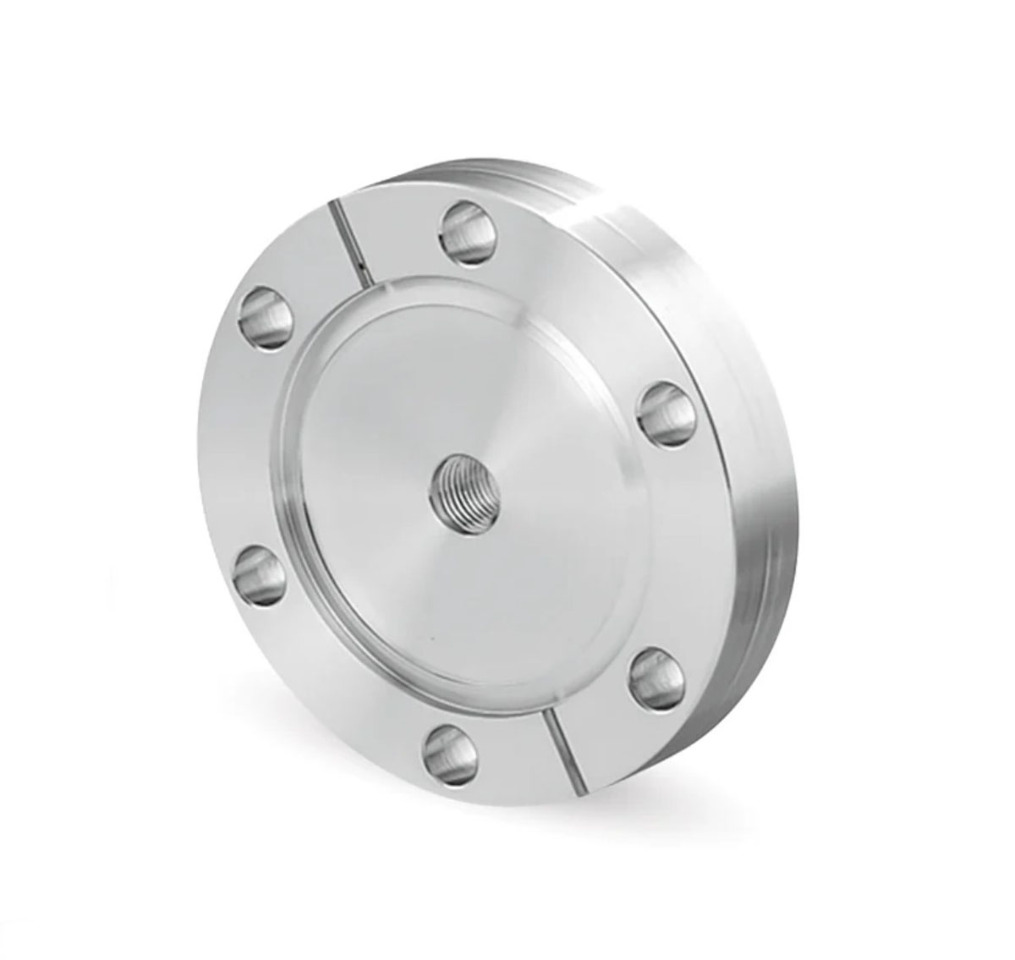

MDC Stainless UHV Vacuum CF Conflat Flange 2.75" DN35 to 1/8" Female NPT Adapter
MDC Stainless UHV Vacuum CF Conflat Flange 2.75" DN35 to 1/8" Female NPT AdapterMDC Stainless UHV Vacuum CF Conflat Flange 2.75" DN35 to 1/8" Female NPT AdapterMDC Stainless UHV Vacuum CF Conflat Flange 2.75" DN35 to 1/8" Female NPT AdapterMDC Stainless UHV Vacuum CF Conflat Flange 2.75" DN35 to 1/8" Female NPT Adapter

MDC Stainless UHV Vacuum CF Conflat Flange 2.75" DN35 to 1/8" Female NPT Adapter

$40.00

New, sealed in factory packaging.

Hassle-free warranty.


Key Features

  • High vacuum rated to 1x10⁻⁸ Torr (1.33x10⁻⁶ Pa)
  • Temperature rated to 200°C maximum
  • Female NPT to Conflat® flange interface
  • Use of Teflon® tape recommended for threaded joints
  • Symmetric, nonrotatable geometry ensures proper alignment
  • FKM elastomer O-rings for secure, reliable sealing
  • 300 series stainless steel construction
PART NUMBER REFERENCE FEMALE NPT SIZE FLANGE NOM. FLANGE O.D.

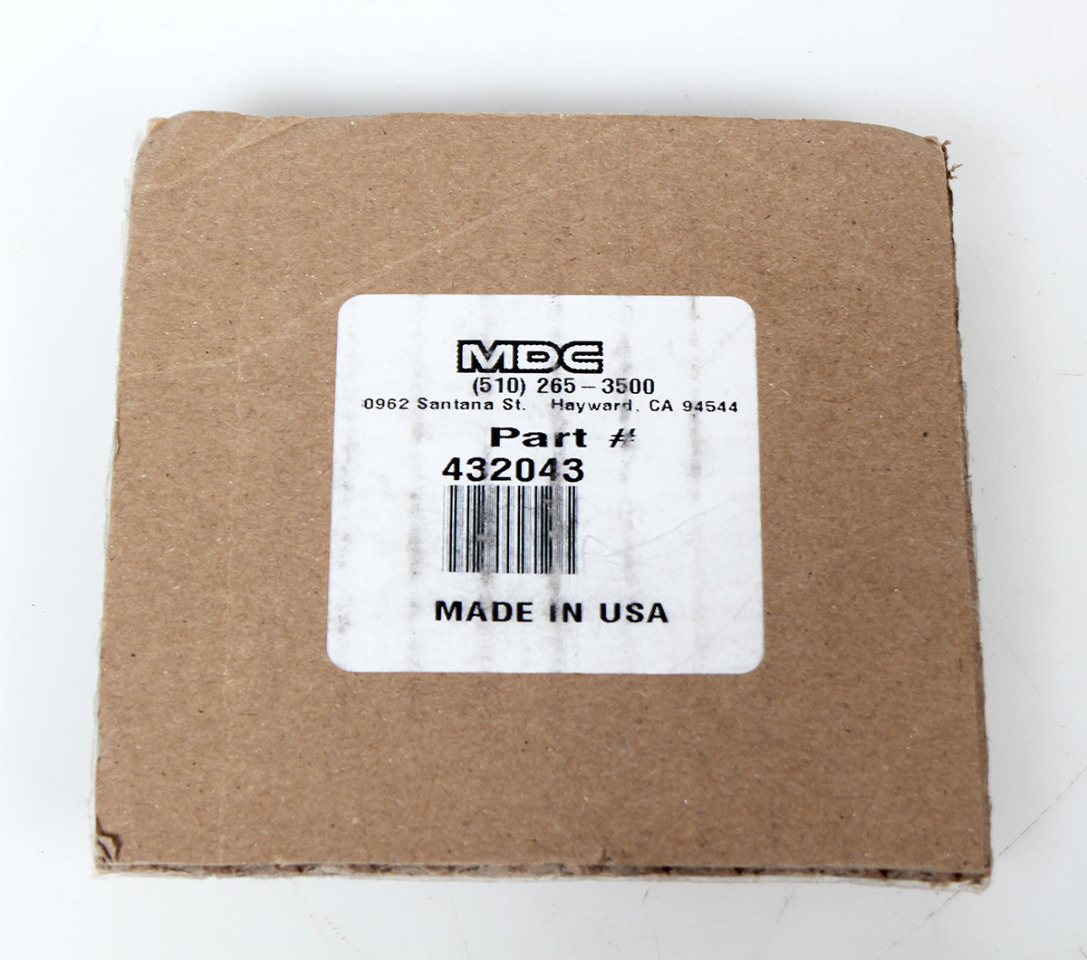

432043 1/8FPT-275 1/8 2-3/4 2.73
