Beautiful condition with extremely clean optics.
Hassle-free warranty
Manufacturer Description

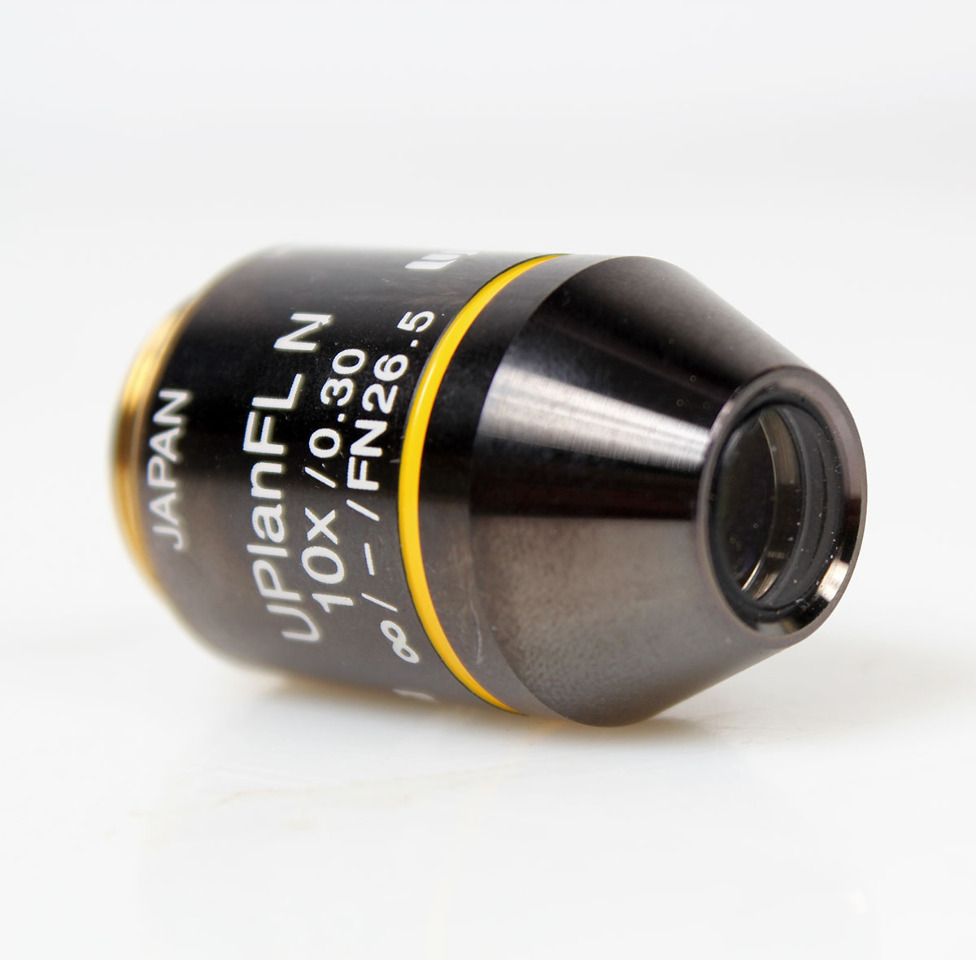

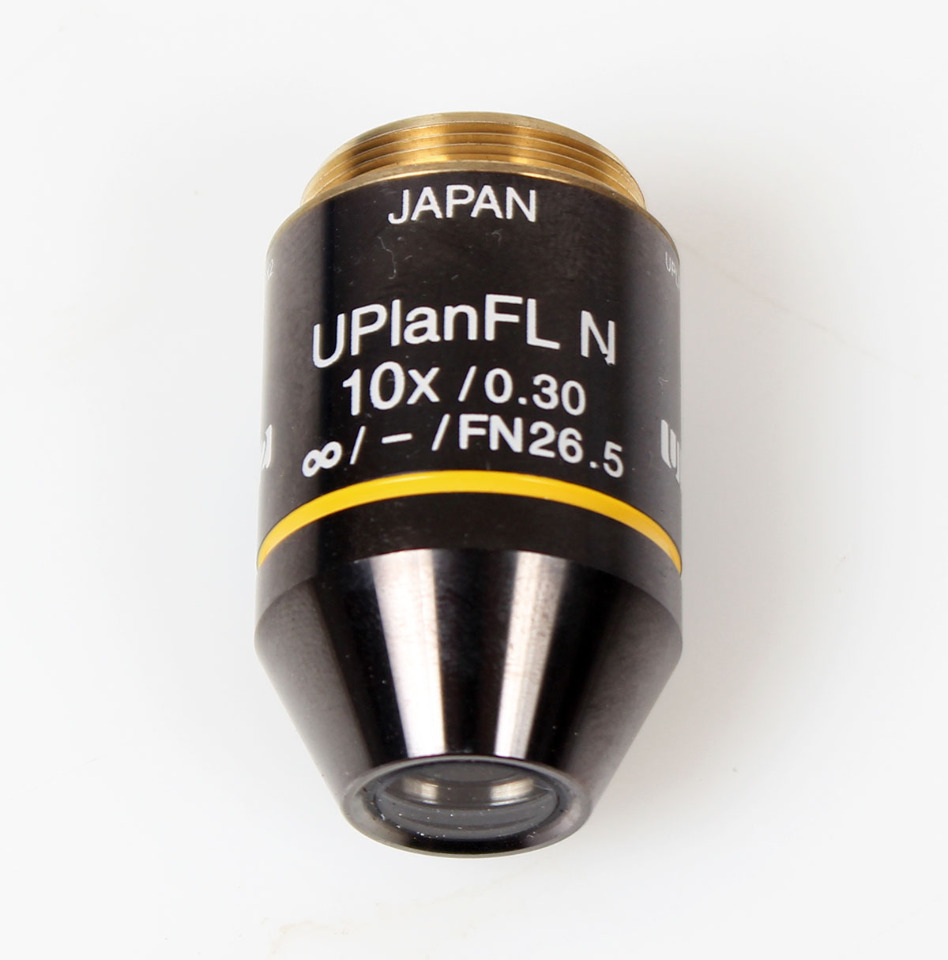

The Olympus UPlanFL N 10x is a high-performance Universal Plan Fluorite objective designed for the UIS2 optical system. It features advanced multi-coatings that provide exceptional flat-field images with high contrast and resolution from the UV to the near-infrared (NIR) spectrum. This "Semi-Apochromat" lens is highly versatile, making it the industry standard for research-grade brightfield, darkfield, DIC, and high-sensitivity fluorescence microscopy.
Technical Specifications
- Magnification: 10x
- Numerical Aperture (NA): 0.30
- Optical Correction: Plan Fluorite (Semi-Apochromat)
- Working Distance (WD): 10.0 mm
- Field Number (FN): 26.5 (Super Wide Field compatible)
- Correction: Infinity Corrected (∞)
- Cover Glass Thickness: — (Designed for use without cover glass or with universal slide prep)
- Mounting Thread: RMS Standard (20.32mm x 36 TPI)
- Parfocal Length: 45 mm
Compatibility & Applications
- Microscope Series: Fully compatible with Olympus BX series (BX40, BX41, BX51, BX53, BX61) and IX series inverted microscopes.
- Observation Methods: Ideal for Brightfield, Darkfield, Fluorescence, and Nomarski DIC.
- Specialty: High UV transmission makes this excellent for DAPI and other short-wavelength fluorophores.
- Brand: Olympus
- Condition: Used
- Notes: Excellent condition. Clean optics. Hassle-free warranty
- SKU: ST0038991
- Inspected By: 2
- Item ID: 38991
- Model: UPlanFL N 10x/0.30
