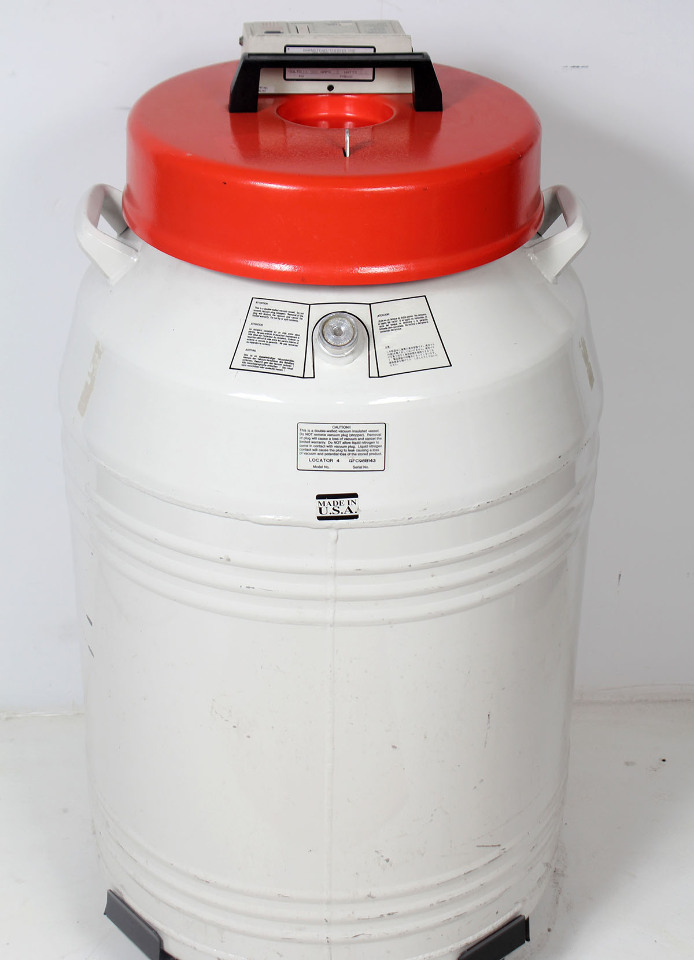

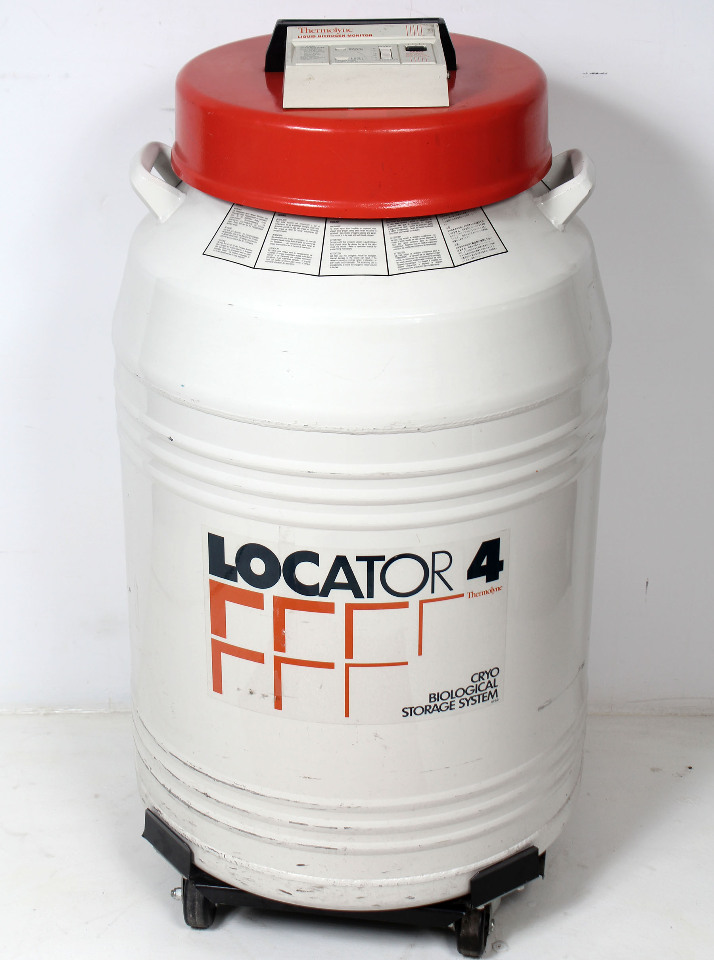

Thermolyne Locator 4 LN2 110L Cryostorage Liquid Nitrogen Dewar

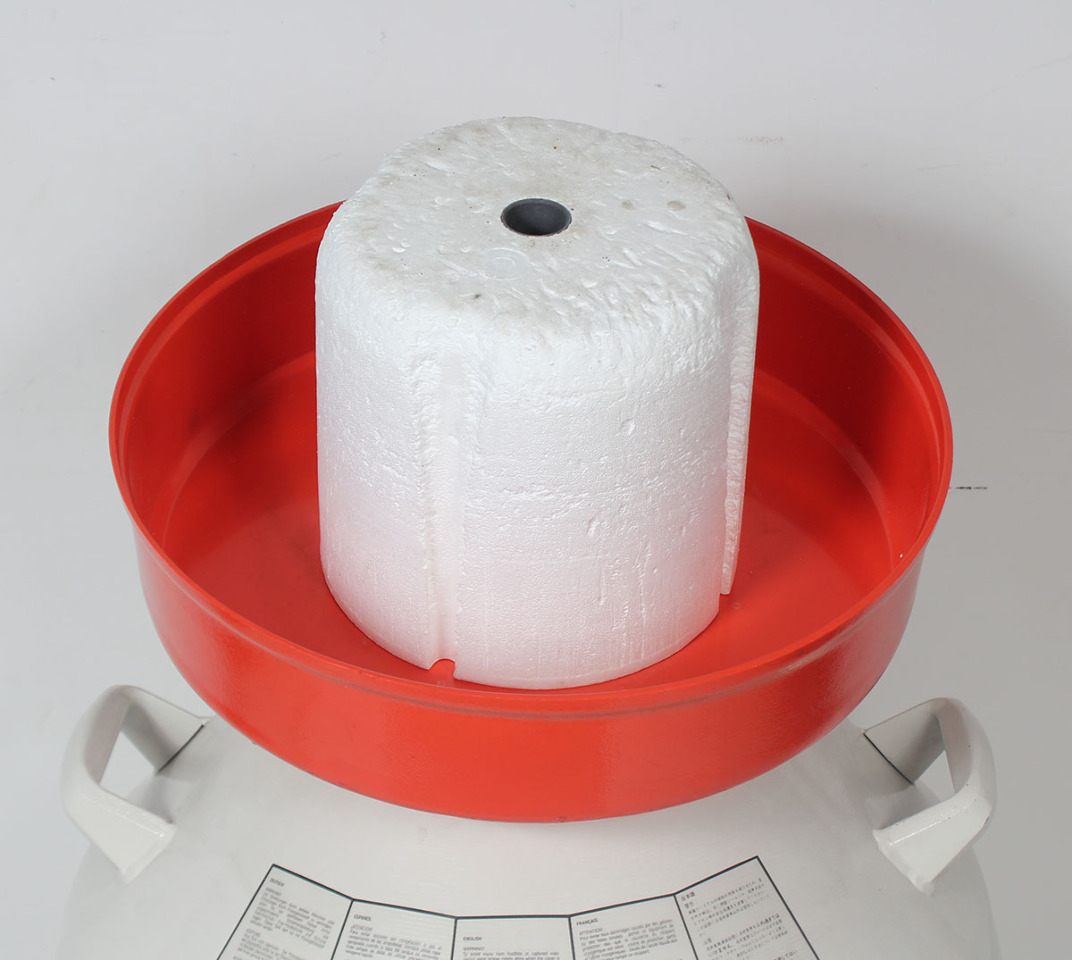

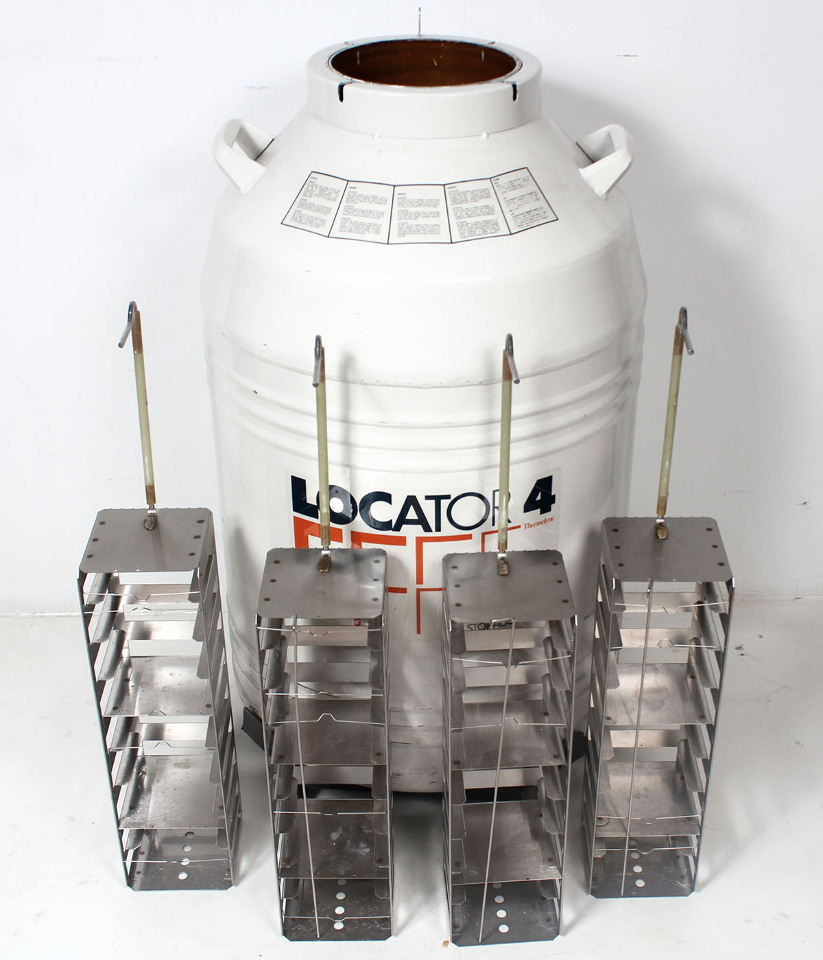

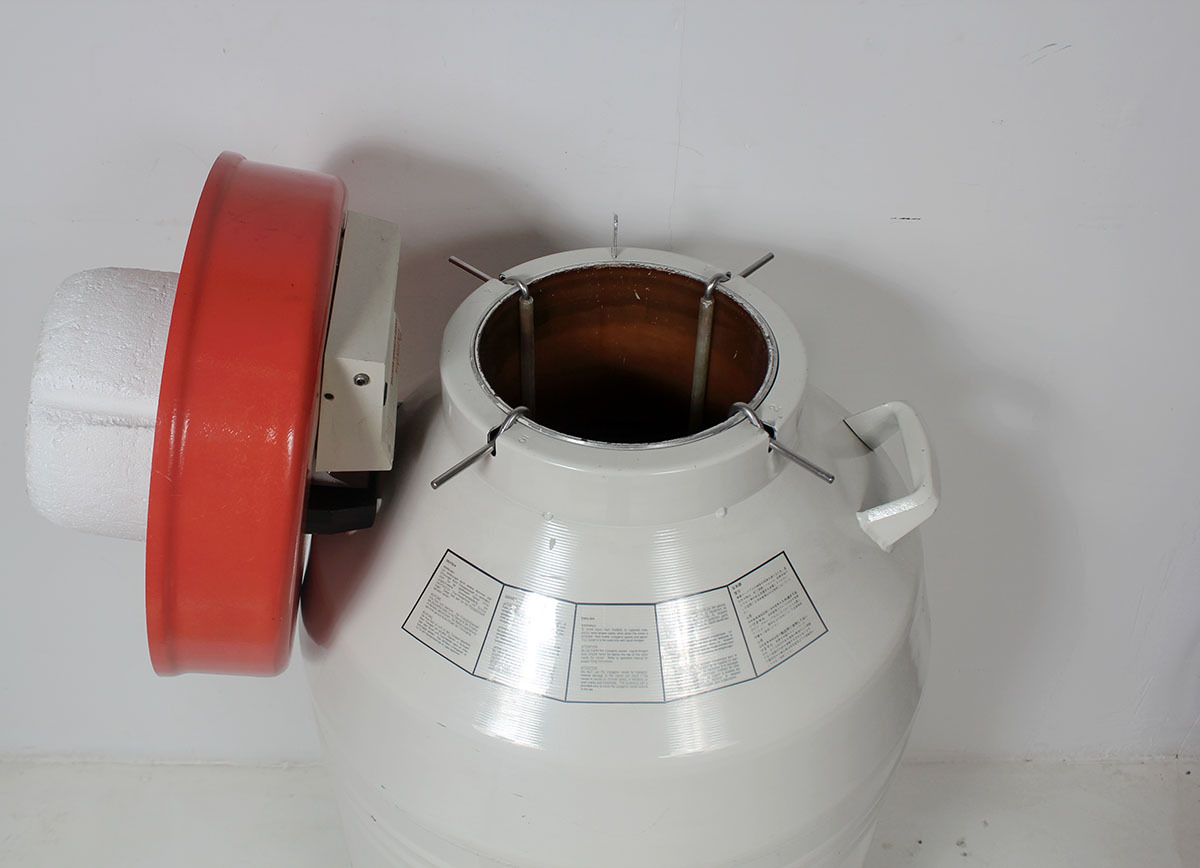

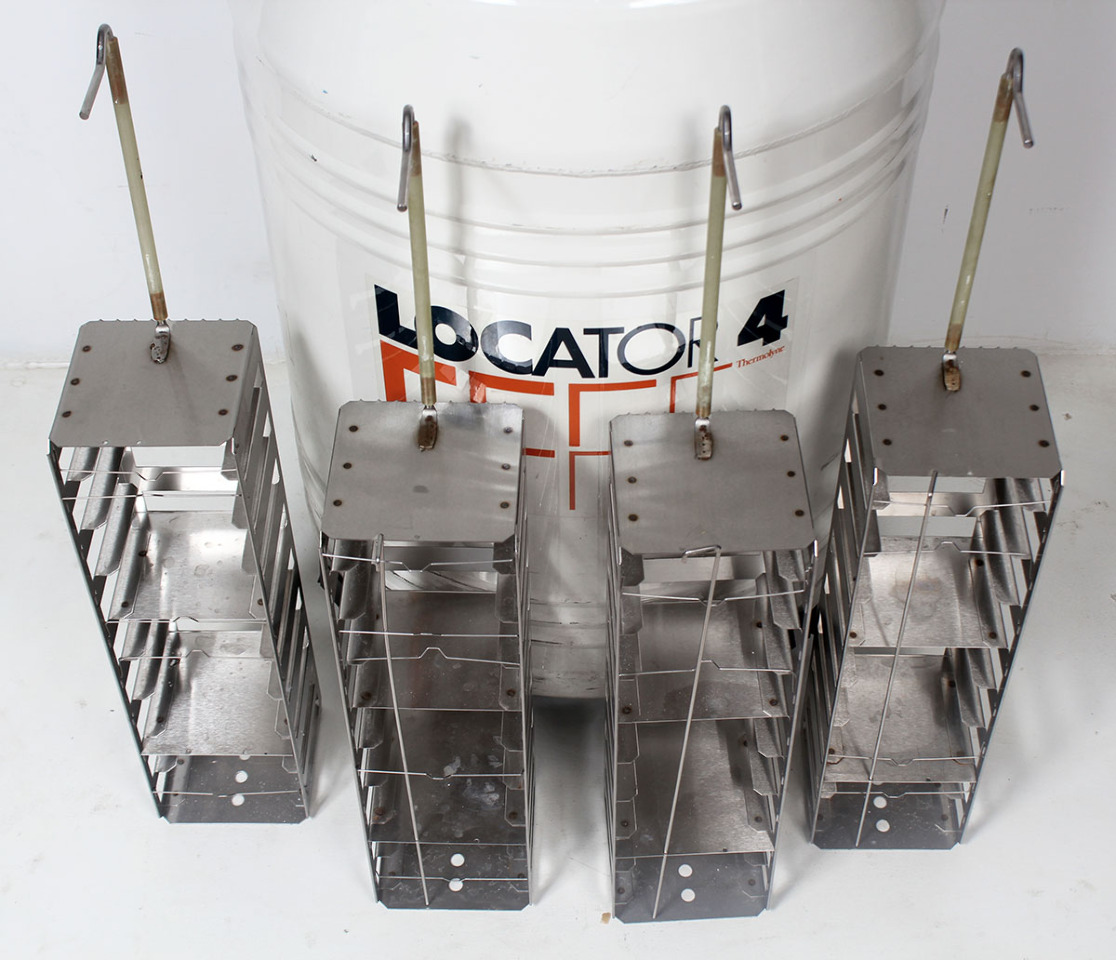

Clean and in excellent condition. 4 stainless hanging sample racks as shown. Lid and necktube core in good shape.

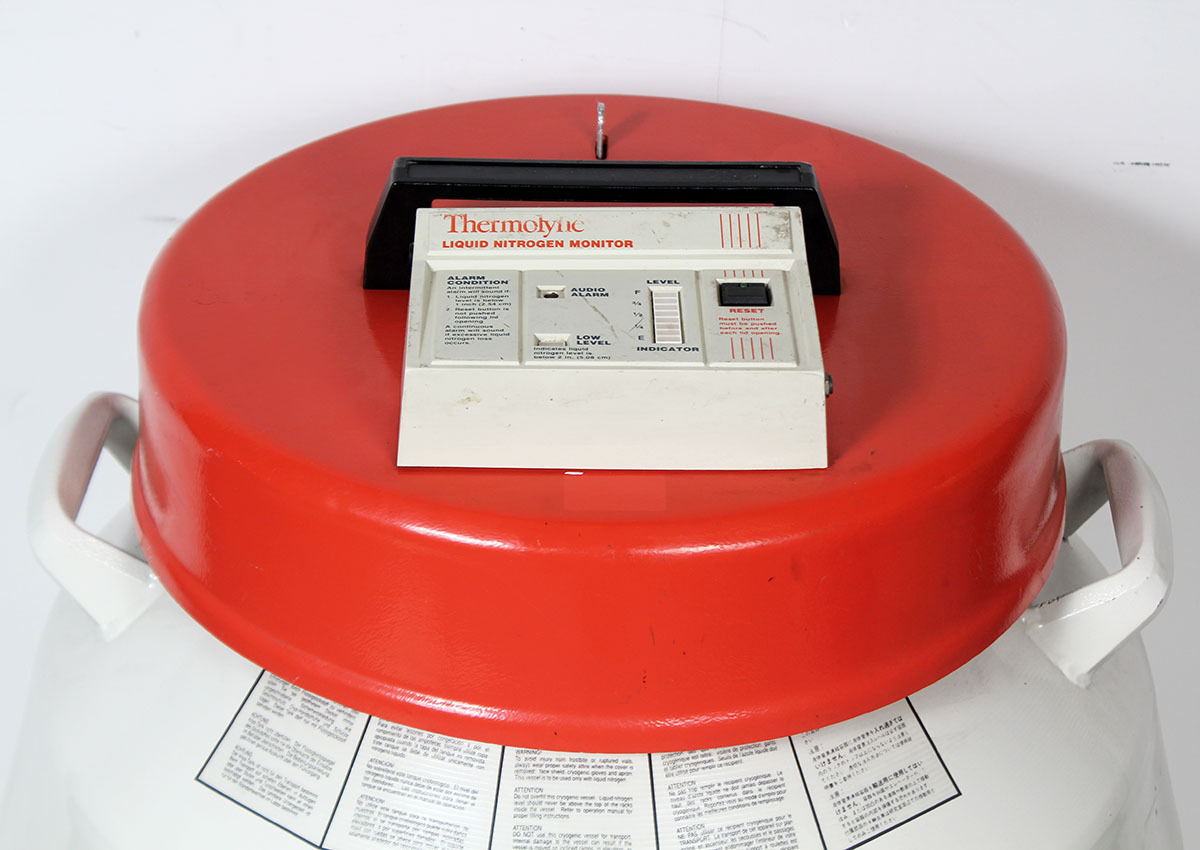

Has nitrogen level monitor with no power supply.
Dewar comes with wheel caster set as shown.
110 liter capacity.
Flat rate freight is based on commercial location with forklift or loading dock in the lower 48.
For residential or lift-gate delivery, contact us for additional shipping cost quote.
Manufacturer Description
The Barnstead Thermolyne Locator 4 is a high-density, ultra-insulated cryobiological storage dewar engineered for the long-term preservation of biological samples at liquid nitrogen temperatures. Designed specifically to maximize storage capacity while maintaining a compact laboratory footprint, the Locator 4 features an advanced double-wall vacuum insulation matrix that dramatically reduces static evaporation rates. Its narrow-mouth neck design ensures outstanding internal temperature uniformity, keeping samples safely below -180°C even when as little as 2 inches (5 cm) of liquid nitrogen remains in the vessel. With its completely passive, compressor-free operation, this vessel provides foolproof thermal security for high-value research specimens, cell lines, and clinical samples.
Technical Specifications
- Total Internal Volume: 111 Liters
- Liquid Nitrogen Capacity: 90 Liters
- Static Evaporation Rate: ~0.65 to 0.99 Liters per day (dependent on ambient environment and lid cycles)
- Static Holding Time: Up to 112 Days
- Sample Capacity: Holds up to 4 inventory racks (accommodating 9x9 or 10x10 cryoboxes)
- Maximum Vial Capacity: Up to 3,600 standard 2.0 mL cryogenic vials (using 100-vial boxes)
- Neck Opening Diameter: 8.5 inches (215 mm) for easy rack insertion and extraction
- Dimensions: 22" Diameter x 37.5" Height (55.9 cm x 95.3 cm)
- Weight (Empty): Approx. 90 lbs (41 kg)
- Value-Add: Features an integrated, numbered index ring around the neck opening to ensure exact, fast placement and tracking of individual inventory racks, minimizing open-lid thermal exposure.
System Compatibility
The Locator 4 vessel accepts standard laboratory inventory management hardware and accessories:
- Inventory Racks: Compatible with classic Thermolyne 4-pot vertical hanging racks (typically holding 9 or 10 boxes per rack).
- Cryobox Systems: Accommodates standard 2-inch plastic or water-repellent cardboard cryoboxes (3.25" x 3.25" or standard grids).
- Mobility: Universally compatible with the Thermolyne / Thermo Scientific heavy-duty castered dewar dolly for safe laboratory transport.
Applications
The definitive choice for secure, ultra-low-temperature archiving:
- Biorepository Storage: Long-term archiving of genomic samples, tissue cultures, and pristine clinical specimen lots.
- Cell Culture Preservation: Maintaining hybridomas, stem cells, and primary cell lines in stable vapor-phase or liquid-immersion environments.
- IVF Clinics: Secure cryopreservation of oocytes, embryos, and sperm samples.
- Academic Research: Fail-safe master strain banking for microbiology and molecular biology labs without the risk of power-outage losses.
