Buy with confidence! This centrifuge motor is backed by our
Hassle-Free 30-DAY WARRANTY

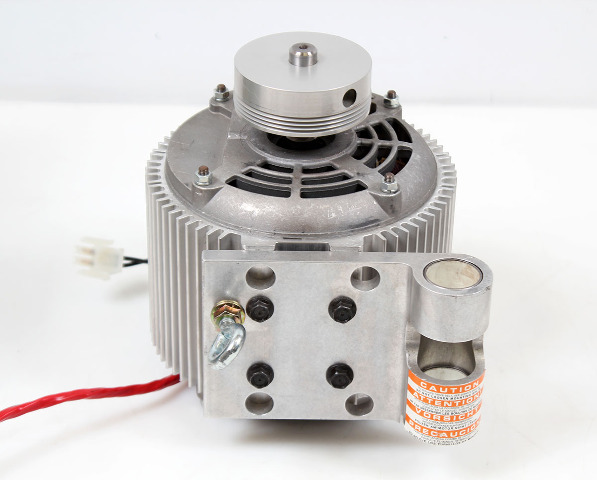

Clean, functional and in excellent working condition. This motor was from an Avanti J-E refrigerated centrifuge, pulled from a premiere national laboratory during an upgrade. The unit was well maintained but as it had sat unplugged for over a year, the battery backed program chip sets became discharged and needed to be replaced.
We were able to successfully test the centrifuge by reprogramming the parameters but the system would lose them again at each power down. As we needed parts for other projects, we dismantled the unit after full testing.
This motor was quiet and well behaved. Motor break and acceleration settings operated as expected. There is a quick spin-up demonstration of the centrifuge running with a JLA 9.10000 rotor in the video below.
Motor comes with belt pulley and the appropriate belt for the J-E.
Hassle free warranty.
Beckman Avanti J-E High Speed Centrifuge Spin Demo
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Manufacturer Description
Avanti J-E Series
Avanti® J-E Centrifuge, 50/60 Hz, 200/208/240 V
The J-E centrifuge accommodates the comprehensive J-Series line of standard and biosafe certified rotors and labware for sample sizes from just a few microliters up-to 4 liters. For total versatility, select the AllSpin JS-5.3 high capacity swinging bucket rotor system, capable of processing up-to twenty-four 96-well microtiter plates and offers the flexibility of processing a variety of sample sizes in bottles from 4 x 500 mL to 96 x 17 mm tubes. The J-E centrifuge generates maximum speeds up to 21,000 RPM (53,300 x g) and offers the capacity of processing up-to 4 liters in under 10 minutes. The J-E's high torque switched reluctance (SR) direct drive achieves faster acceleration and deceleration with gentle precision that delivers the fastest separations in the shortest run times, performance unattainable by standard high-speed centrifuges. Using CFC-free refrigerants and a maintenance-free vacuum pump to partially remove friction-generating air molecules, the J-E offers better temperature control (-10° C - +40° C in 1° C increments), a more energy efficient system, lower heat output (< 6,900 BTUs) and quieter operation for a comfortable, productive work environment.
Easily perform separations with the compact Avanti® J-E high-speed centrifuge. The Avanti J-E is uniquely designed to achieve a high degree of separation, and offer outstanding high-speed performance in a compact design.
- 4.0L max capacity
- 21,000 RPM
- 53,300 x g
Features
Reduction in Experiment Time
- A faster acceleration/deceleration selection menu provides time savings during protocol runs
- Optimized surface height and contoured front panel allow for easy rotor installation and retrieval
- Switched reluctance (SR) drive technology for shorter wait times
Sample Protection
- Set and control temperature to maintain sample integrity
- Extensive rotor library for safe sample transportation
- Application benefits from efficient hardware and supplies
Design and Safety
- All the power you need – even in the tightest lab spaces
- Low-speed automated rotor identification with auto-reset for operational safety
Energy Savings
- A lower heat output provides energy efficiency
- Maintenance-free vacuum reduces rotor friction reducing energy use
Product Specifications
| Platform | Avanti |
| Maximum Speed | 21,000 rpm |
| Maximum g-Force | 53300 x g |
| BioSafe | Yes |
| Acceleration | 2 profiles, Maximum (full accleration to set speed) & Slow |
| Deceleration | 3 profiles (max, slow & off (coast) |
| Timed Run | 1 min to 99:59 hrs, Hold |
| Max Capacity Volume Range | 1 - 4 L |
| Refrigeration System | Non-CFC, non-ozone depleting refrigerant |
| Drive Type Cooling | Air-cooled |
| Temperature Range(s) | From -10°C to +40°C in 1° increments |
| Zonal Capability | Yes |
| Pollution Degree | 2 |
| Installation Category | II |
| Software | Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android |
| Material(s) | Steel, Structural Foam |
| Finish | Control panel finish: Silicone elastomer, Powder Coat Paint |
| Weight | 267.4 kg(589.5 lb) |
| Width | 63.5 cm(25 in) |
| Depth | 80 cm(31.5 in) |
| Height | 91.4 cm (152.4 cm with door open) |
| Clearances | 7.6 cm (sides) & 16 cm (rear) |
| Humidity Restrictions | < 95% (non-condensing) |
| Power Requirements | 208 VAC, 240 V, 50/60 Hz |
Rotor Description
J-LITE® JLA-9.1000 Fixed-Angle Aluminum Rotor- 4 x 1,000 mL, 9,000 rpm, 16,800 x g
Product No:366754
JLA-9.1000 Fixed-Angle Rotor Package, Aluminum. Major applications: General purpose, large-volume processing, pelleting of bacteria, subcellular organelles, viruses, and precipitates. Empty rotor and windshield weight is 23.9 lb (10.8 kg). Package Includes: Part Number Description 969328, 969329, JLA-9.1000 Rotor 363563, 363686. Lid with removable canisters.
