Biodex Medical System - Biodex 3 Control Console, Cart & Power Supply
Clean and in good condition. Powers and responds to user controls.

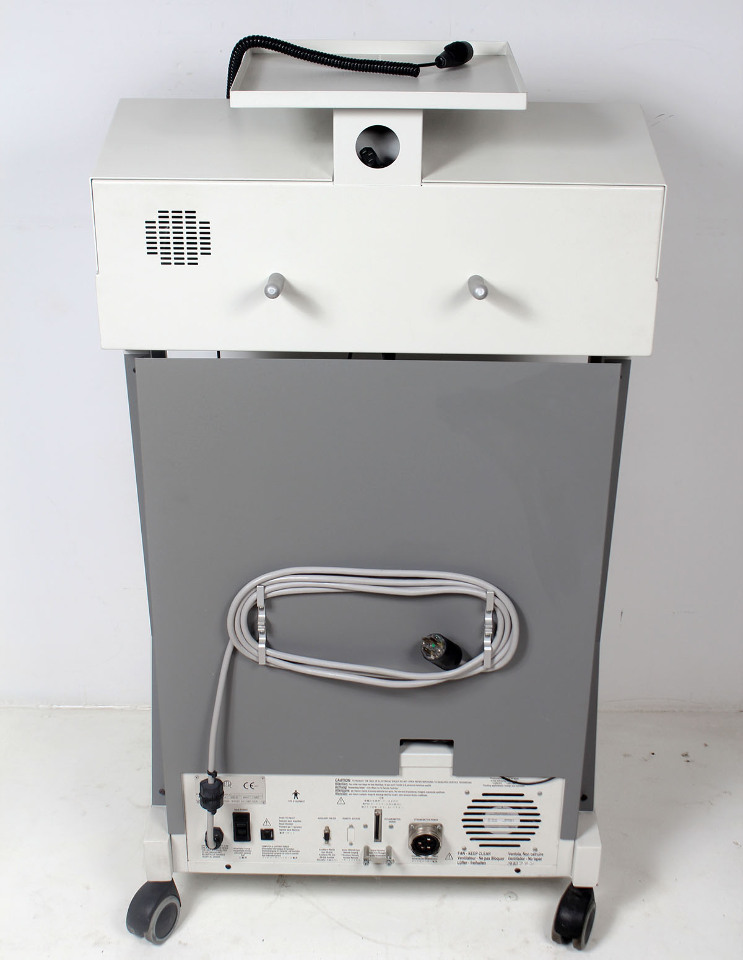

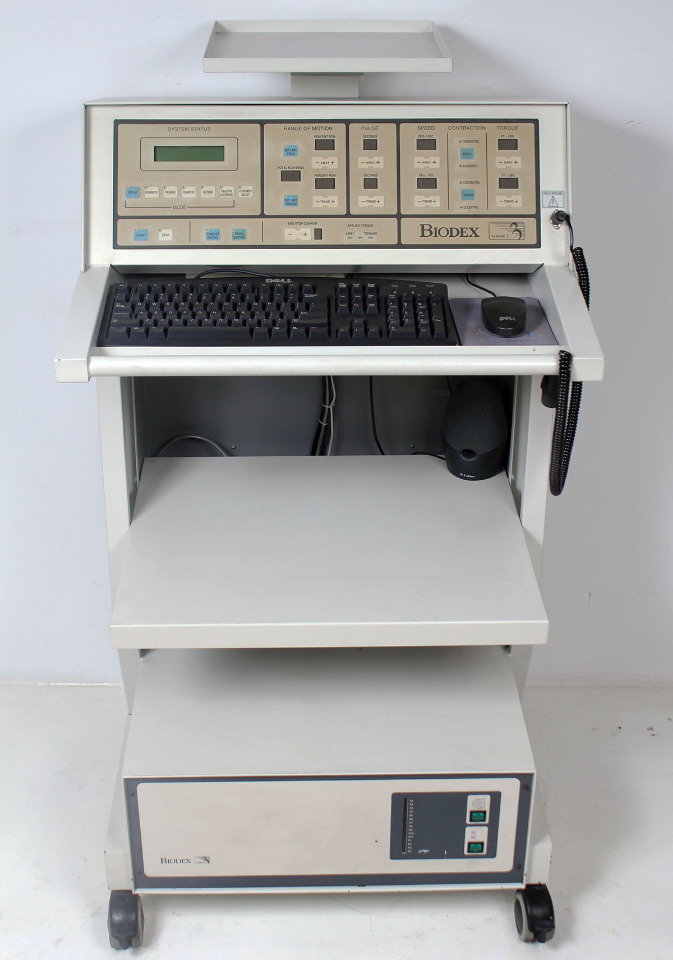

This listing is for the control console, power supply, cart and cables, as shown. We do not have the Dynamometer, computer or other accessories.
Flat rate freight is based on commercial location with forklift or loading dock in the lower 48.
For residential or lift-gate delivery, contact us for additional shipping cost quote.
Manufacturer Description
This offering consists of the core hardware infrastructure for the Biodex Multi-Joint System 3, including the specialized mobile equipment cart, integrated control console, and high-isolation linear power supply module. Engineered for heavy-duty clinical and rehabilitation environments, this assembly provides the robust electronic power conditioning and rigid mechanical framework necessary to operate the Biodex 3 system. The control console serves as the primary processing hub between the clinical computer and the high-torque dynamometer actuator, translating user profiles into stable physical resistance parameters. This modular hardware assembly is ideal as a direct replacement stack for facility upgrades, parts reclamation, or backplane testing setups.
Technical Specifications
- System Platform Compatibility: Biodex Multi-Joint System 3 (System 3 Pro / System 3 Quick-Set)
- Component 1: Biodex Mobile System Cart with heavy-duty locking casters and integrated cable routing ports

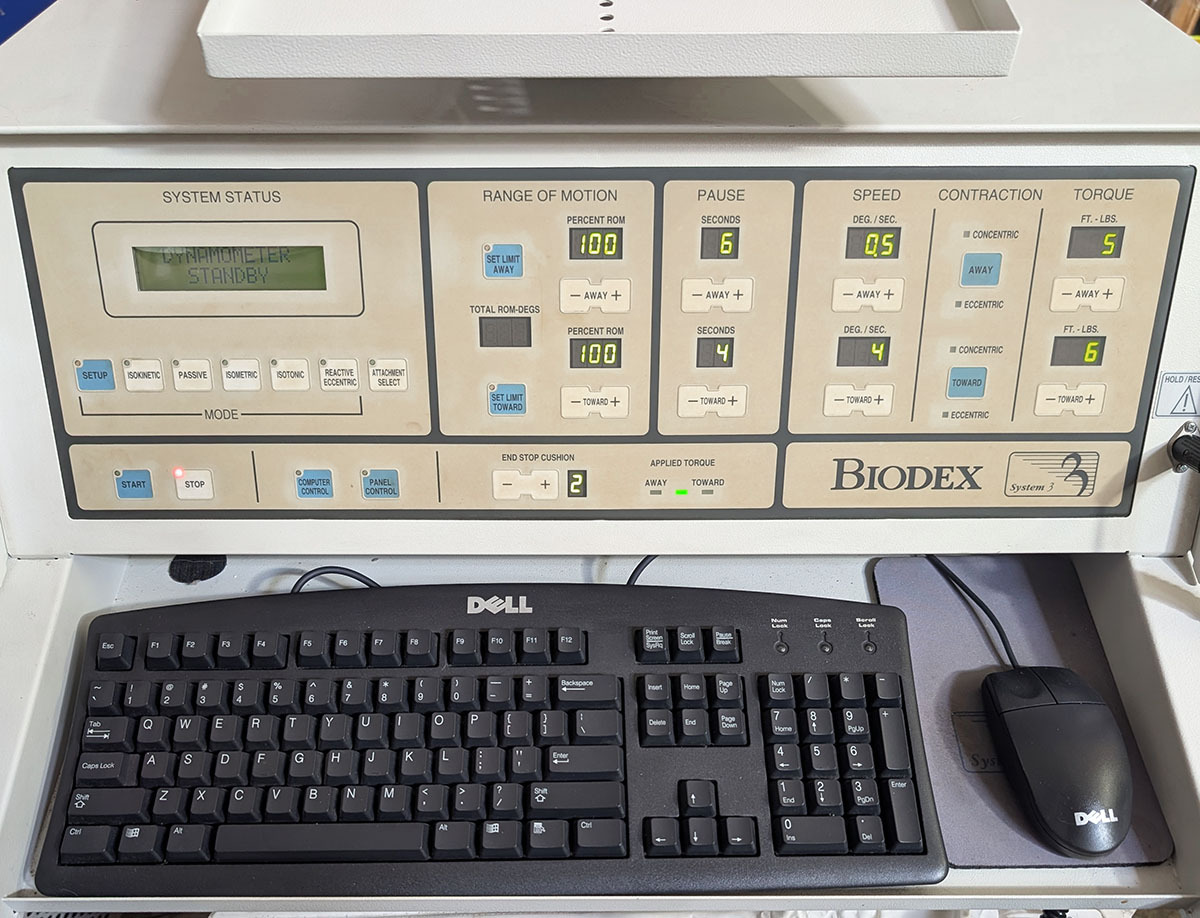

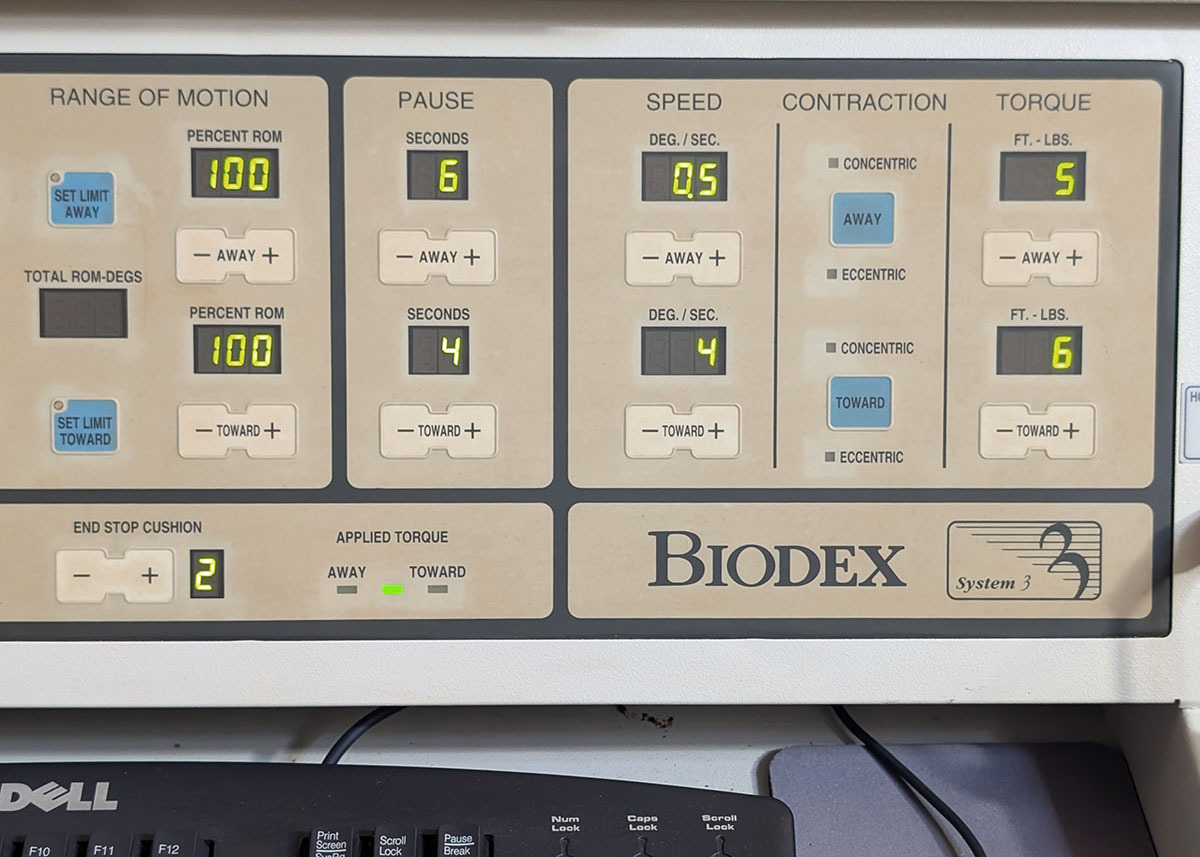

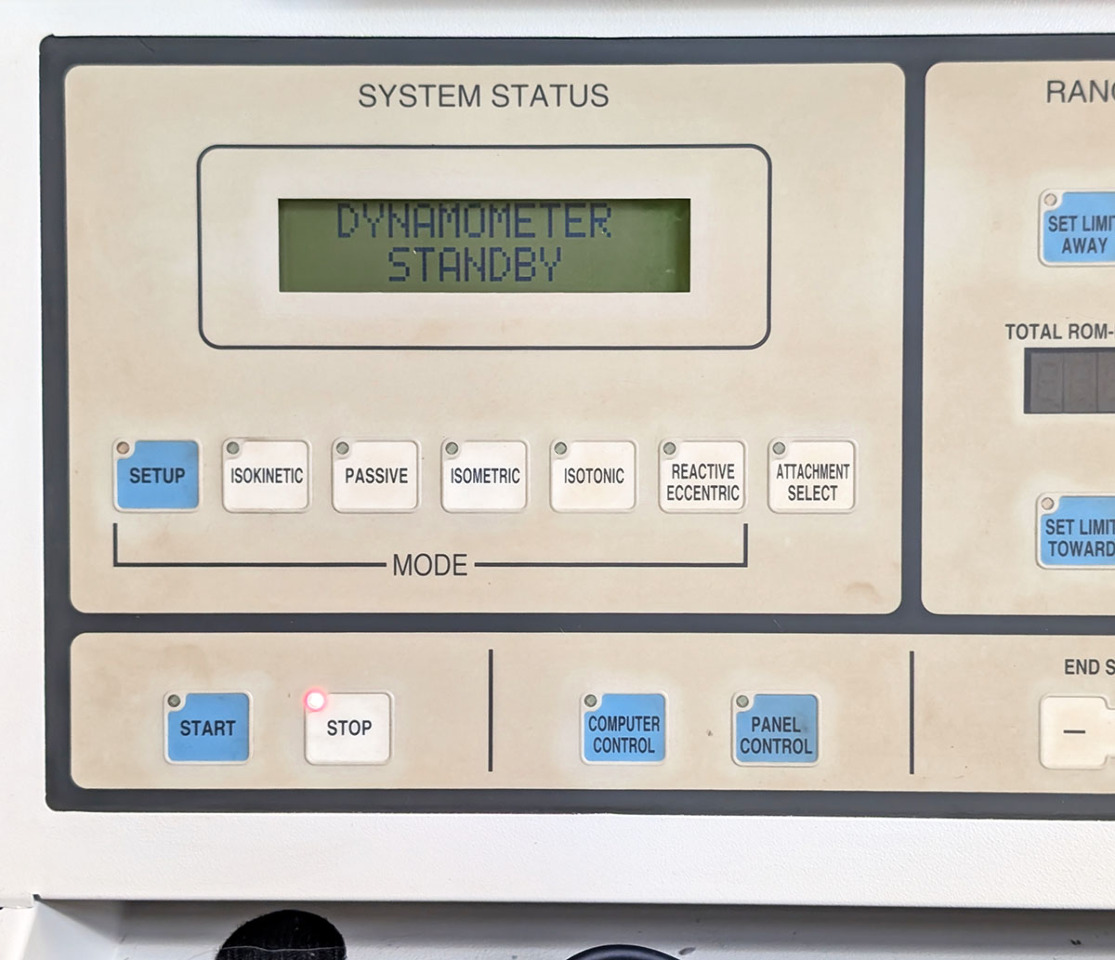

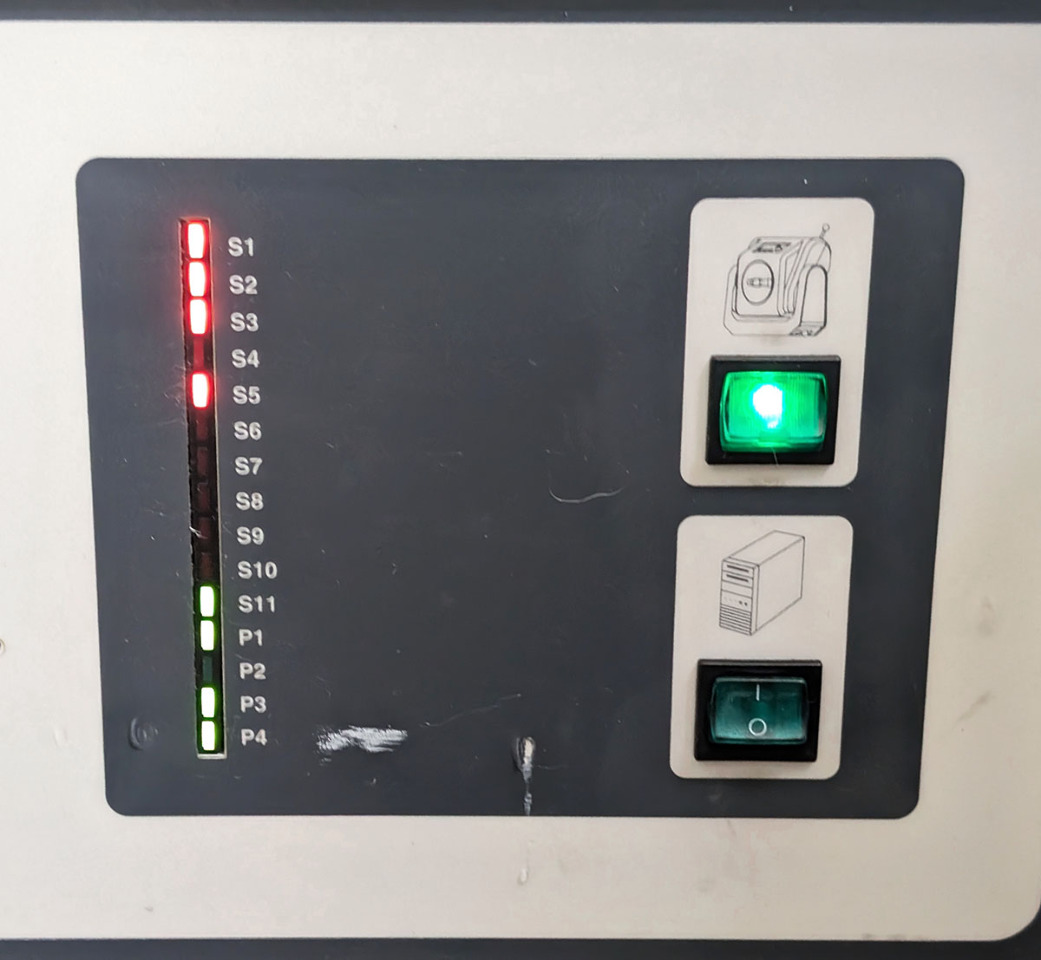

- Component 2: Biodex System 3 Controller/Console module featuring front-panel diagnostic indicators

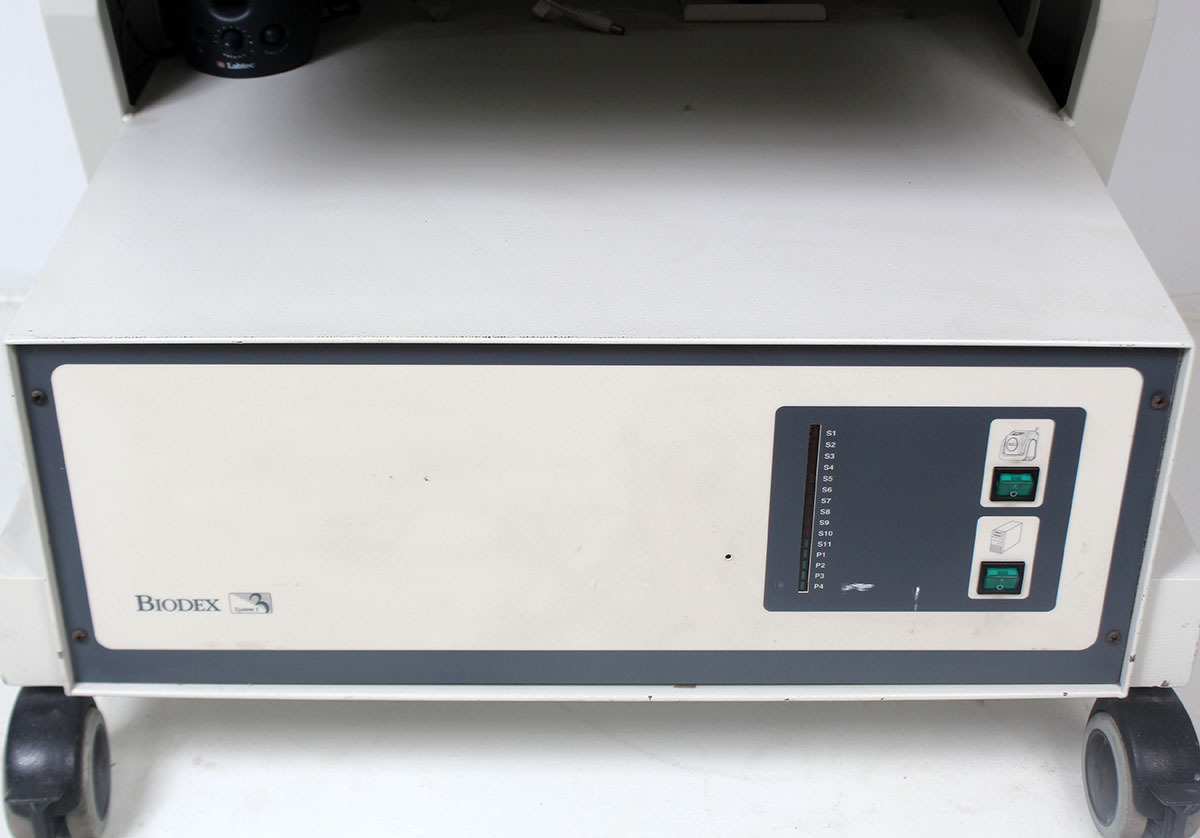

- Component 3: Medical-grade isolated linear power supply assembly

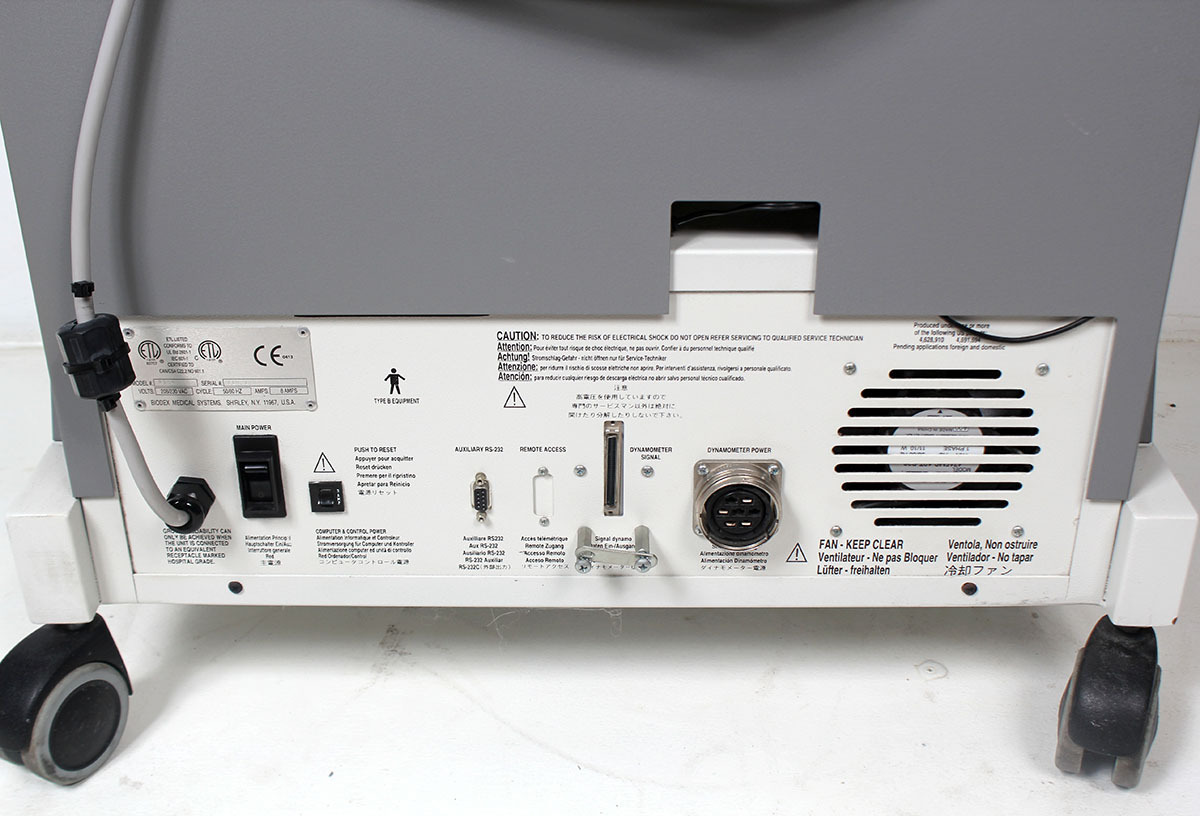

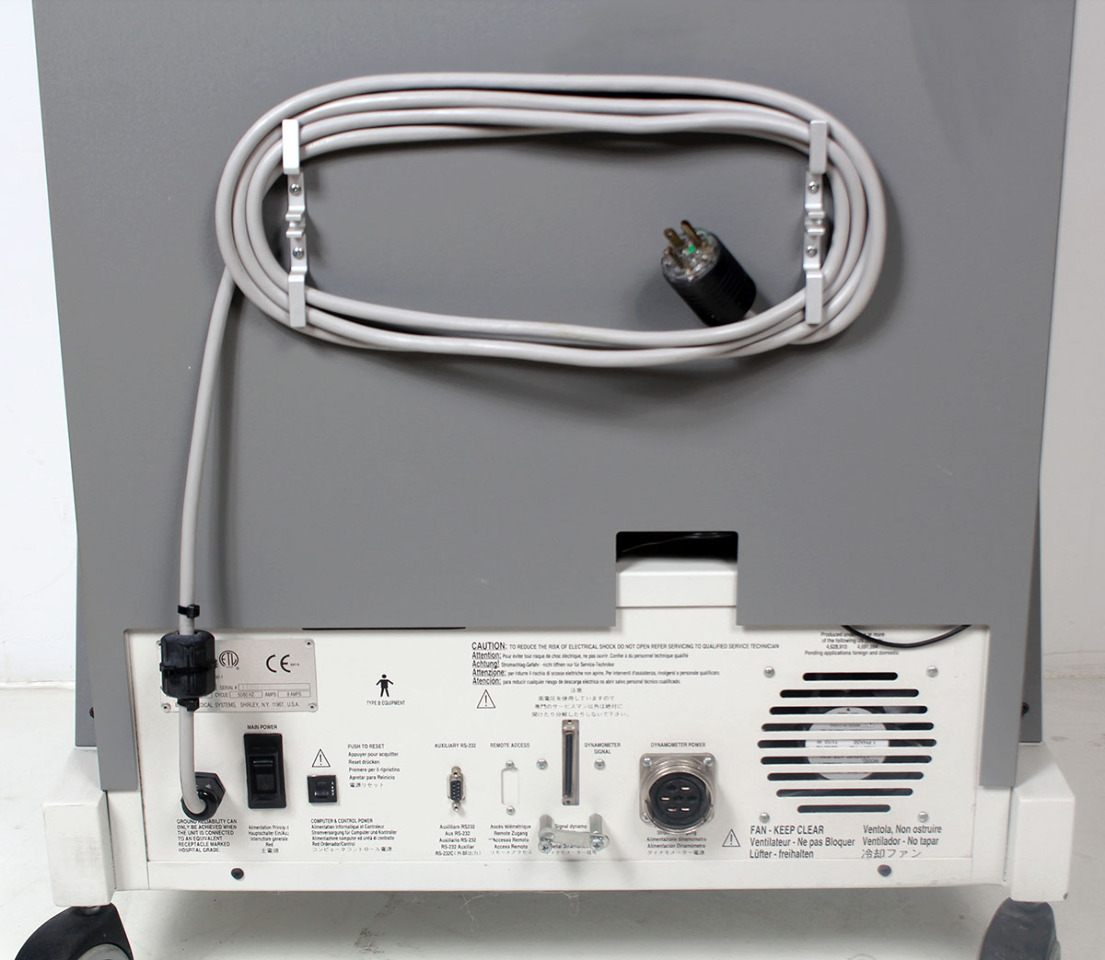

- Rear IO Interface: High-density D-sub, power rail couplings, and dedicated dynamometer umbilical inputs
- Input Voltage: 100-120 VAC / 220-240 VAC (Selectable), 50/60 Hz
- Value-Add: Clean chassis structure with all primary internal logic cards, ribbon headers, and step-down transformers intact, eliminating the high cost of individual component sourcing.
System Compatibility
This hardware stack is designed to interface directly with matching vintage Biodex components to form a complete system:
- Dynamometers: Accepts the standard Biodex System 3 brushless motor/dynamometer actuator head.
- Software/Computing: Compatible with Biodex Advantage Software packages via standard serial/analogue interface cards.
- Note: This listing is for the Cart, Console, and Power Supply only. It does NOT include a dynamometer actuator, patient positioning chair, attachments, or PC workstation.
Applications
A critical resource for physical therapy clinics, university research labs, and biomedical repair depots:
- Facility Replacement Hardware: Swiftly swapping out a blown power supply or a damaged control console without retiring the entire functional system.
- Biomedical Triage & Testing: Serving as a dedicated test bench for servicing and calibrating loose Biodex 3 dynamometer heads.
- Parts Harvesting: Providing an intact repository of rare OEM switches, proprietary power transformers, and circuit boards.
