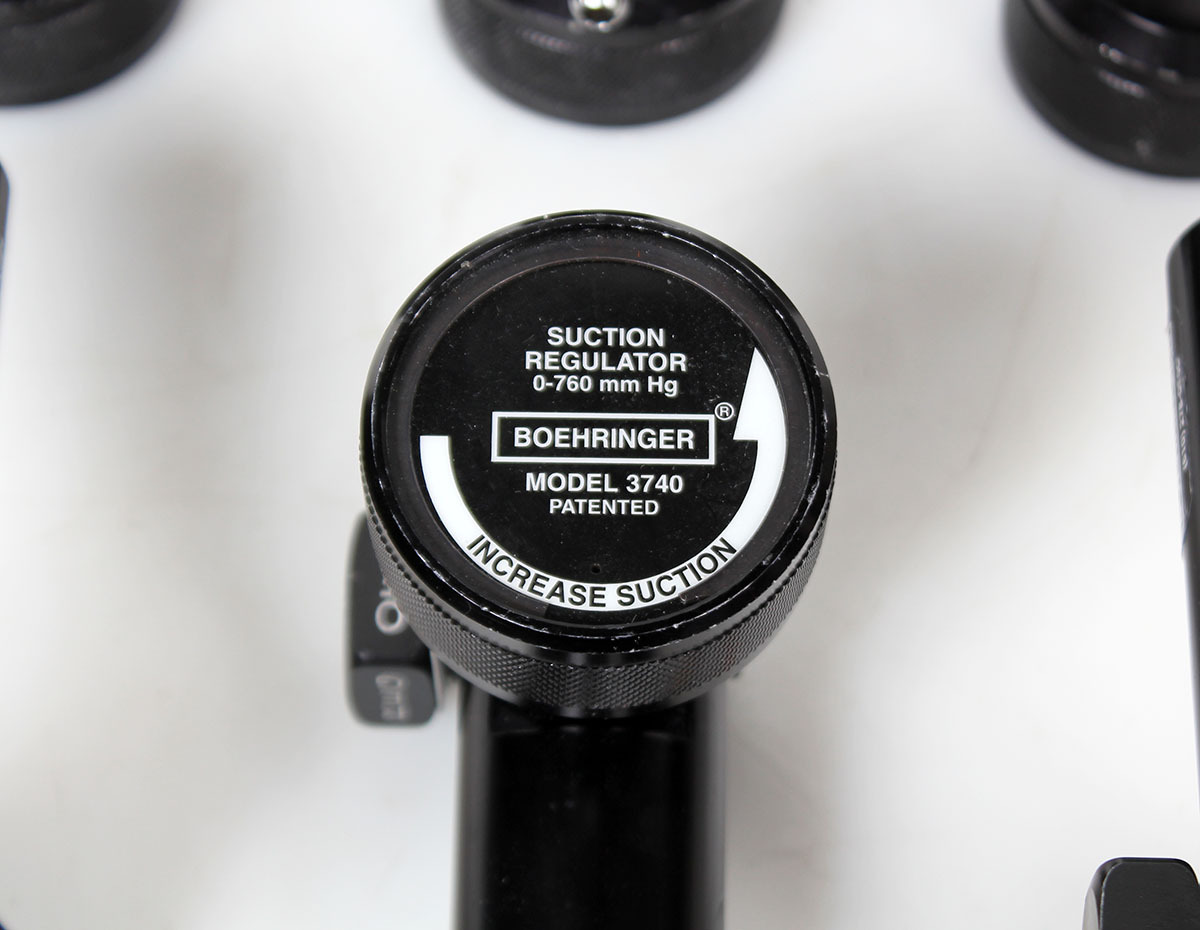

Boehringer 3740 Suction Regulator Regulated/Line (Source) 50-760 mmHg -Lot of 6-

$150.00

Condition: For Parts or Not Working · Stock: 1

Testing, included items, and known limitations are documented below. Questions before purchase? Contact a technician.

7-day return policy · Freight and shipping details are confirmed for the specific item before dispatch.

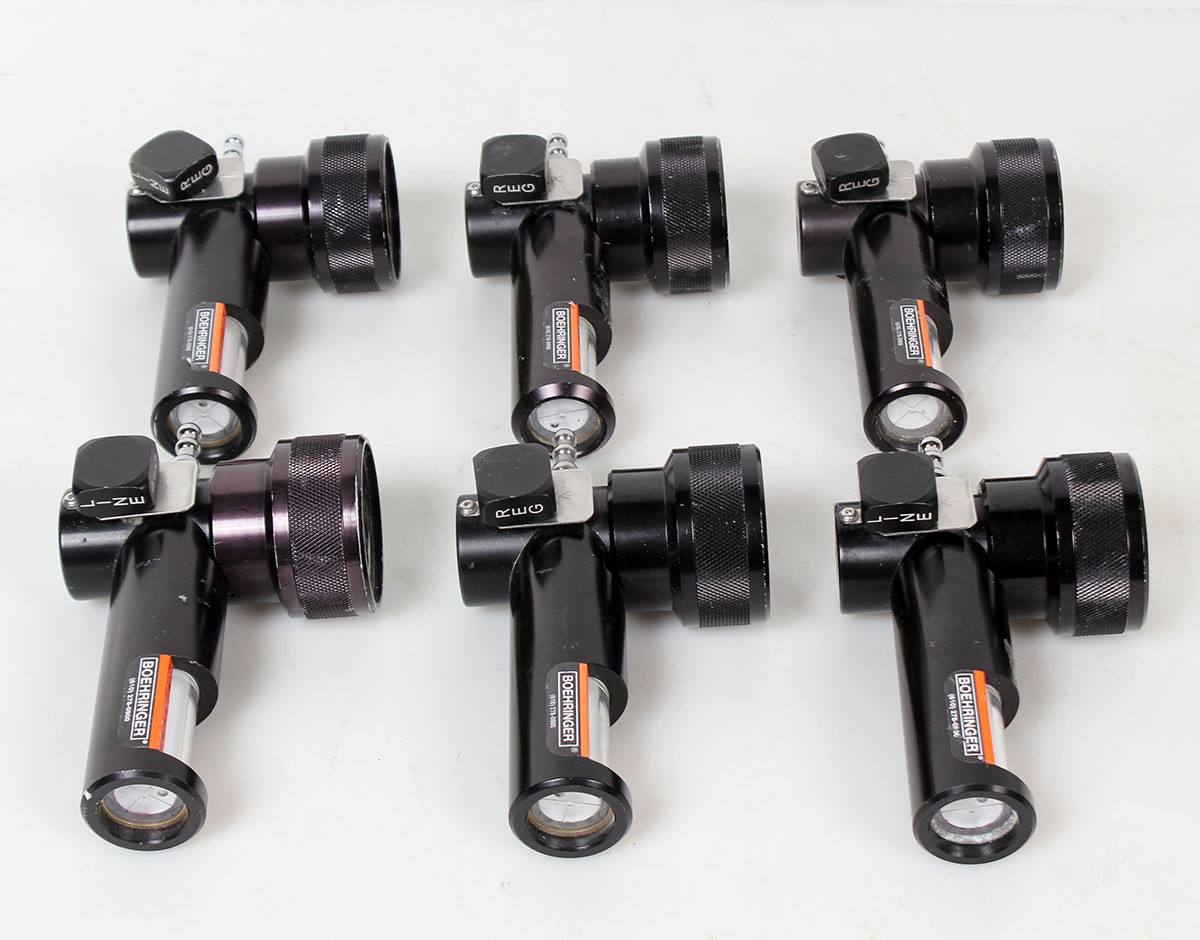

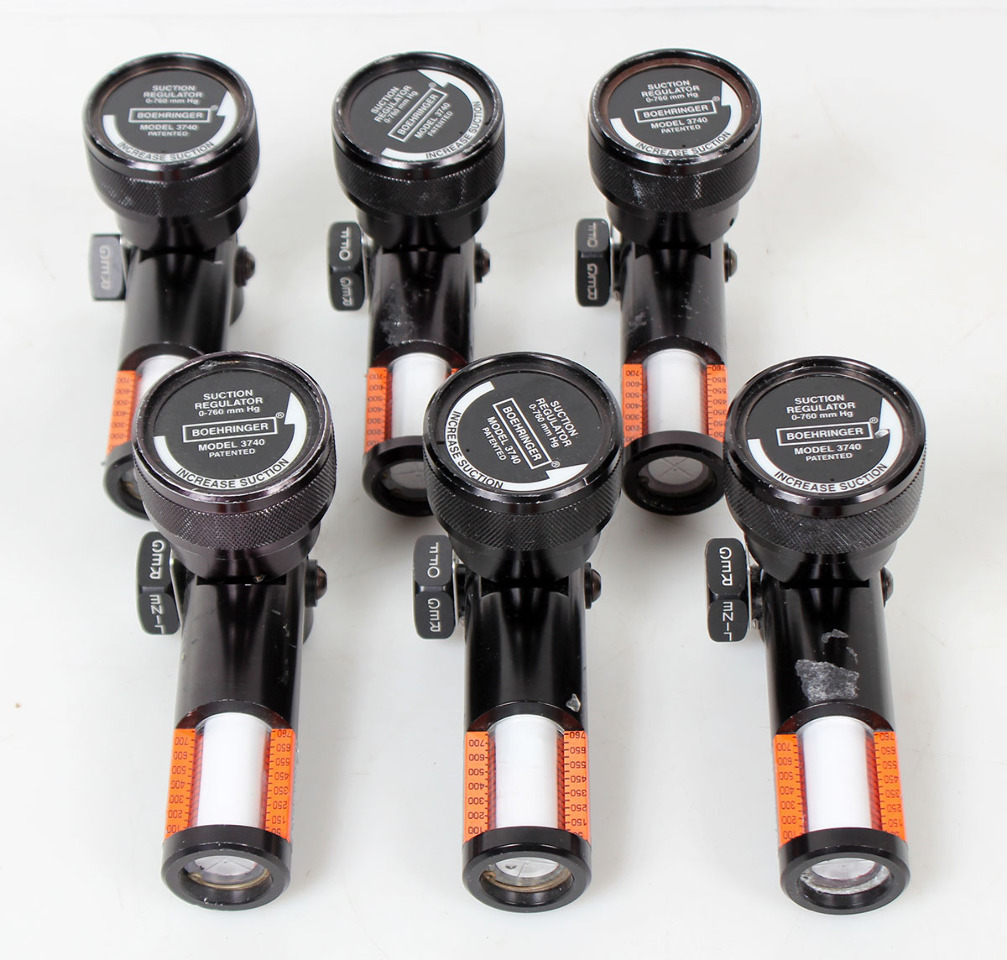

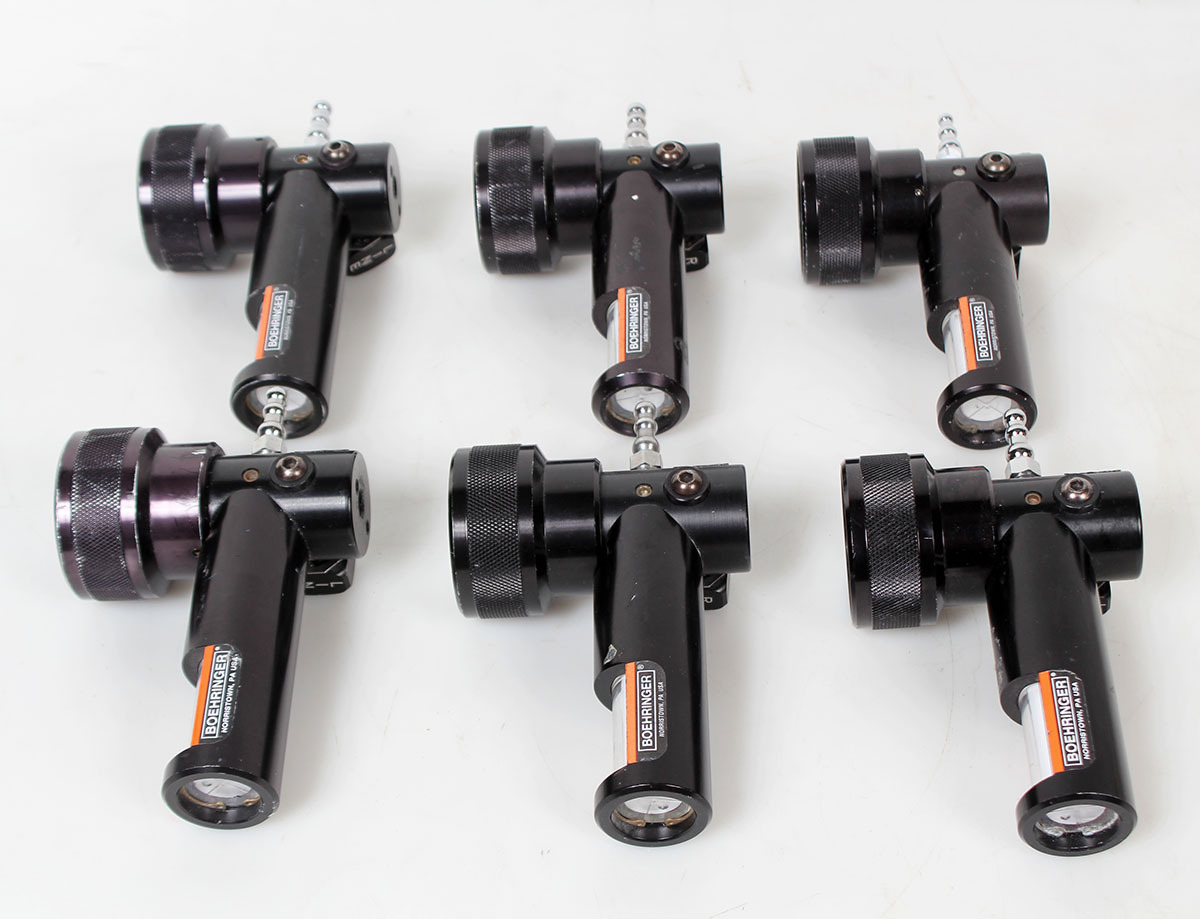

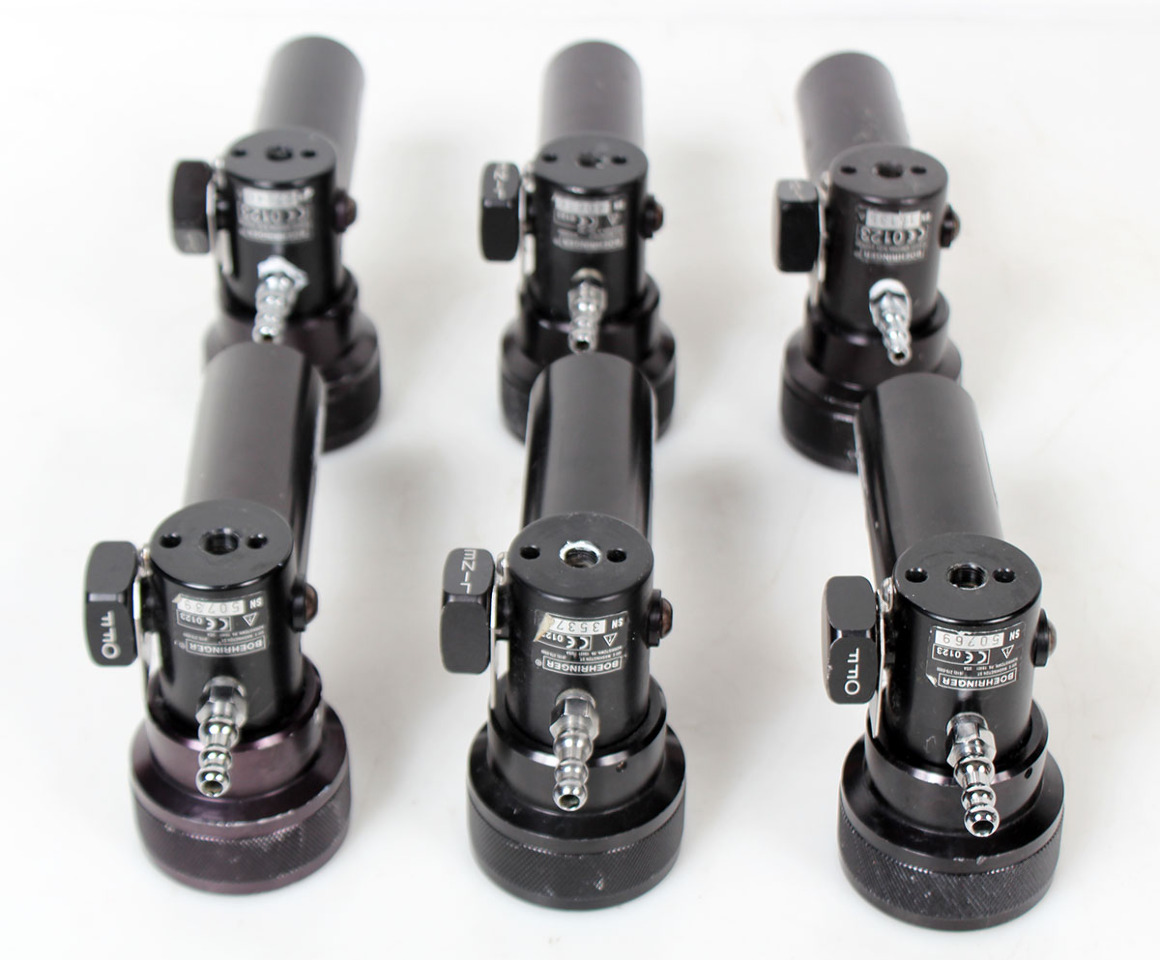

Lot of 6 decommissioned suction regulators from a premiere state facility. These are untested and of differing configurations or some missing parts as shown.

Features:

  • VACUUM - 50-760 mmHg
  • MODES - Off, Regulated Control, Line (source vacuum)
  • Inlet and outlet fittings: 1/8 NPT
    •
    Gauge accuracy ±5% FS
    •
    Regulation Accuracy: ±10% FS from full flow to zero flow with 14 FR catheter attached.
    •
    Leak rate in OFF position: less than 1 cc/min
    •
    Free Air Flow: Greater than 38 LPM with regulator set to 100 mmHg at standard JCAHO supply
    (305mmHg @ 180 SCFH) and a typical collection circuit.
    •
    Free Air Flow (Model 3750): Greater than 20 LPM with regulator set to 60 cm H
    supply (305mmHg @ 180 SCFH).
    •
    Materials: polycarbonate, hard-anodized aluminum, stainless steel, Buna rubber, silicone, acetal
    copolymer.
