Condition: Used · Stock: 1
Testing, included items, and known limitations are documented below. Questions before purchase? Contact a technician.
7-day return policy · Freight and shipping details are confirmed for the specific item before dispatch.
Clean and in excellent condition. This was from a fully functional system pulled from a premiere state facility. We did not have all the components in the overall system so we are selling them separately.
The AGI was tested for general functionality on site. Powered and responded to interface input. Valves and solenoids functioned as designed.
This unit was regularly maintained and calibrated by clinical engineering and is expected to be in great working order.

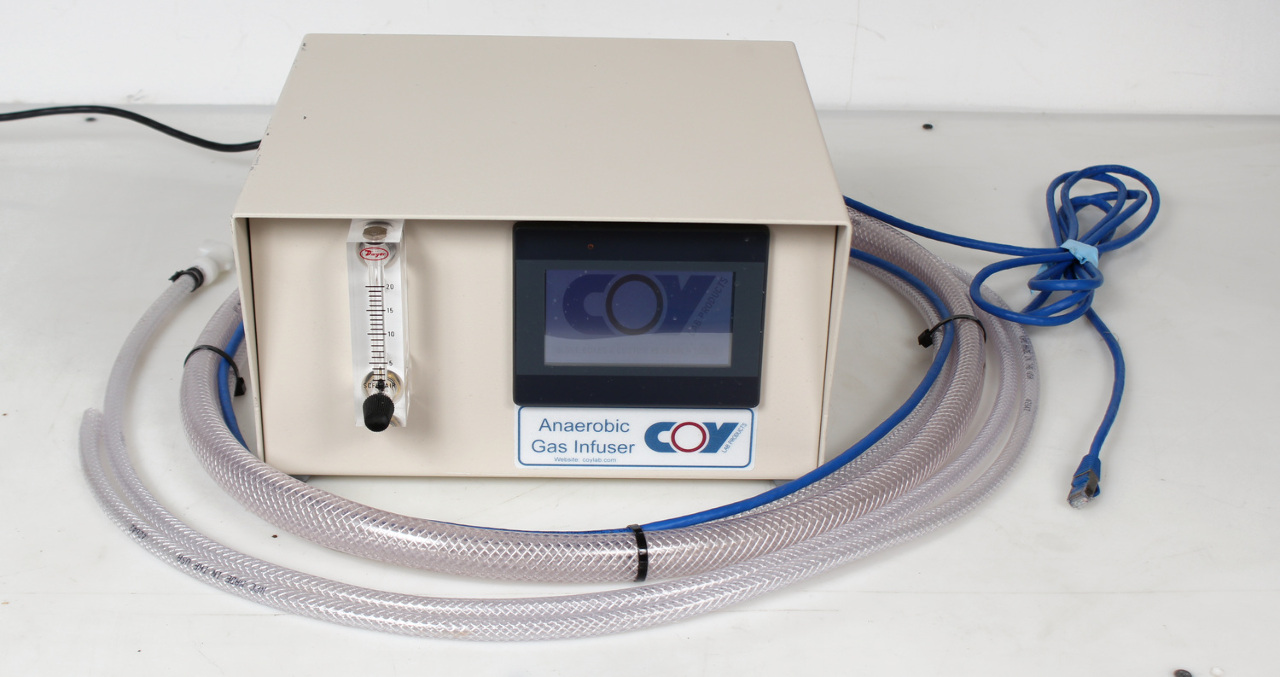

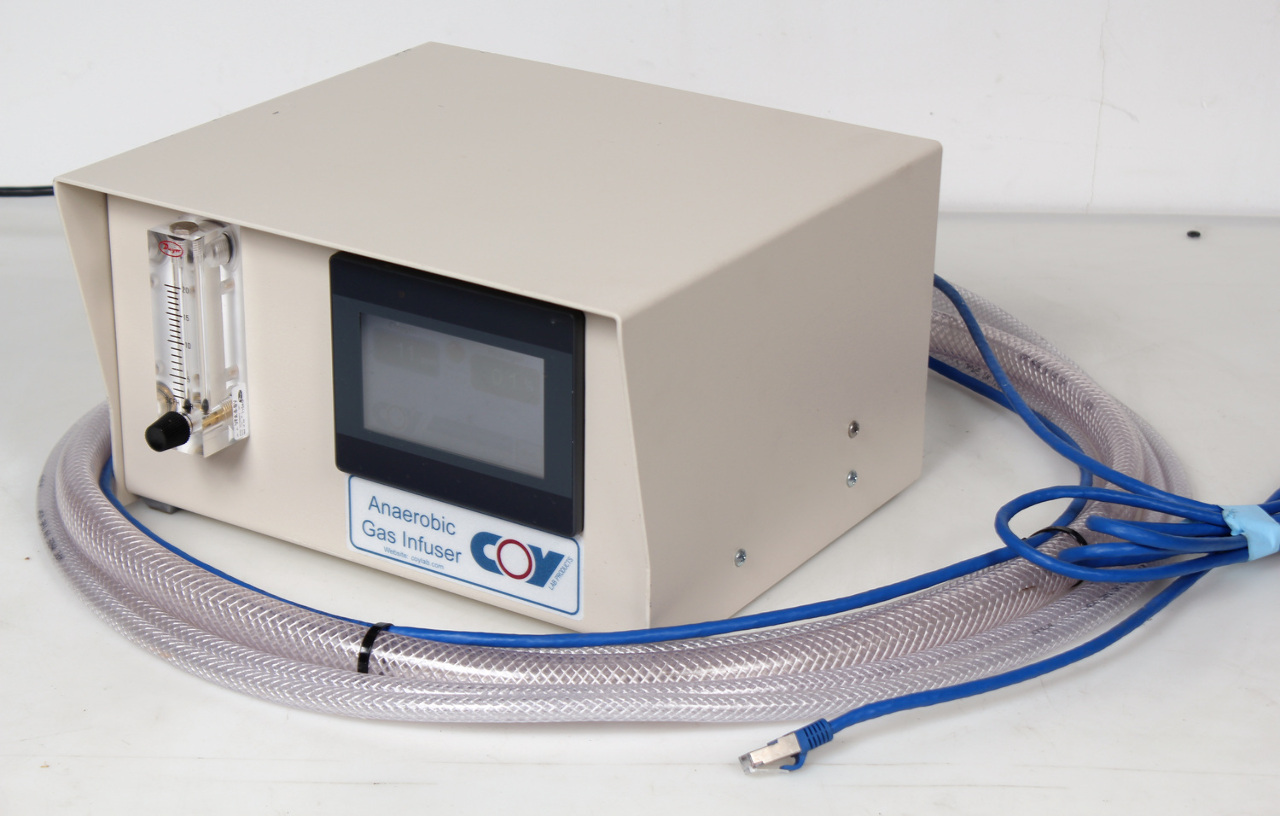

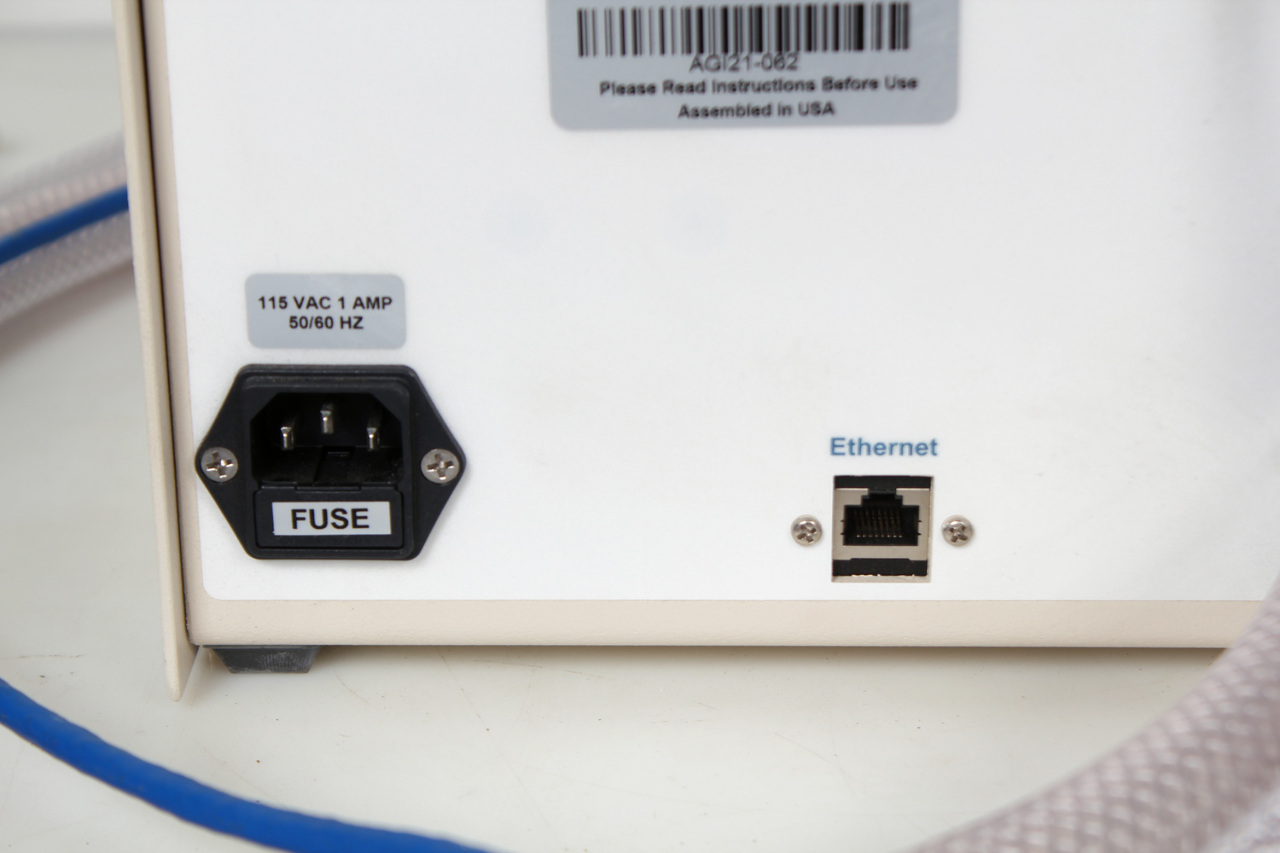

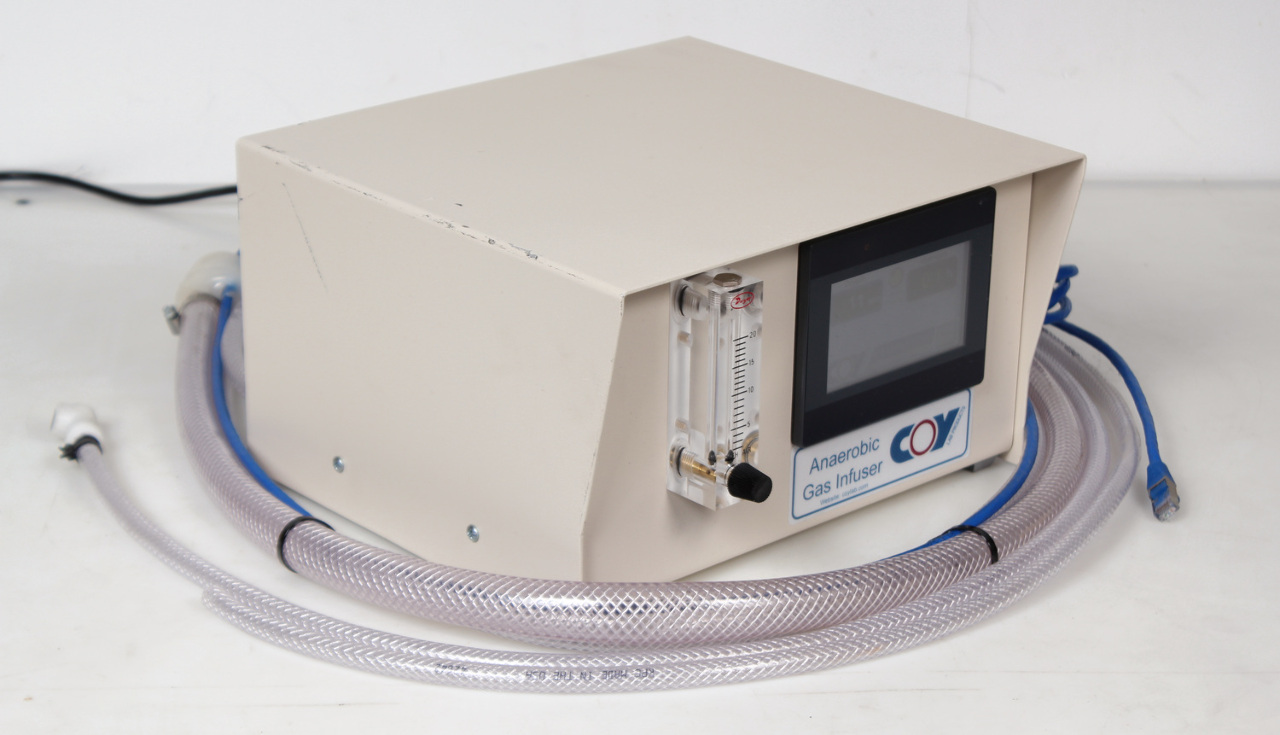

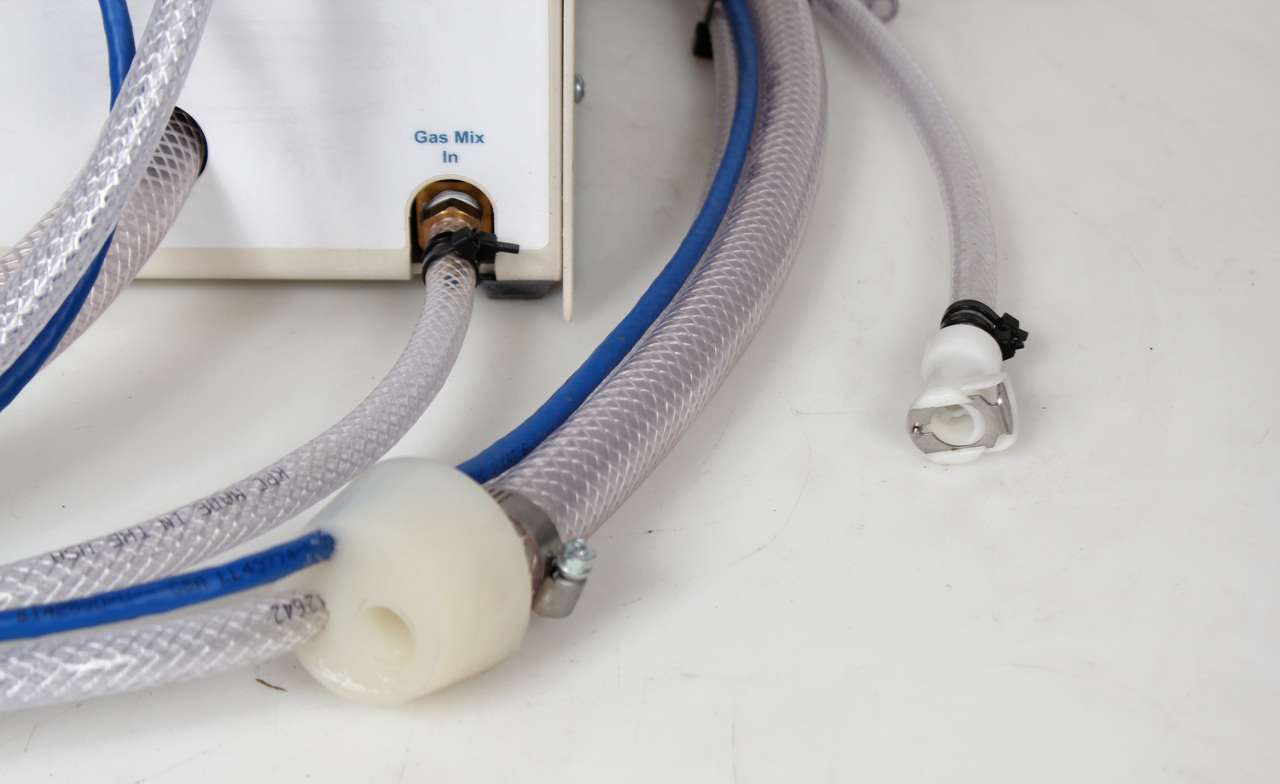

Comes with power cable, hoses and connectors as shown. This unit includes the optional ethernet connector
Hassle-Free Warranty.
Manufacturer Description
Coy Anaerobic Gas Infuser
Automatic Hydrogen-Level Control Module for Coy Anaerobic Chambers
Manufacturer Description
The Coy Anaerobic Gas Infuser is an optional module designed for use with Coy anaerobic chambers and the Coy Anaerobic Monitor. It automatically monitors and maintains the chamber's hydrogen concentration by adding anaerobic gas mix when the hydrogen level drops below the configured control range.

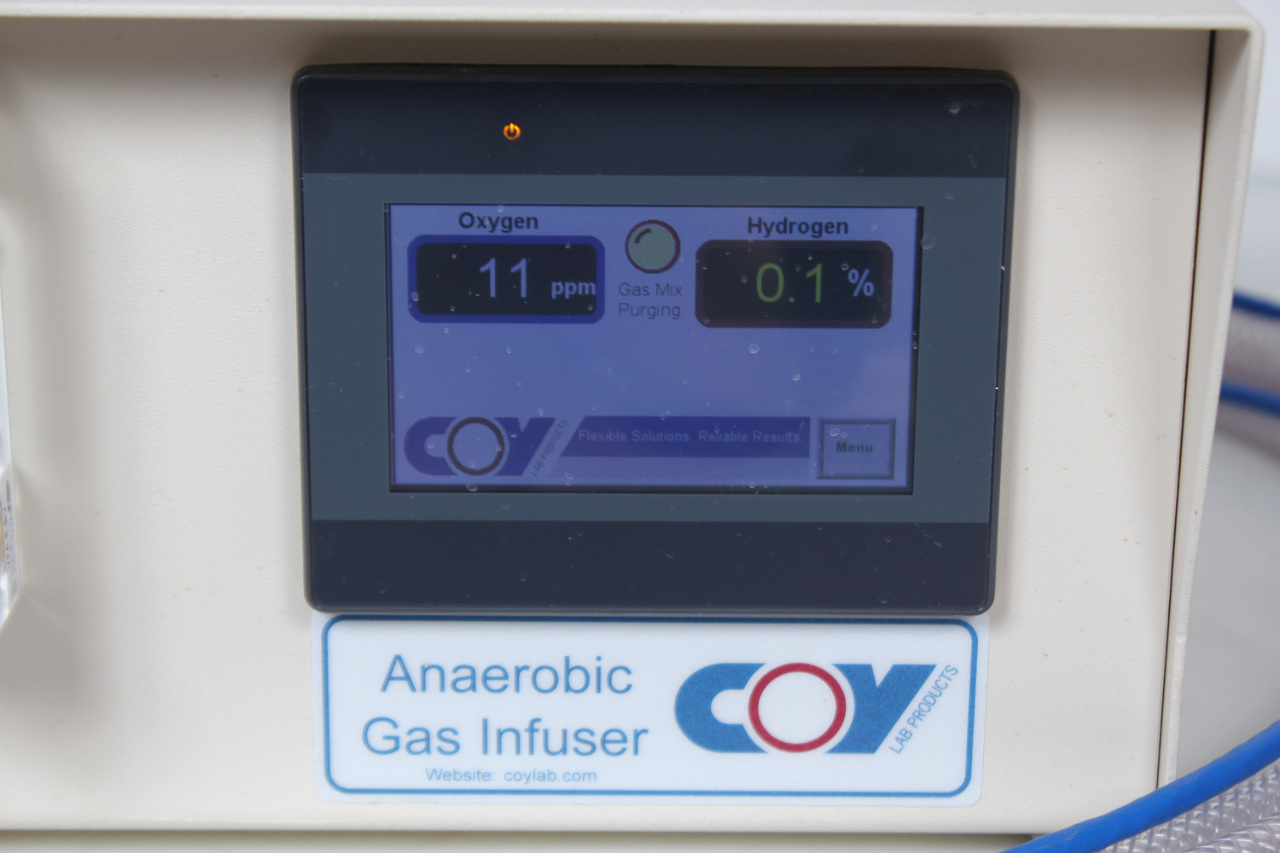

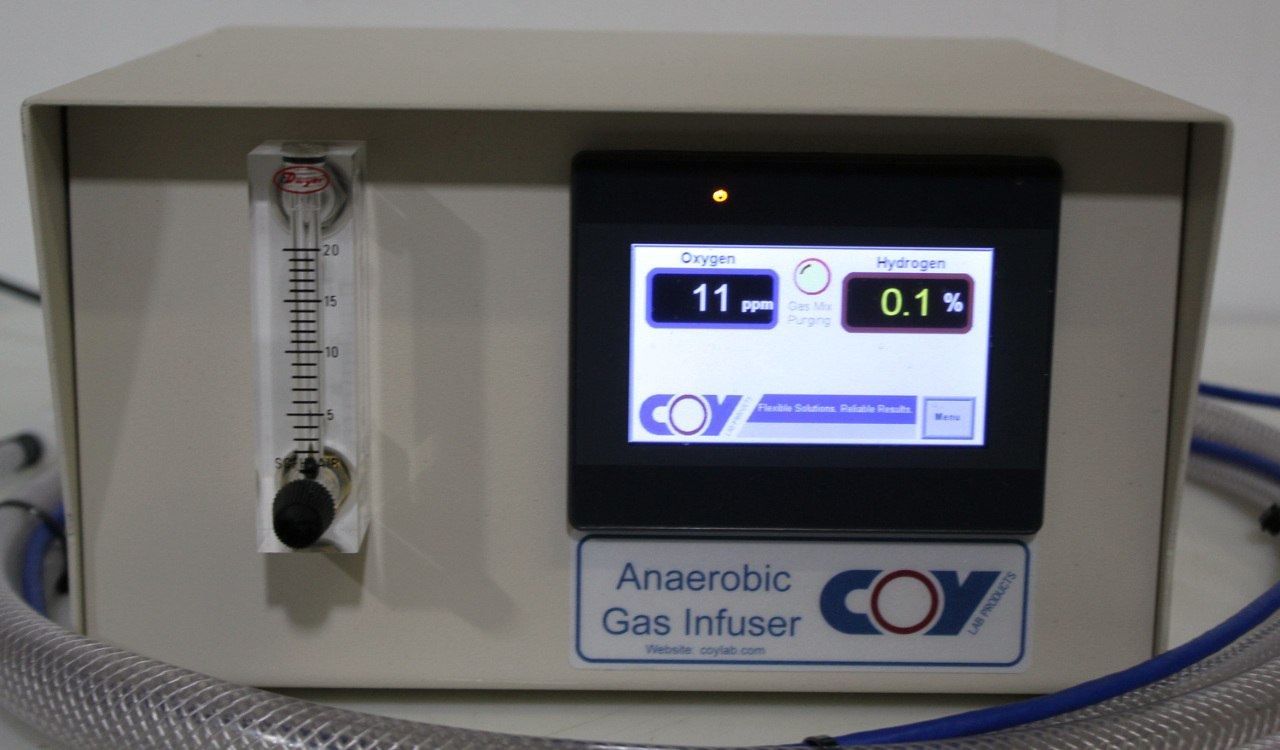

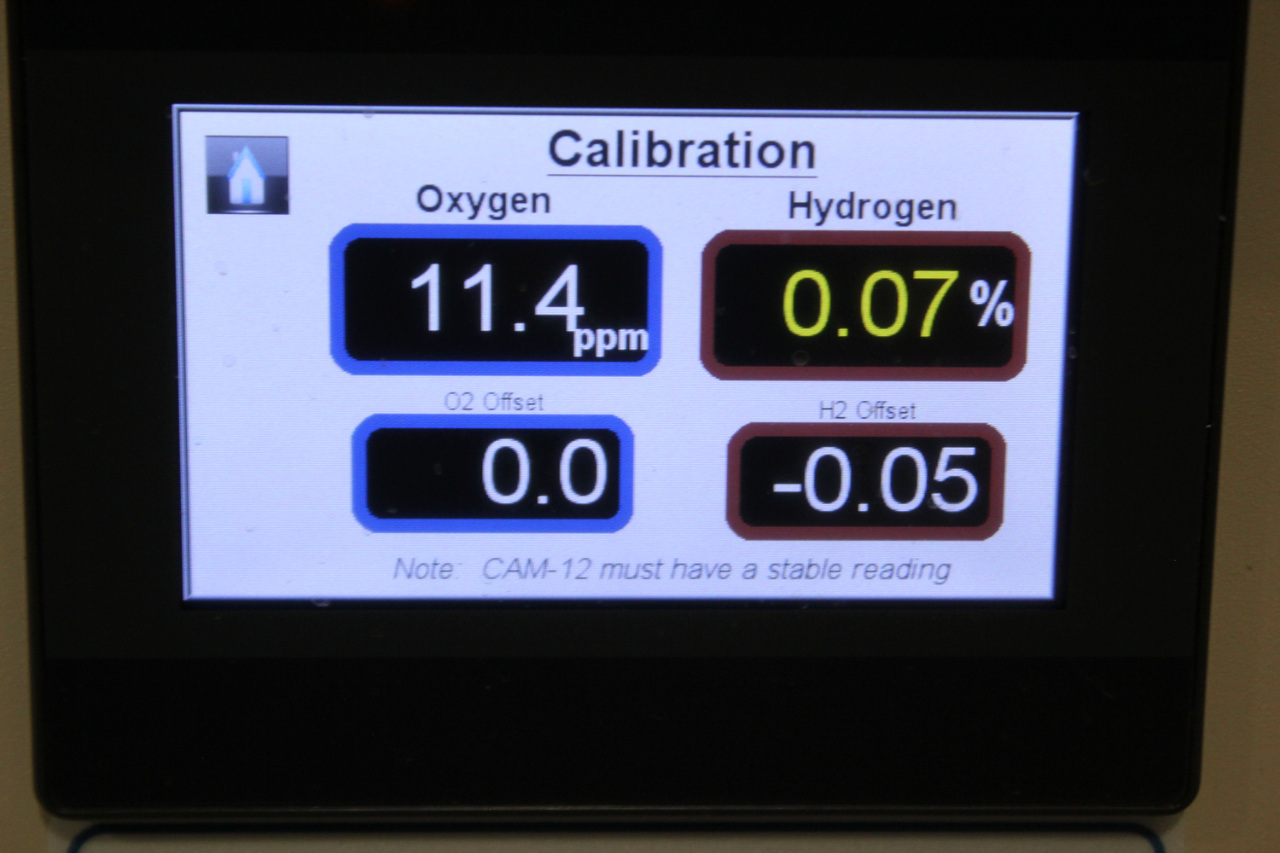

The unit features a touchscreen interface for monitoring hydrogen and oxygen readings, purge activity, flow-rate adjustment, calibration, alarm status, and data logging. It communicates with the Coy Anaerobic Monitor and is designed to help reduce unnecessary gas consumption while maintaining the chamber atmosphere.
The system is intended for use with a non-flammable hydrogen/nitrogen gas mixture and a palladium catalyst system. The gas infuser is not a safety device and should not be used with pure hydrogen or gas mixtures containing more than 5% hydrogen.
Specifications
- Manufacturer: Coy Laboratory Products, Inc.
- Product: Anaerobic Gas Infuser, AGI
- Application: Automatic hydrogen-level control for Coy vinyl anaerobic chambers
- Required monitor: Coy Anaerobic Monitor, also identified as CAM-12
- Controls: Touchscreen interface
- Monitoring: Hydrogen and oxygen readings from the CAM-12
- Data logging: Local logging of oxygen and hydrogen values

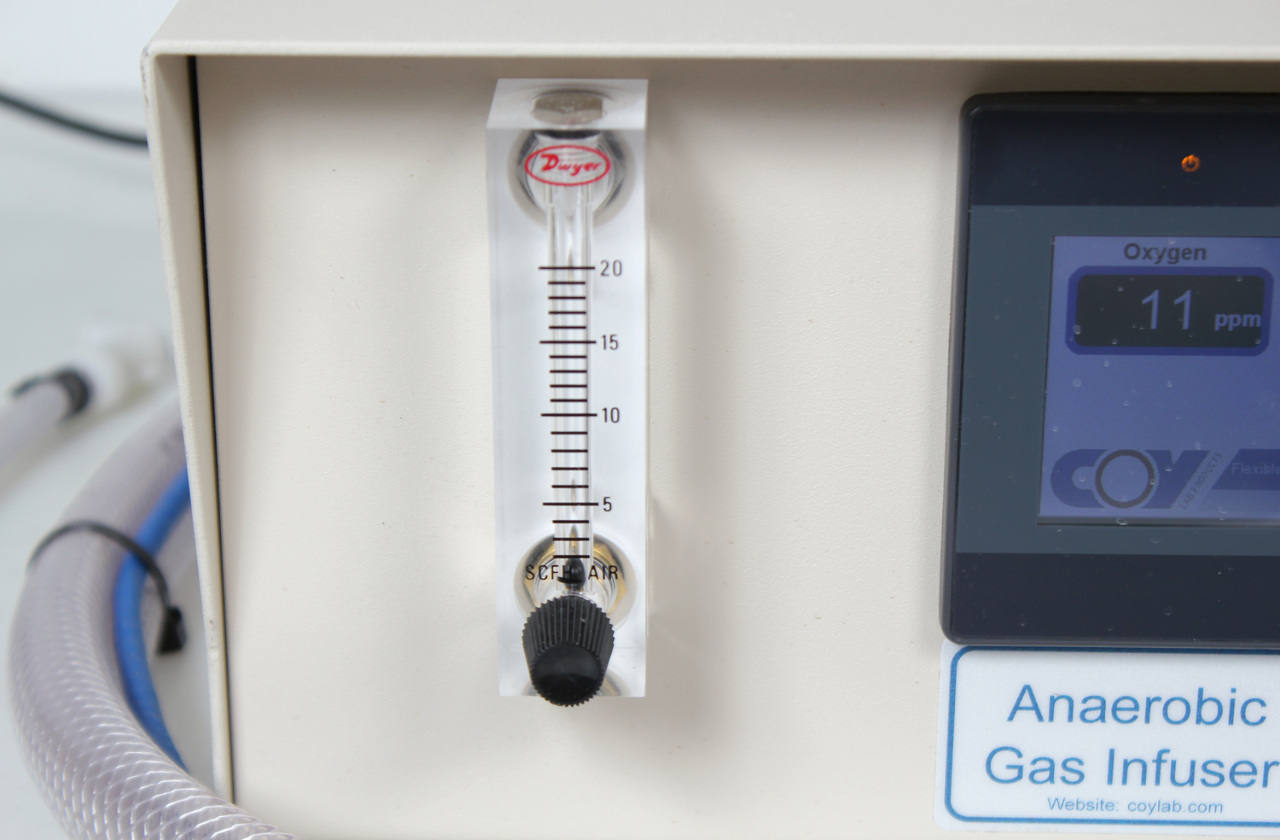

- Flow control: User-settable flow meter
- Timer alarm: Activates if the purge does not reach the target level within approximately 2.5 hours
- Power: Approximately 15 W
- Input voltage: 100–240 VAC
- Frequency: 50–60 Hz
- Operating environment: 15–42 °C; up to 90% relative humidity, non-condensing
- Dimensions: 10.5 in W × 11.75 in D × 7 in H
- Operational depth: 15.0 in

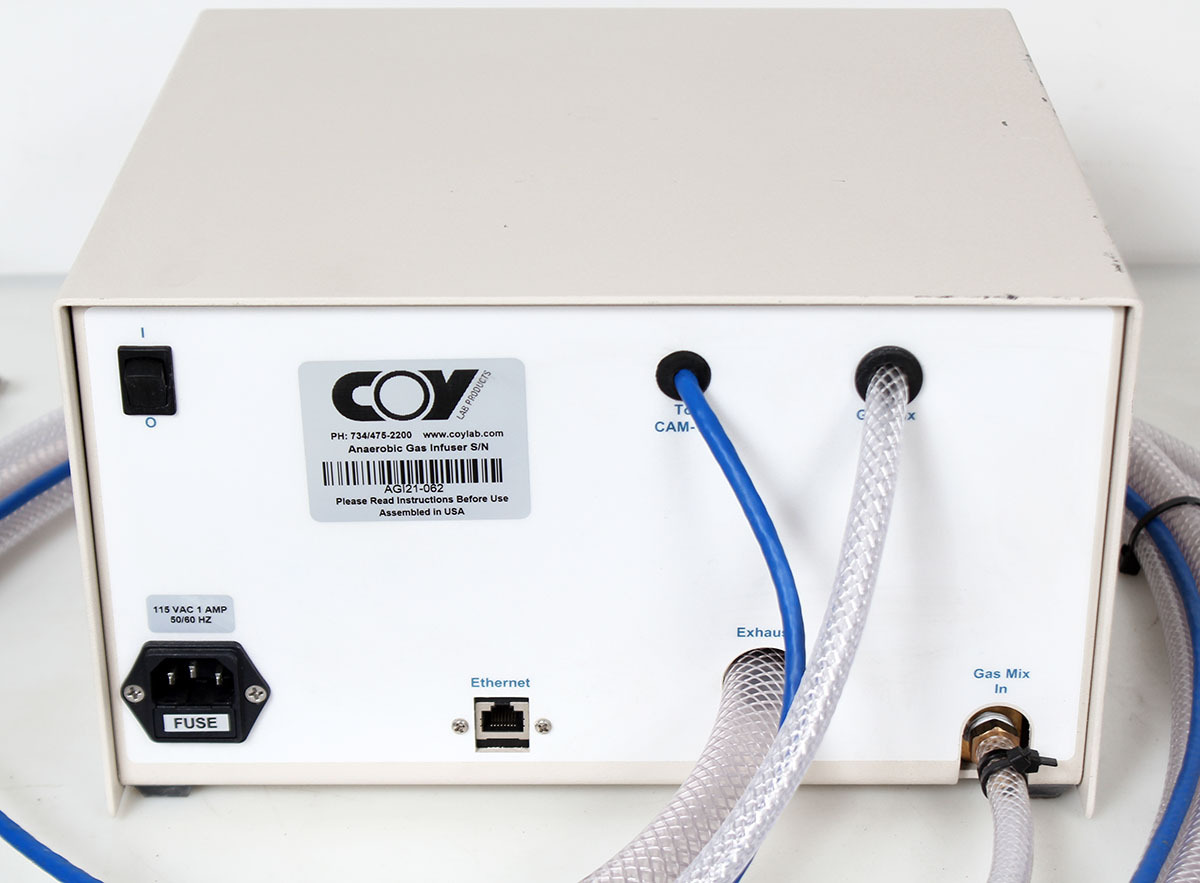

- Connections: CAM-12 Ethernet connection, gas mix inlet, chamber gas outlet, exhaust line, power inlet, and optional PC connection
