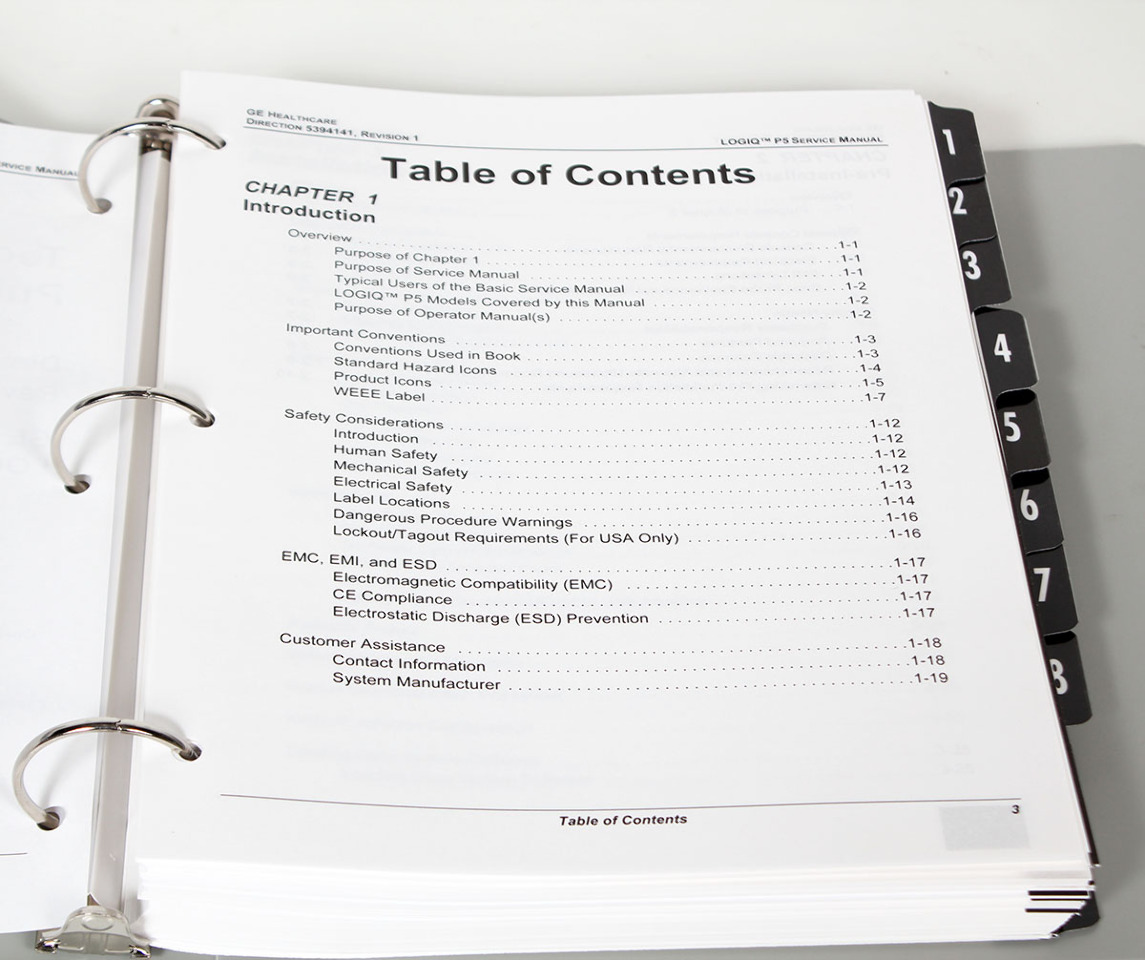

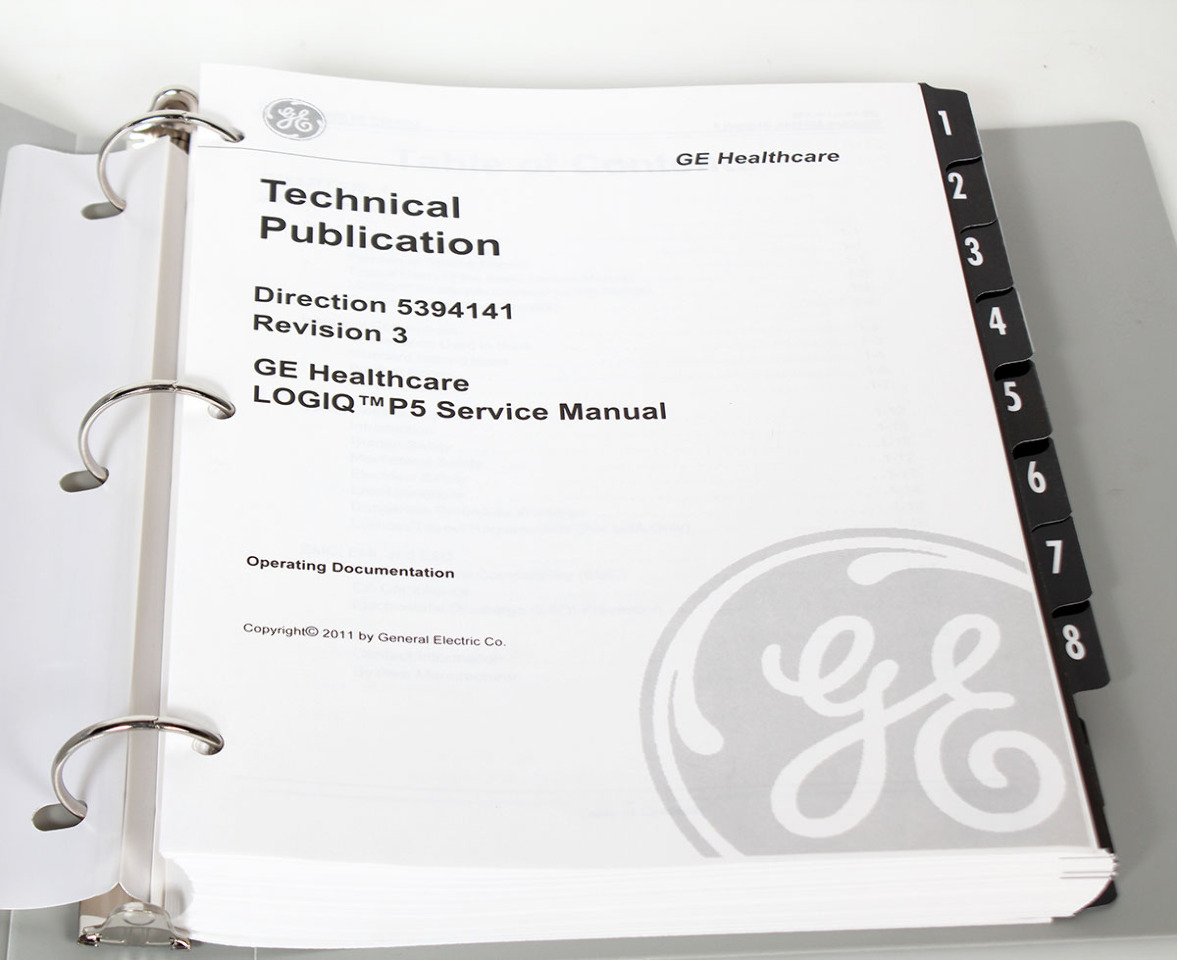

GE Medical LOGIQ P5 Service Manual Ver 3, 5394141 Revision 3

$50.00

SocoTek Observations

Clean and complete. Comes exactly as shown.

Hassle-Free Warranty


Logiq P5 Manufacturer Description

The GE LOGIQ P5 is a high-performance, highly mobile multipurpose color Doppler ultrasound imaging system. Designed for a broad range of clinical applications—including OB/GYN, Cardiac, Vascular, and Abdominal—it utilizes GE’s TruScan Architecture for exceptional image quality and raw data processing. Its compact footprint and 15-inch LCD monitor on an articulating arm make it ideal for small exam rooms and point-of-care environments.

Technical Specifications

  • Monitor: 15-inch TFT LCD on a tilt/swivel articulating arm.
  • Architecture: TruScan Raw Data processing with 2,560 processing channels.
  • Imaging Modes: B-Mode, M-Mode, Color Flow Mode (CFM), Power Doppler Imaging (PDI), and PW/CW Doppler.
  • Advanced Features: Speckle Reduction Imaging (SRI), CrossXBeam compound imaging, and Auto Optimization (AO).
  • Storage & Connectivity: Integrated 80GB+ HDD, DVD-R/W drive, and DICOM 3.0 connectivity.
  • User Interface: Full alphanumeric keyboard with 8-step TGC pods and user-defined keys.
  • Probe Ports: 3 Active Probe Ports for seamless transducer switching.
  • Physical: Lightweight design (approx. 165 lbs) with integrated locking wheels and rear handle.

Clinical Applications

  • Obstetrics & Gynecology (4D capable)
  • Vascular & Small Parts (Breast, Thyroid, Testicular)
  • Cardiology (Stress Echo & TVI capable)
  • Urology & Musculoskeletal (MSK)
  • General Abdominal & Pediatric Imaging
