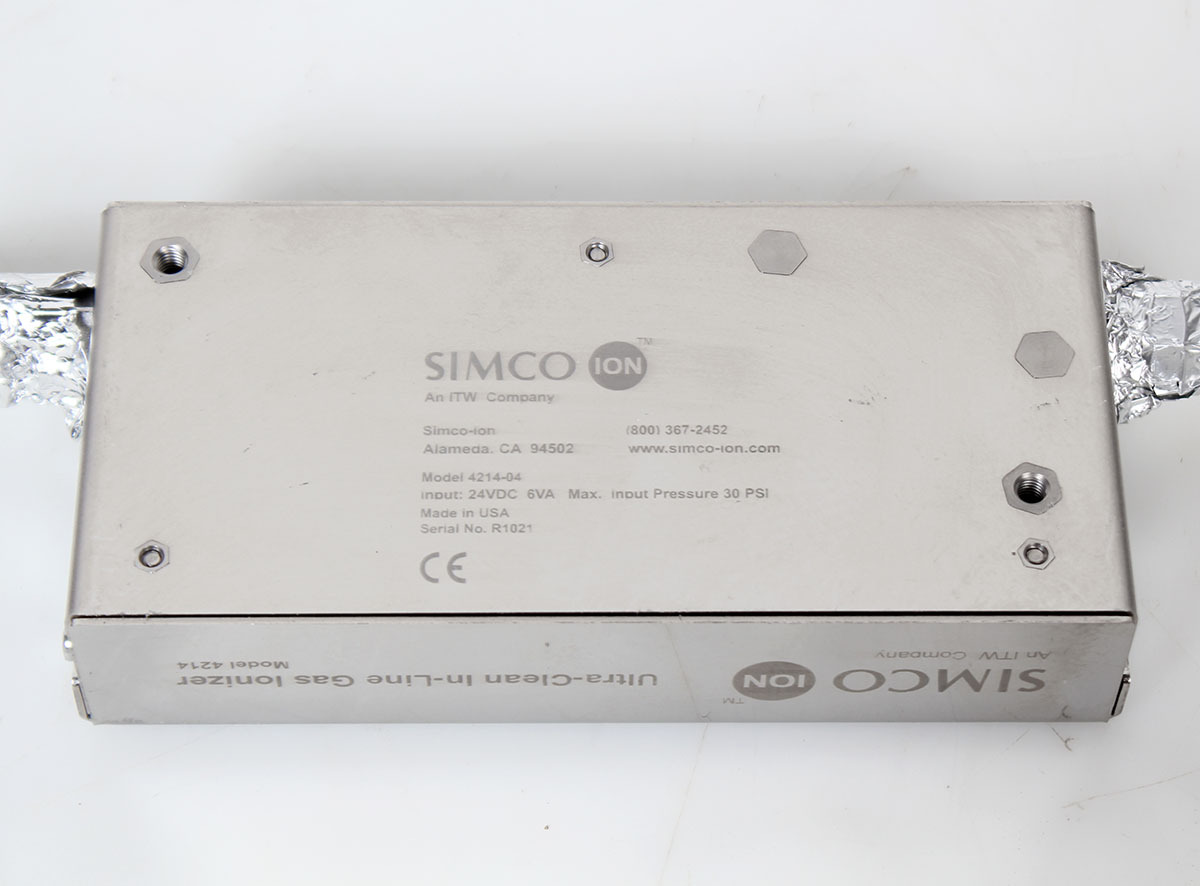

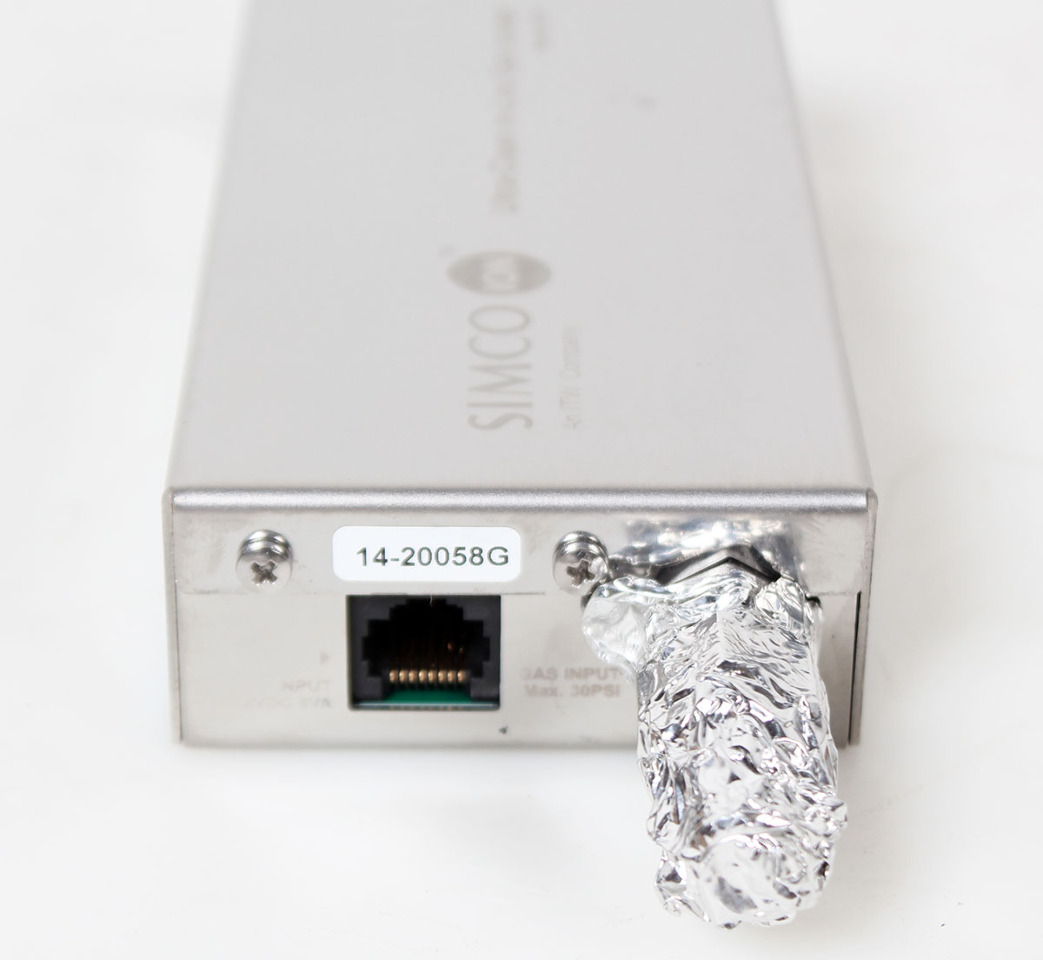

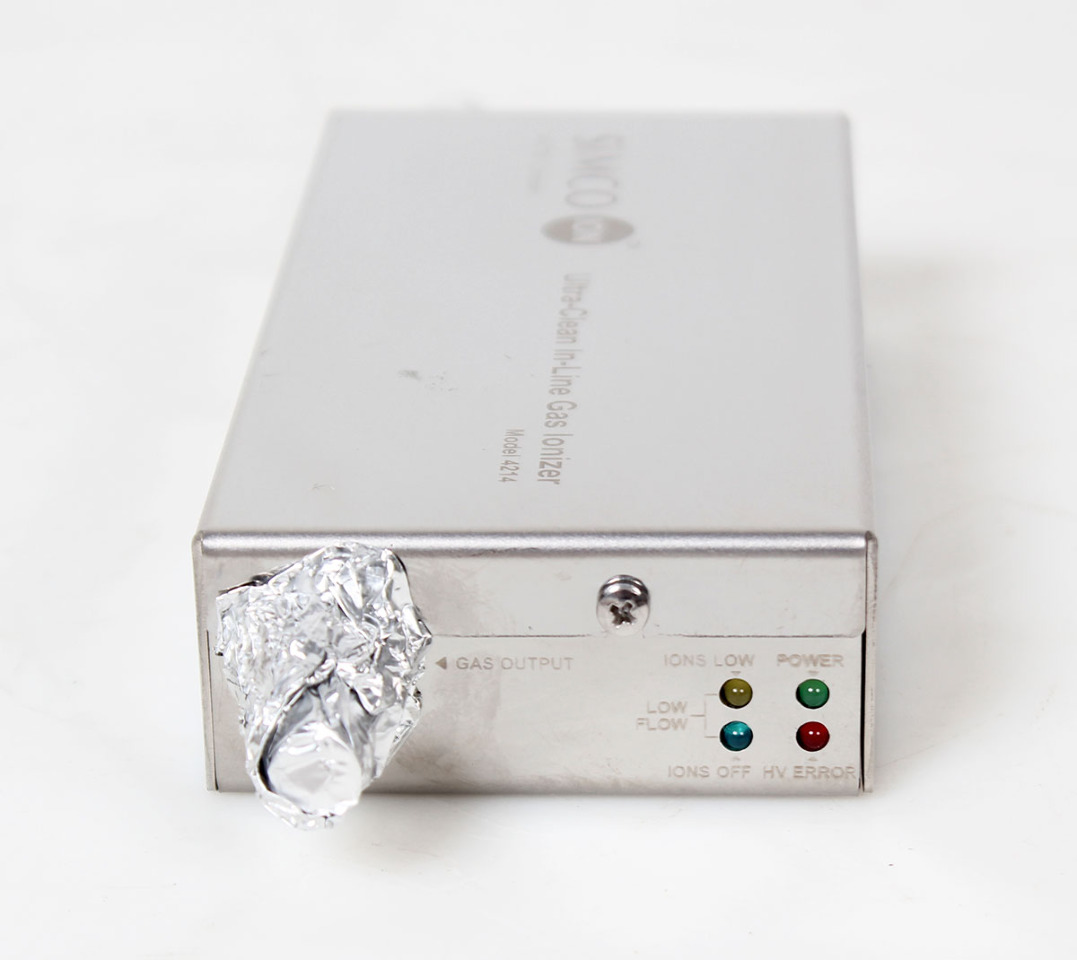

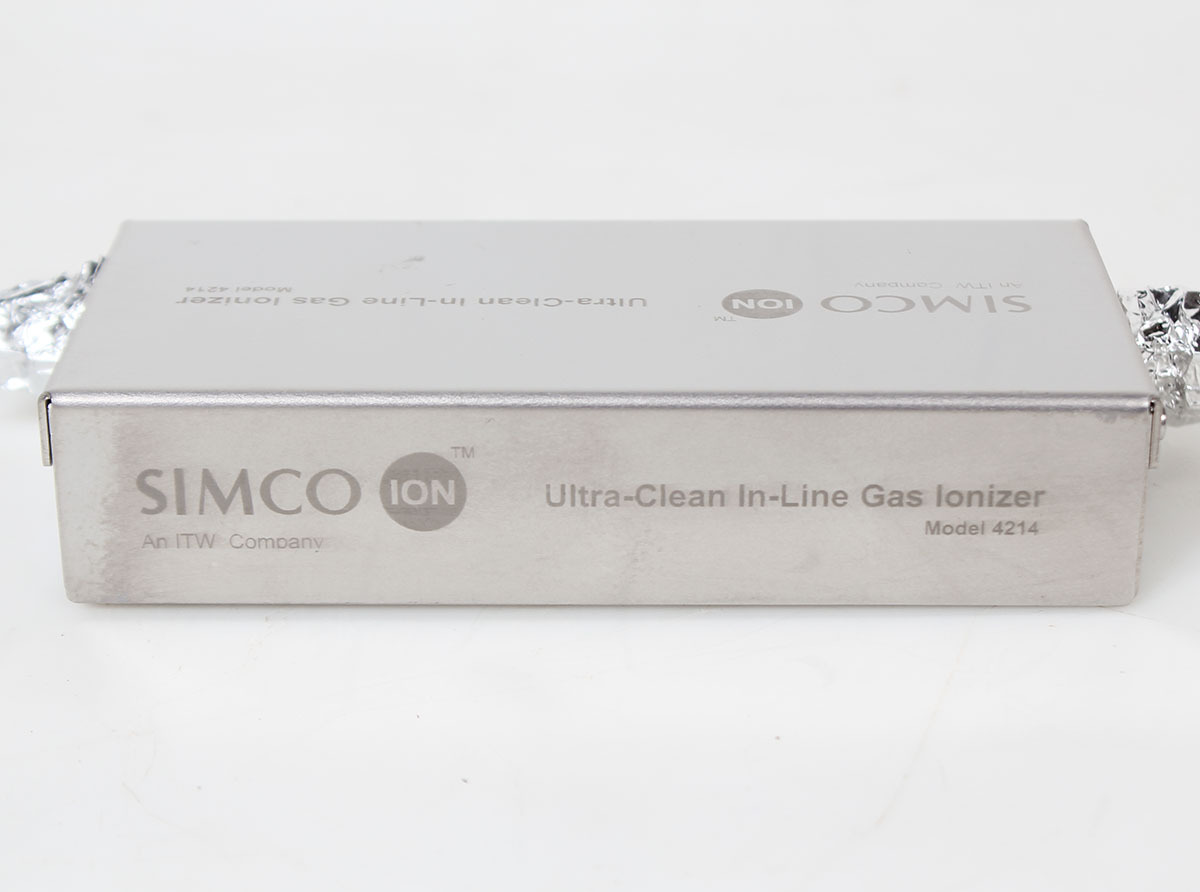

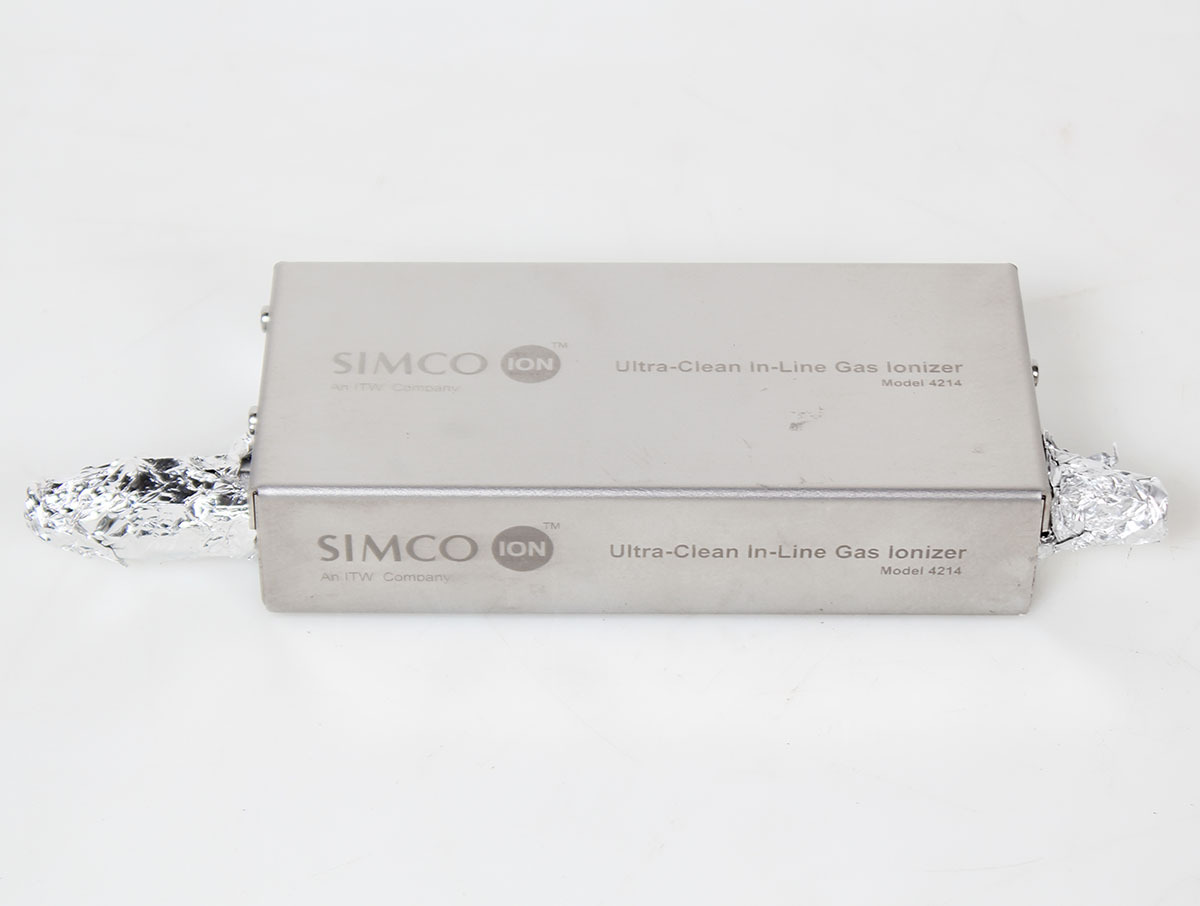

ITW Simco-Ion Ultra-Clean Nitrogen In Line Gas Ionizer 4214
ITW Simco-Ion Ultra-Clean Nitrogen In Line Gas Ionizer 4214ITW Simco-Ion Ultra-Clean Nitrogen In Line Gas Ionizer 4214ITW Simco-Ion Ultra-Clean Nitrogen In Line Gas Ionizer 4214ITW Simco-Ion Ultra-Clean Nitrogen In Line Gas Ionizer 4214ITW Simco-Ion Ultra-Clean Nitrogen In Line Gas Ionizer 4214

ITW Simco-Ion Ultra-Clean Nitrogen In Line Gas Ionizer 4214

$120.00

Clean and in excellent condition from a working system that was dismantled during a facility closure.

Ports have been sealed since removal.

Hassle-Free Warranty.



Manufacturer Description

Providing Clean Ionization for any Ultra-clean Process

Simco-Ion, Technology Group's In-line Ultra-clean Nitrogen Ionizer Model 4214 is specifically designed to ionize a nitrogen gas flow in ultra-clean semiconductor or other high purity processes. Unlike other nitrogen ionizers which depend on the trace gases in the nitrogen stream to produce ionization, this state-of-the-art product ionizes nitrogen molecules using a small but efficient power supply.

  • Extended ISO Class 1 cleanliness
  • Alarms indicating low ion output (maintenance required), high voltage power supply failure, and low gas flow
  • Standby mode
  • Self-balanced ionization
  • Auto shutoff with low gas flow
  • Compact size
  • +24 VDC Input Power

Specifications
Input Voltage +24 VDC, ±5% @ 0.25 A, 6W (typ)
Discharge Without Manifold: ±1000-100V, <10 sec (typ), measured @ 6” (15.2 cm) to CPM, nitrogen flow rate 1.4 cfm @ 5.3 psi (40 lpm @ 36.5 kPa) With Manifold: ±1000-100V, <100 sec (typ), measured @ 19.6” (49.8 cm) with custom manifold
Balance ±25V or less range with no output manifold
Ion Emissions High Frequency AC Technology
Cleanroom Class ISO 14644-1 Class 1 (0.1 μm particles) & Extended ISO Class 1
(0.01 μm particles)
Dimension 6.01”L x 2.86”W x 1.26”H (15.2 x 7.26 x 3.20 cm) without manifold
Weight 1.4 lb (0.64 kg) without manifold
