Clean and in excellent condition. This system was pulled from a premiere state facility with a regular maintenance schedule. The system was working beautifully at the time of decommissioning.

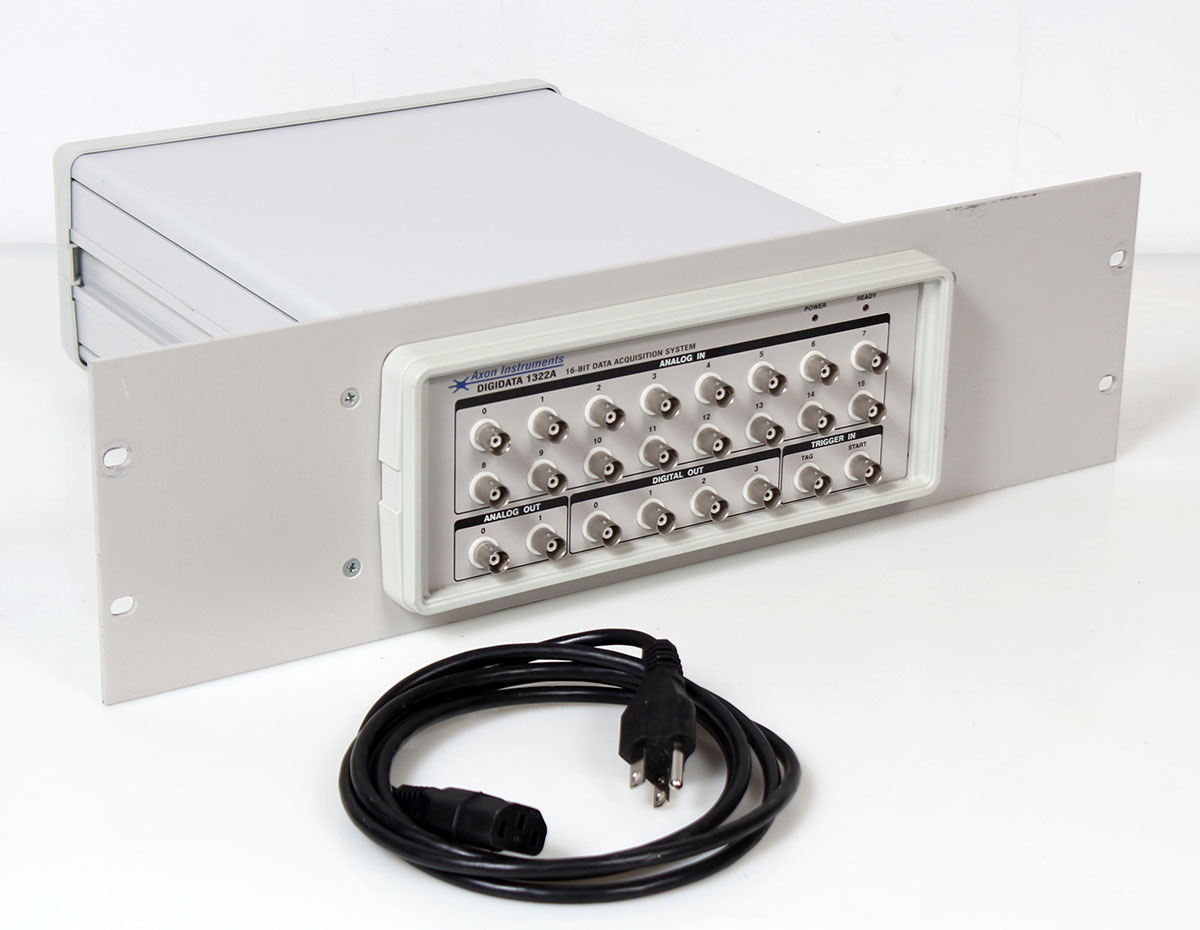

Comes as shown with power cable.
Hassle-Free Warranty
Manufacturer Description

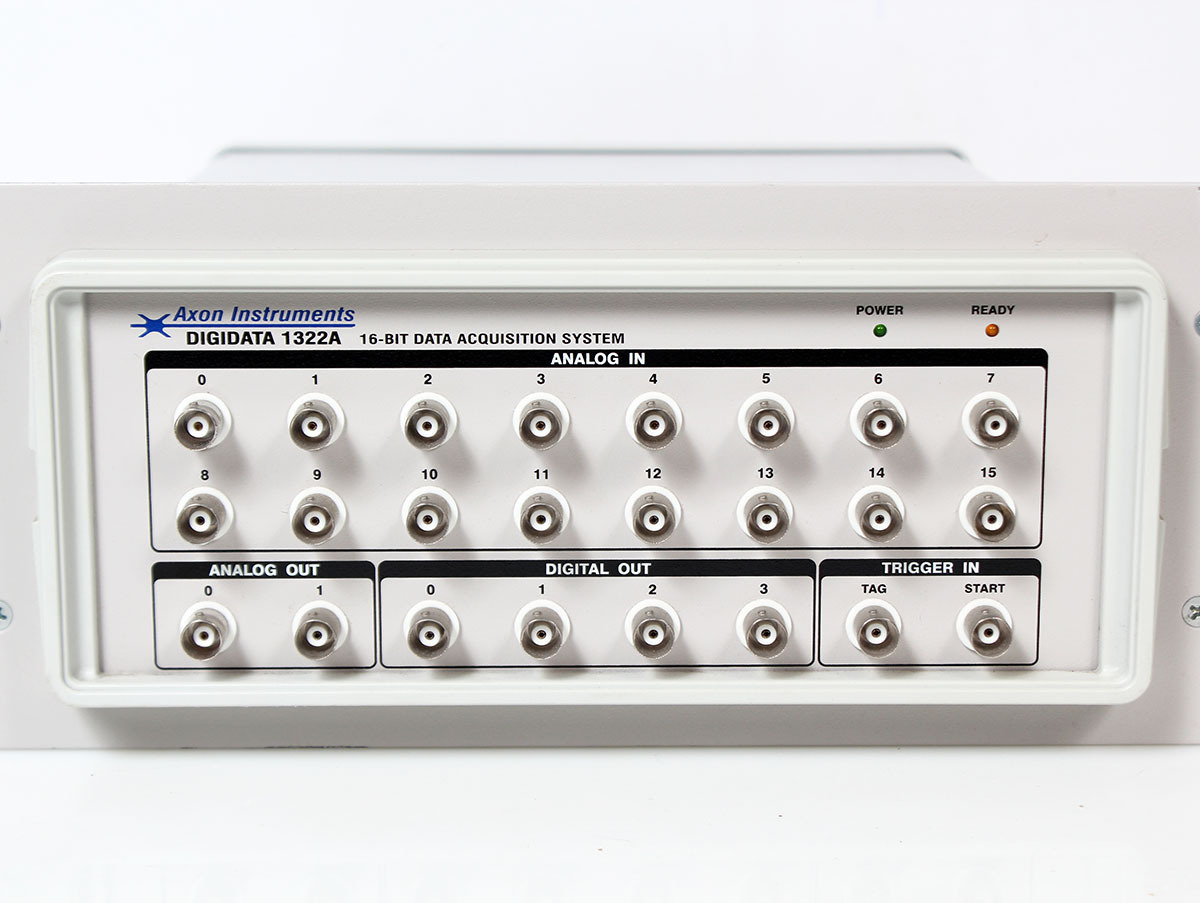

The Axon Instruments Digidata 1322A 16-Bit Acquisition System is a high-resolution, low-noise digitizer intended for precision scientific applications. The Digidata 1322A digitizes at an aggregate speed of 500 kHz. It provides sixteen multiplexed, 16-bit analog inputs and two non-multiplexed, 16-bit analog outputs. There are sixteen digital input lines and sixteen digital output lines, as well as Tag and Start digital inputs.
The Digidata 1322A communicates with the host computer through the SCSI bus. To minimize the likelihood of installation or performance problems, every Digidata 1322A is supplied from the factory with a SCSI adapter card that should be installed into the computer, although you may choose to use an existing SCSI port.
The Digidata 1322A is compatible with both the Windows and Macintosh operating systems. It is a plug-and-play device; it is automatically recognized by Windows 95, 98, and 2000. The Digidata 1322A is supported by Clampex 8, AxoScope 8, and AxoGraph 4.2 (and higher versions). AxoScope is an easy-to-use, full-featured data acquisition program for Windows.
The Digidata 1322A has higher speed, lower noise and better resolution (greater dynamic range) than the previous Digidata 1200 models. New features also include better instrument telegraph support and line-frequency triggering.
- Sixteen Multiplexed 16-Bit Analog Inputs
- Two Non-Multiplexed 16-Bit Analog Outputs
- Sixteen Digital Inputs
- Sixteen Digital Outputs
- Analog Inputs: 16 single-ended channels, 16-bit resolution, $\pm$10 V range.
- Analog Outputs: 2 channels, 16-bit resolution, $\pm$10 V range.
- Sampling Rate: 500 kHz aggregate.
- Digital I/O: 16 digital inputs and 16 digital outputs (TTL/HC compatible).
- Interface: SCSI bus (supplied with a compatible SCSI adapter card).
- Compatibility: Windows 95/98/2000, Macintosh, supports Clampex 8, AxoScope 8, and AxoGraph 4.2.
- Dimensions/Weight: ~12 lbs
