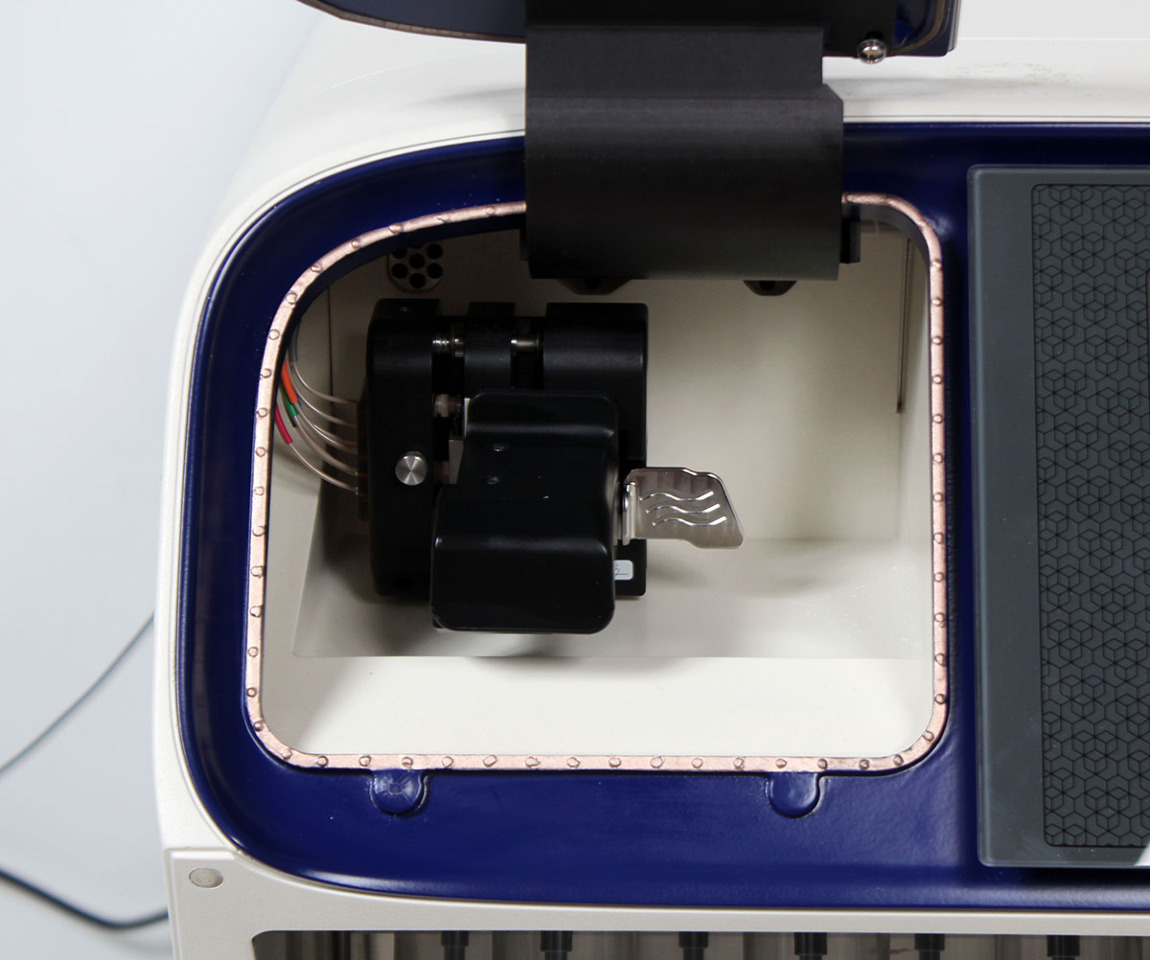

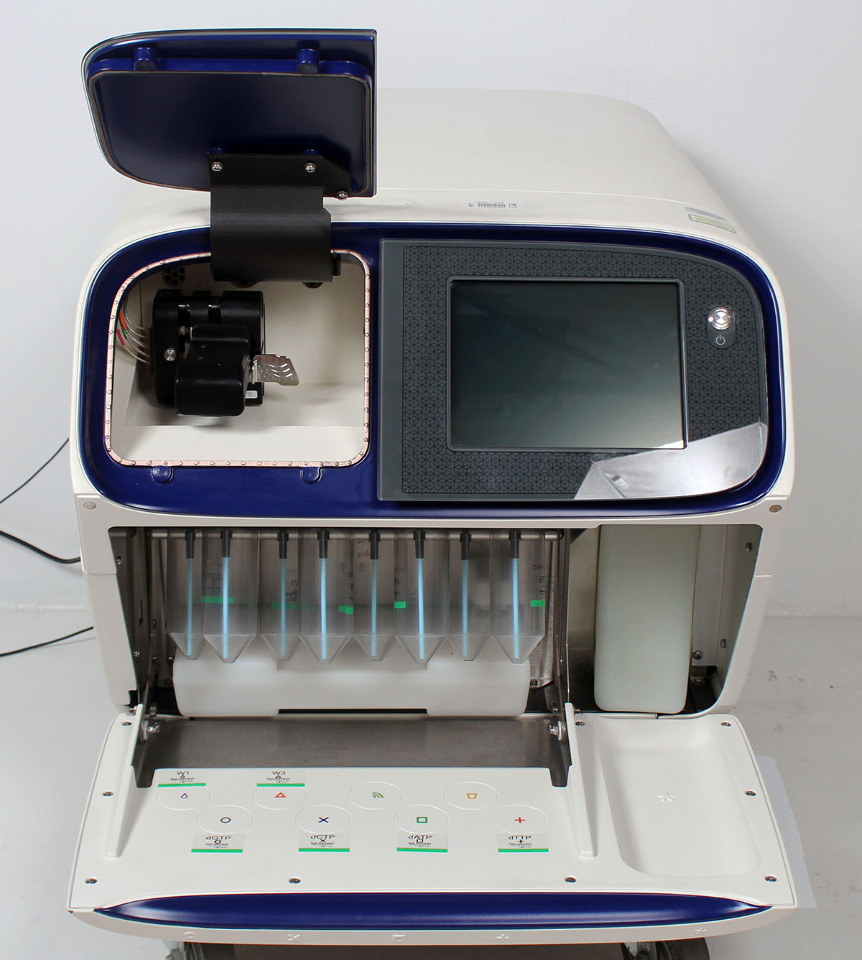

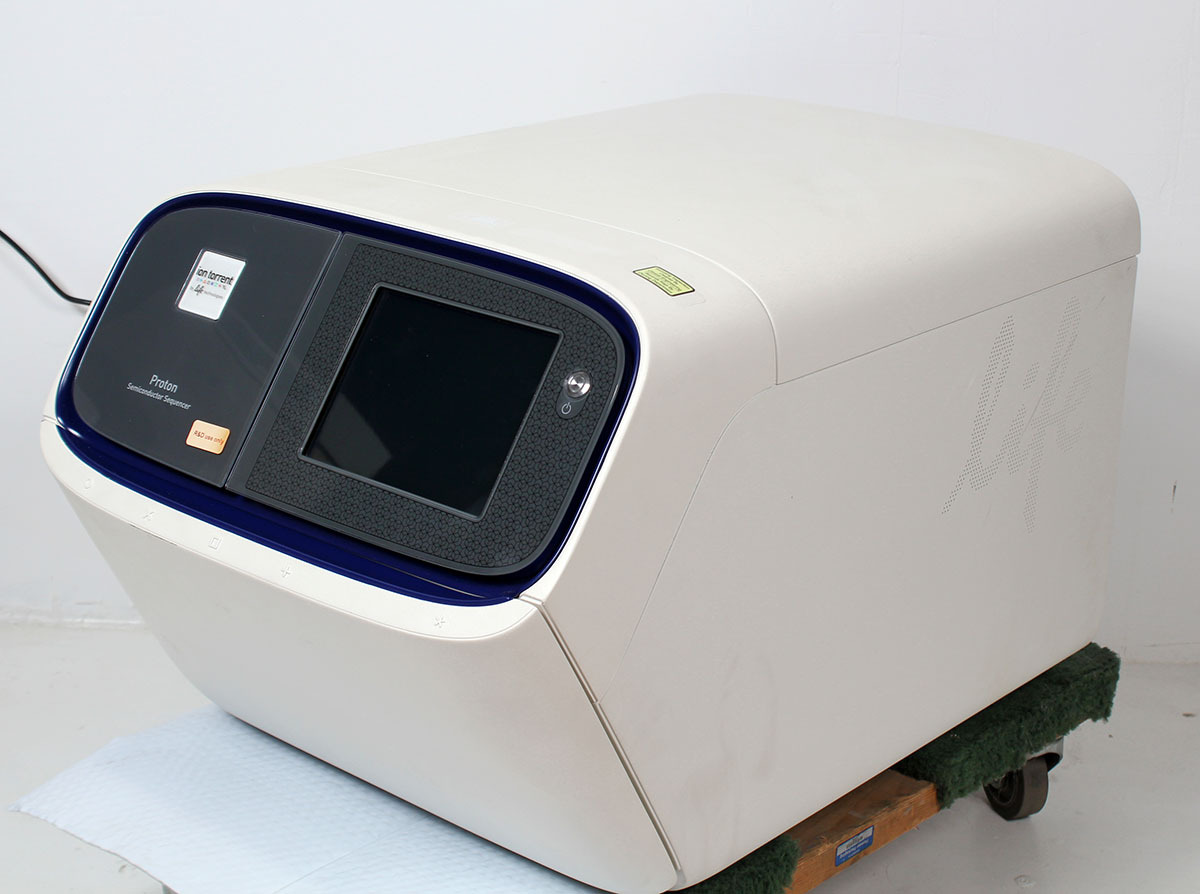

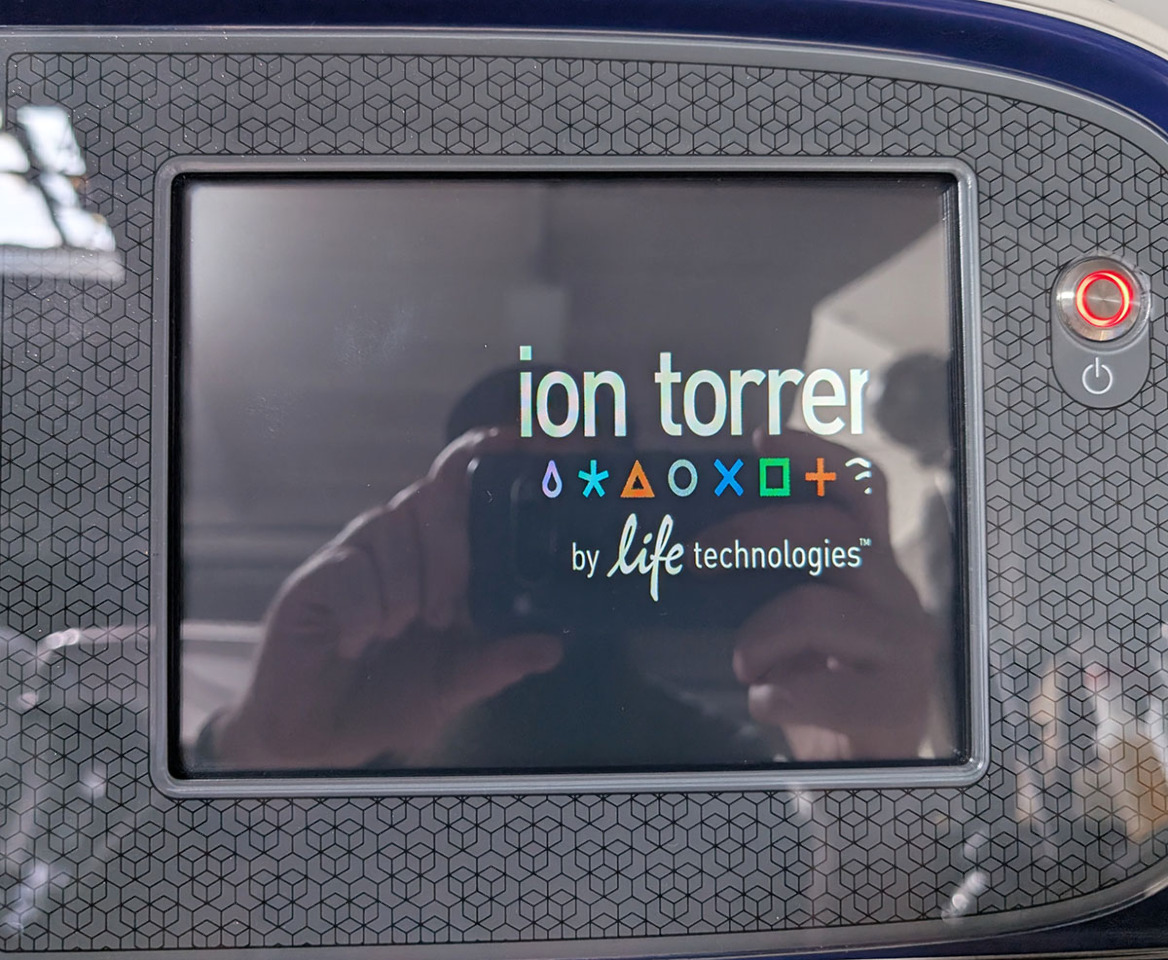

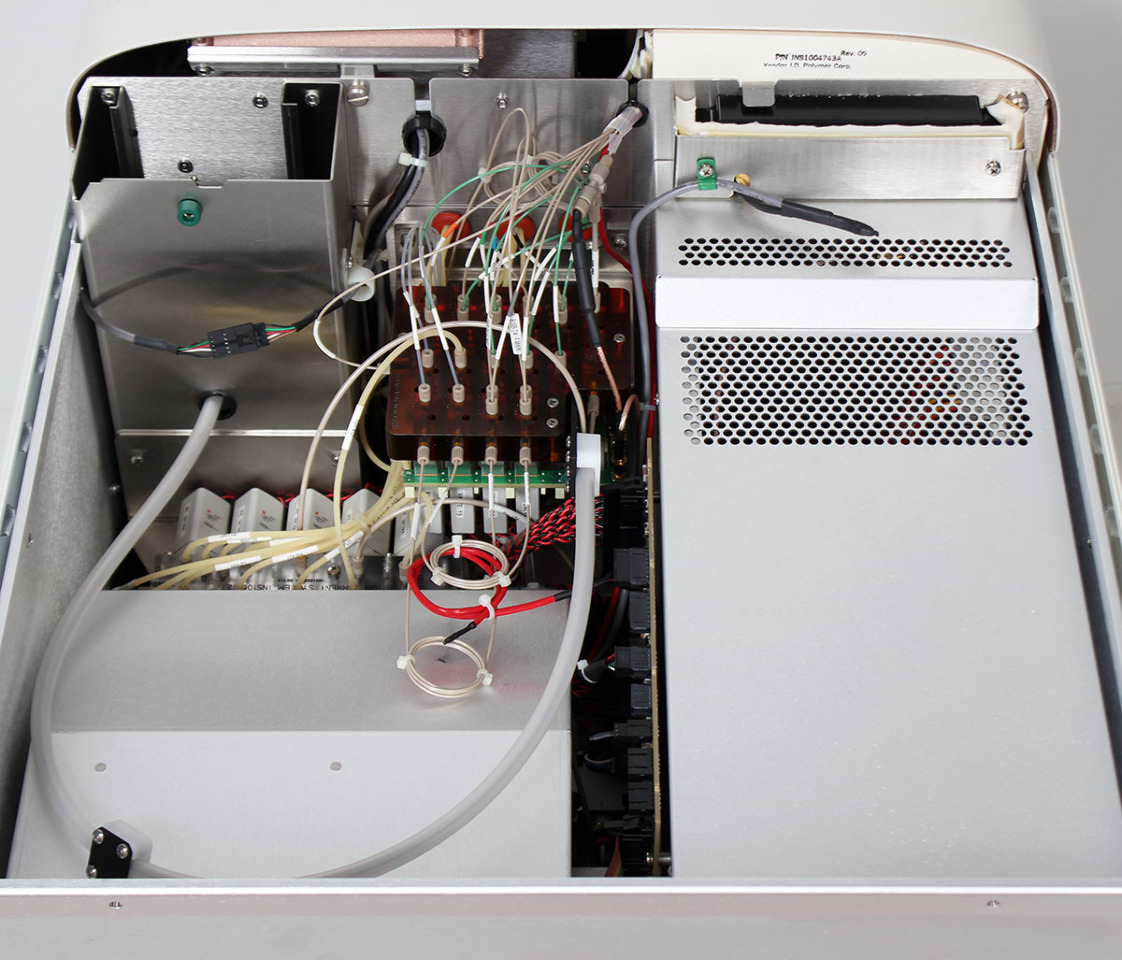

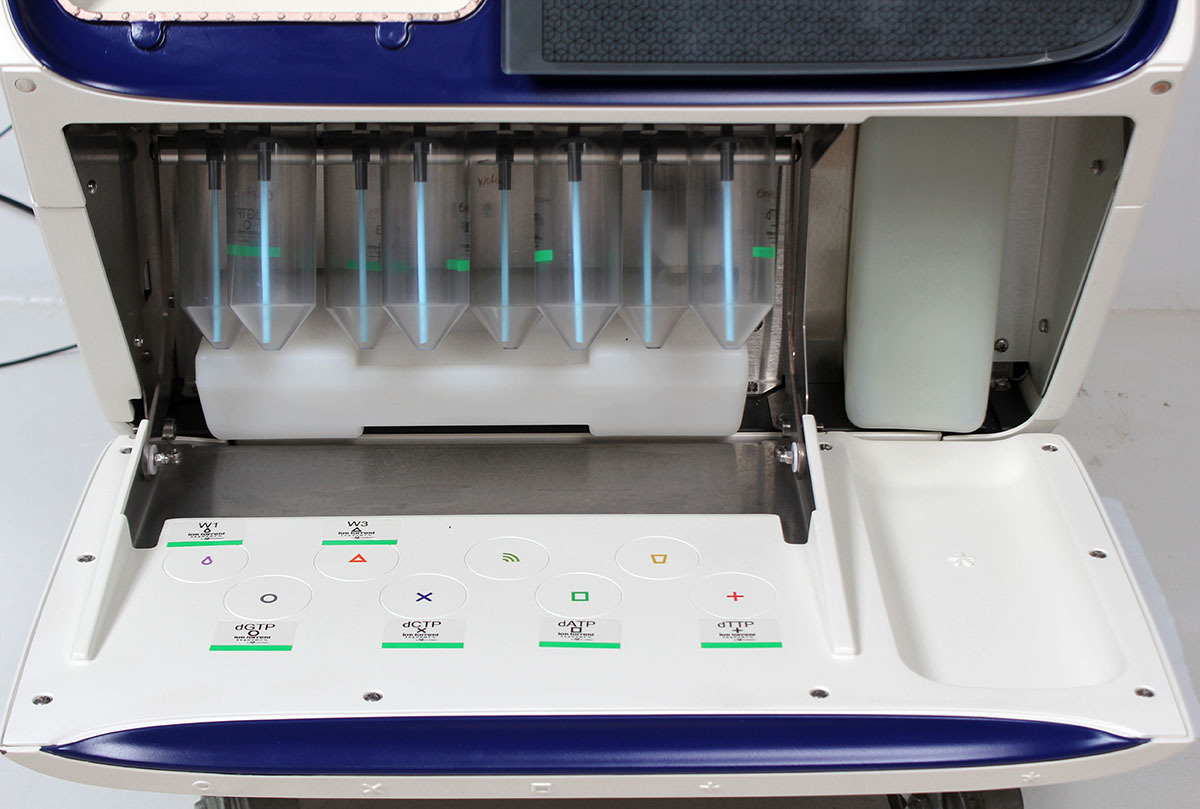

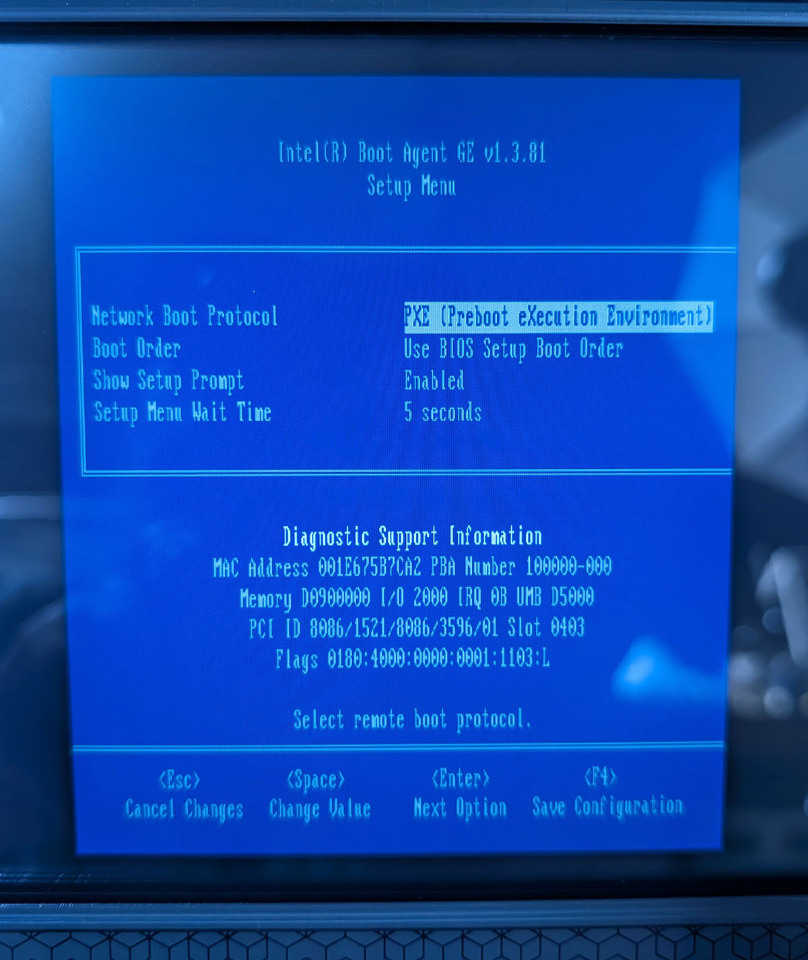

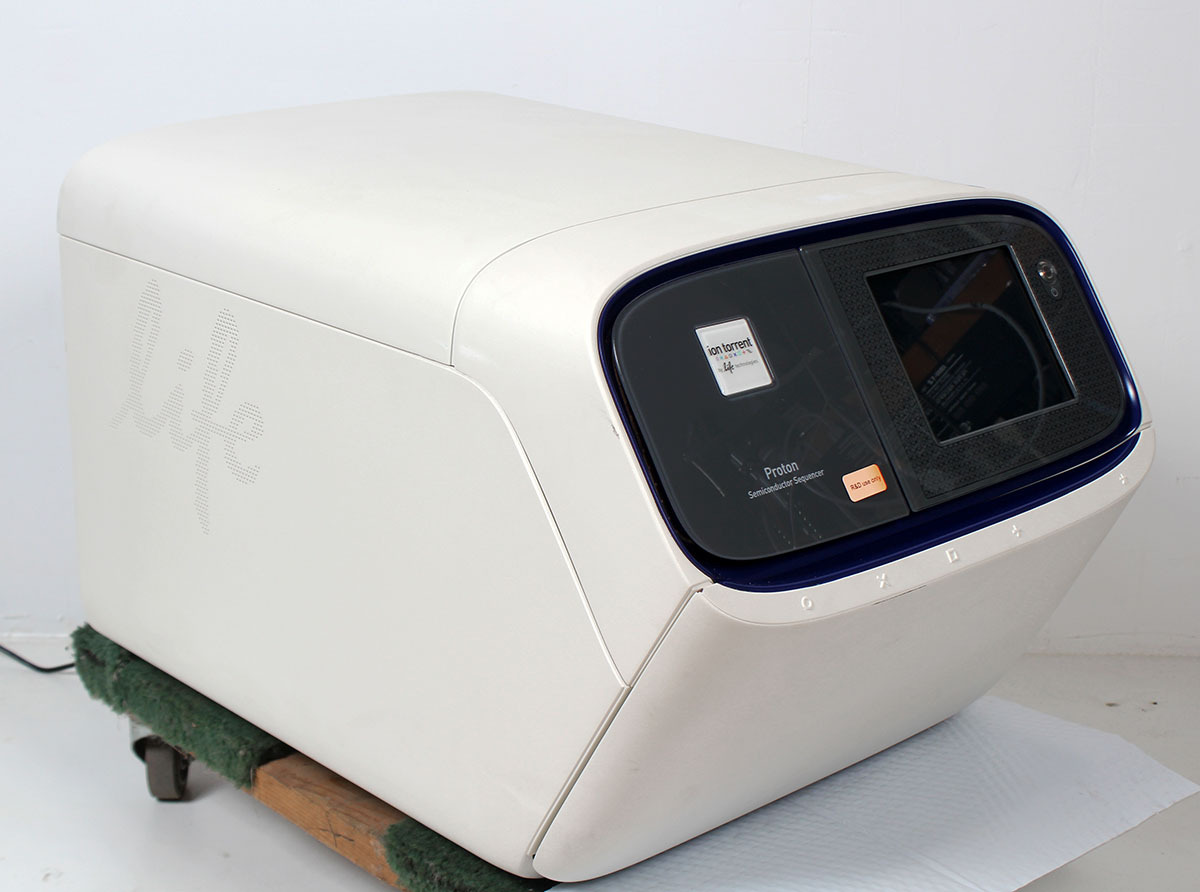

Clean and in excellent condition as shown. Pulled from a premiere state facility during a department upgrade. The system was regularly maintained and, according to the dept notes, fully functional. HIPAA regulations however seem to have obligated the removal of the drives and as such, we were unable to clinically test onsite beyond confirming power up.
Comes as shown, with AC cord.
**DUE TO SIZE and WEIGHT, WE WILL BE SHIPPING THIS VIA FREIGHT CARRIER.**
The flat rate quote is based on commercial locations in the lower 48 with fork lift or loading dock onsite. If your location is not commercial, or you need lift-gate delivery, contact us for an updated quote.
If you'd prefer to ship with your own carrier, use the following info:
Ship weight: 160lbs
Dims: 40"W, 30"L, 26"H
Commercial Pickup location: 95403 | Forklift onsite
Manufacturer Description

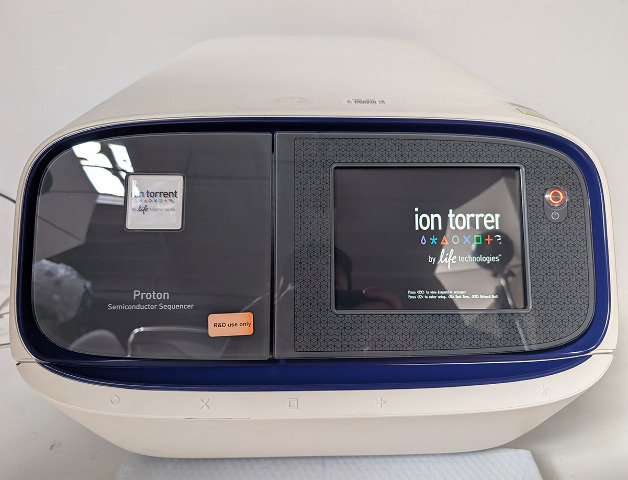

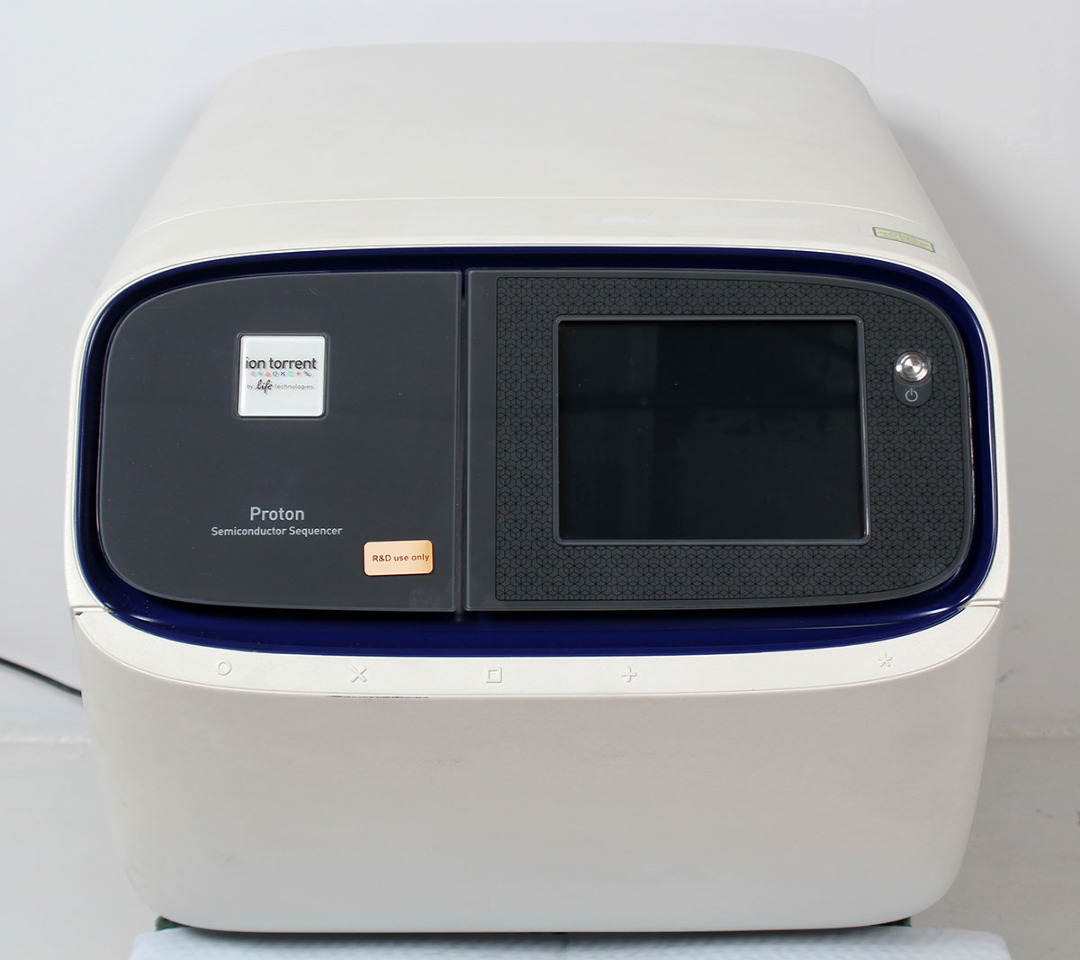

Ion Proton Semiconductor Sequencer
Ion Torrent next-generation sequencing (NGS) technology offers flexible sequencers and automation tools to help you find answers.
Discover next-generation simplicity with integrated systems for speed and power. There is no faster or simpler way to harness the power of targeted NGS than with Ion Torrent systems and their plug-and-play consumables.
Key applications
- ChIP sequencing
- Exome sequencing
- Gene expression sequencing
- De novo sequencing
- Small RNA sequencing
- Whole transcriptome sequencing
Ion Proton System performance specifications with Ion PI Chip
| Throughput | Up to 15 Gb |
| Read length | Up to 200-base fragment reads |
| Number of reads passing filter | 60-80 million reads passing filter |
| Sequencing run time | 2.5 hours |
| Barcoding solutions | 384 barcodes supported by Torrent Suite Software 96 off-the-shelf barcodes for DNA 16 off-the-shelf barcodes for RNA |
| Software solutions |
Torrent Suite Software utilizing Torrent Browser including TMAP alignment and Torrent Variant Caller for germline or somatic mutation detection. Torrent Browser (included) offers users remote web access to instrument status monitoring, run quality reports, individual data files, and extensible plug-ins for application-specific analysis. Plugins available for download from the Torrent Browser Plugin Store for analysis of genome sequencing, targeted sequencing, variant analysis and annotation, microbial sequencing, transfer to 3rd party bioinformatics packages, and more. Data can optionally flow into Ion Reporter Software for controlled analysis, annotation, and reporting of variants. Ion Reporter Software provides application specific workflows to support single, trio and paired tumor normal analysis. |
| Data formats | Industry standard FASTQ, SFF, BAM and VCF format outputs |
Specifications for the Ion Proton Sequencer
| Working environment (for indoor use only) | Temperature: 68-77° F (20-25° C) Humidity: 40-60%, noncondensing Altitude: <6,500 ft (2,000 m) Clearances: 12 in (30.5 cm) in rear
Optional rack mounting with two Ion Proton Sequencers per rack†4 in (10 cm) on left side 4 in (10cm) on right side 4 in (10 cm) from front edge of bench to sequencer bezel 36 in (90 cm) aisle in front of bench for operator access |
| Gas Supply | Connection: 0.25 in push-to-connect fitting Pressure: 30 psi Composition: nitrogen (grade 4.8, 99.998% or better) |

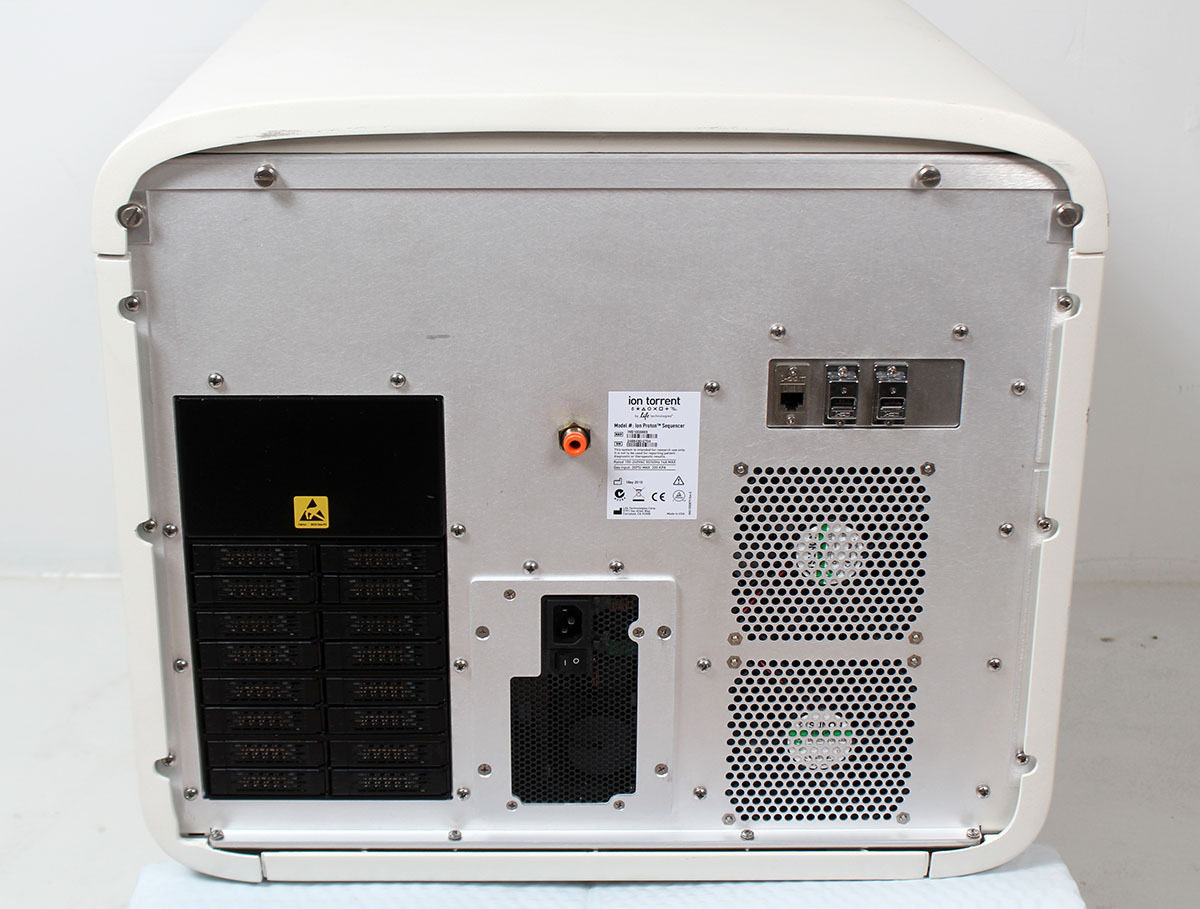

| Other connections | Ethernet: 1 GigE USB: 2x USB 2.0 |

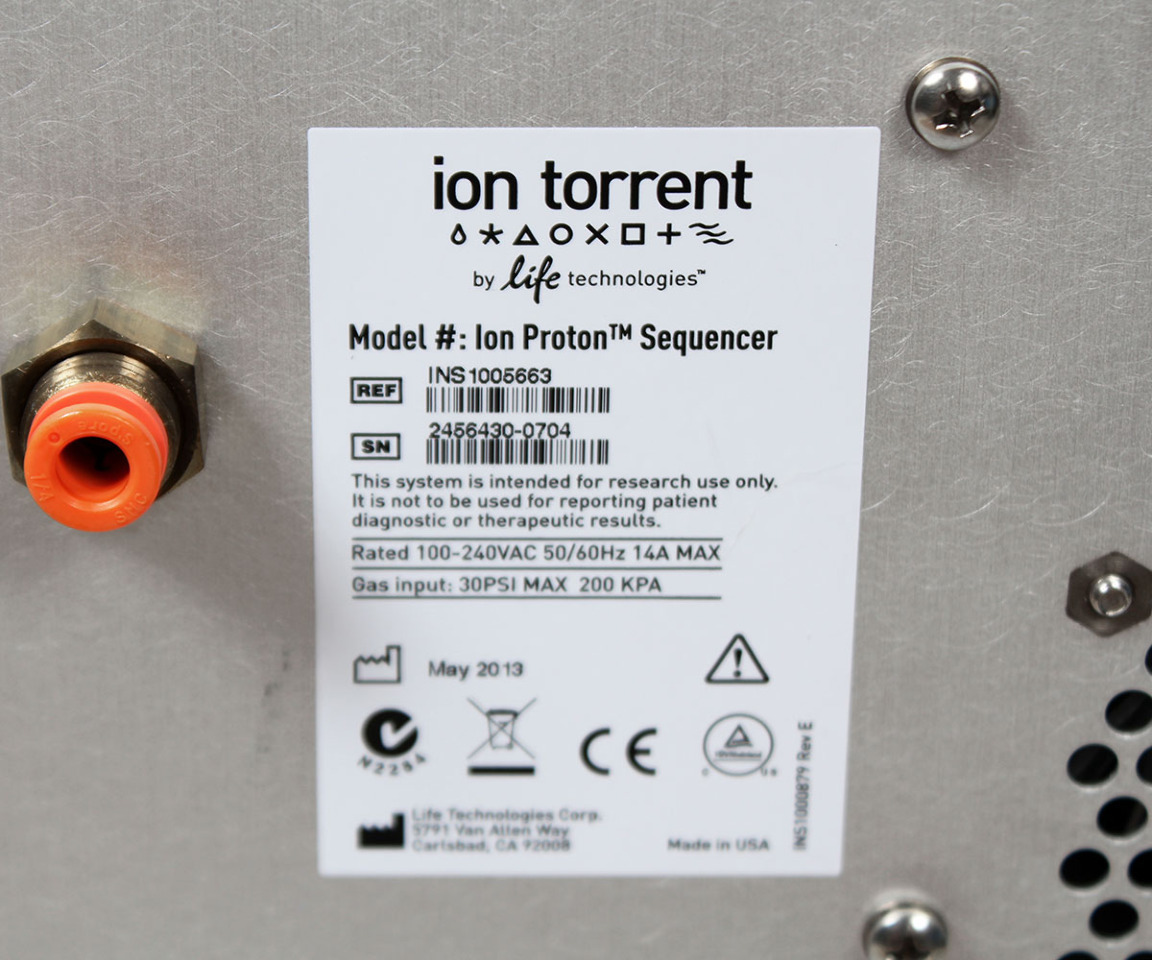

| Power | Voltage: 100 V (min) to 240 V (max) Current: 14 A (max) Frequencing: 50/60 Hz Power Draw: 1,350 W |
| Dimensions | Width: 21.3 in/54.2 cm Depth: 30.5 in/77.5 cm Height: 18.7in/47.4 cm |
| Weight | Crated for shipment: 200 lb/90.7 kg Free-standing: 130 lb/59 kg |
