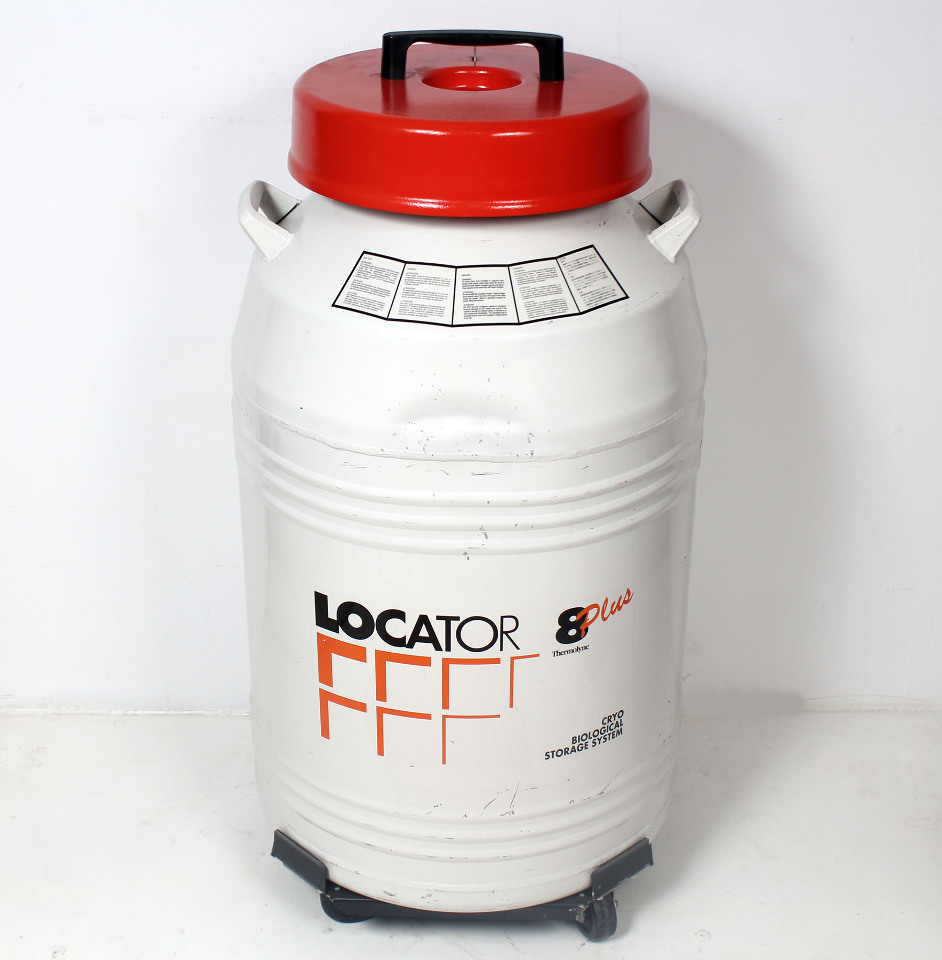

Thermo Locator 8 Plus LN2 111L Cryostorage Liquid Nitrogen Dewar

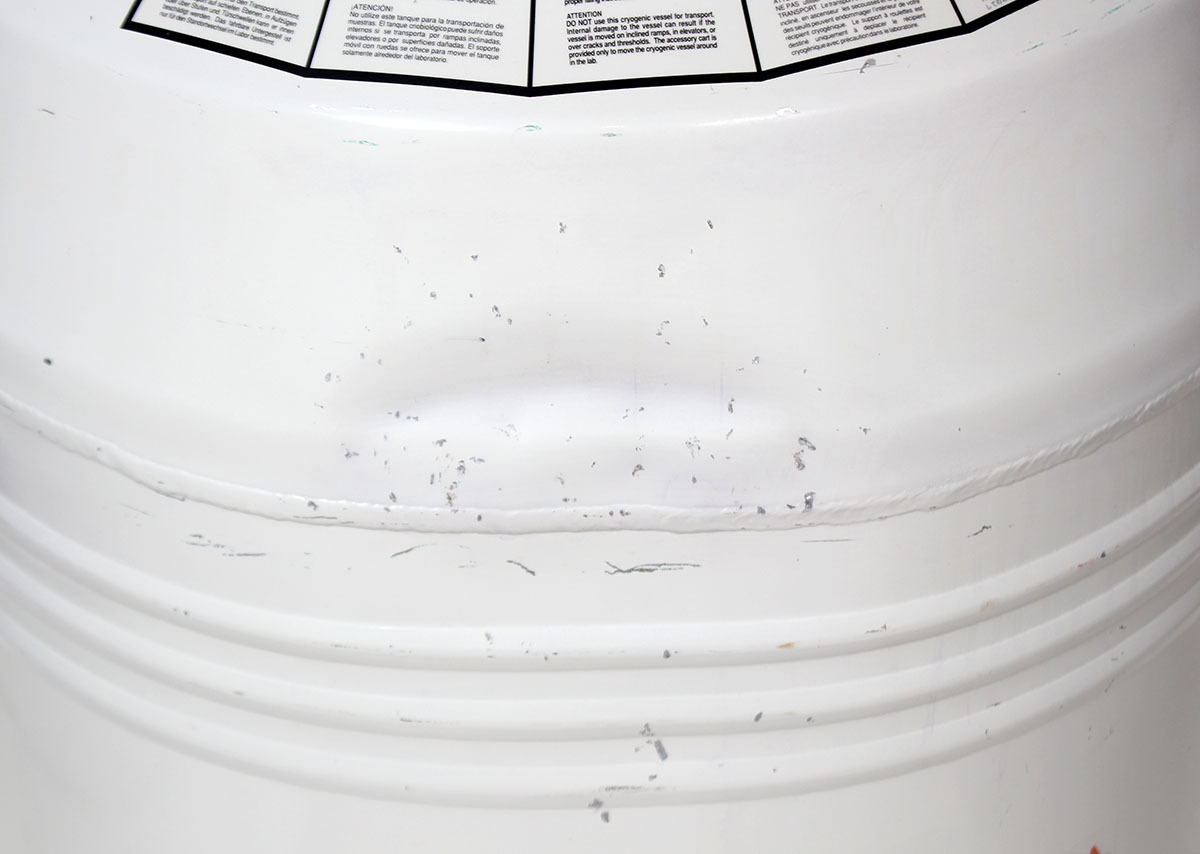

Clean and in good condition. The dewar took a hit in storage but does not appear to have suffered any vacuum loss.

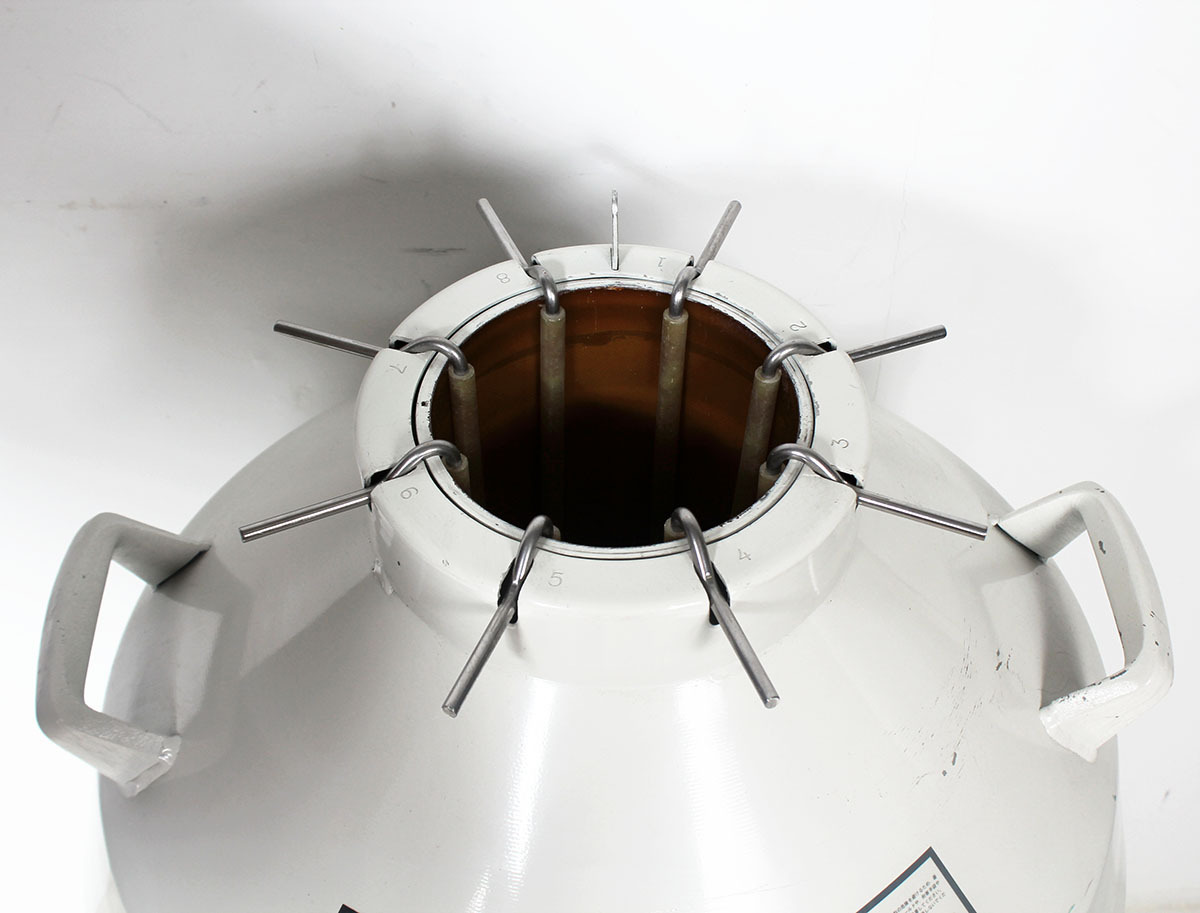

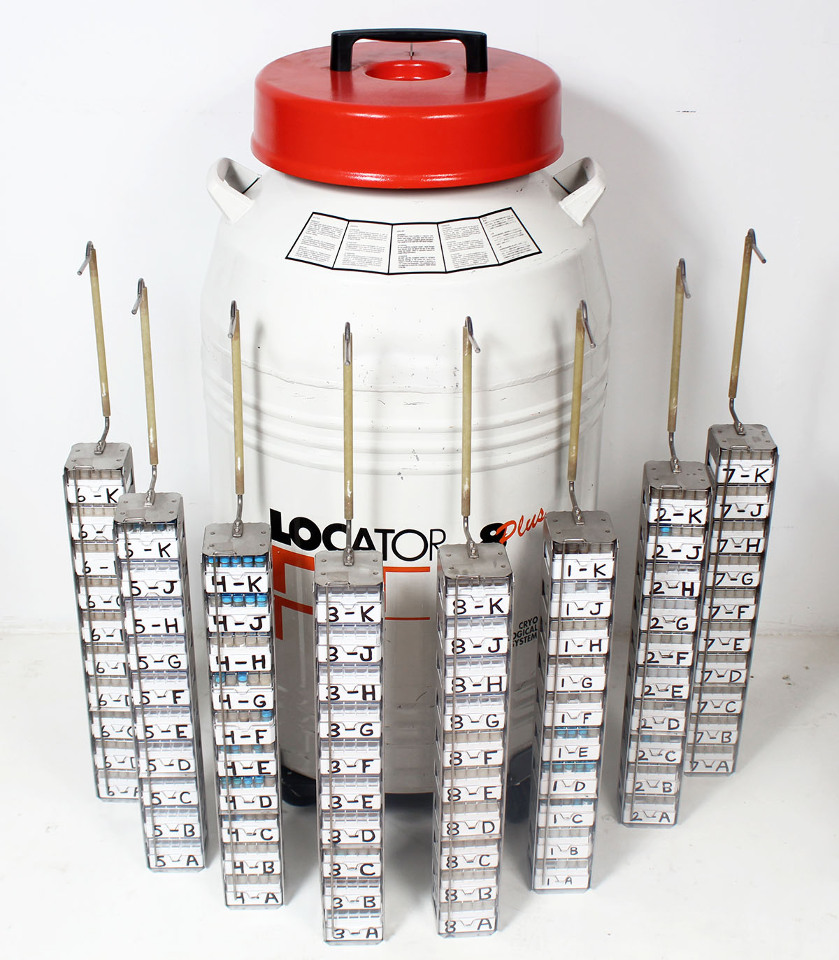

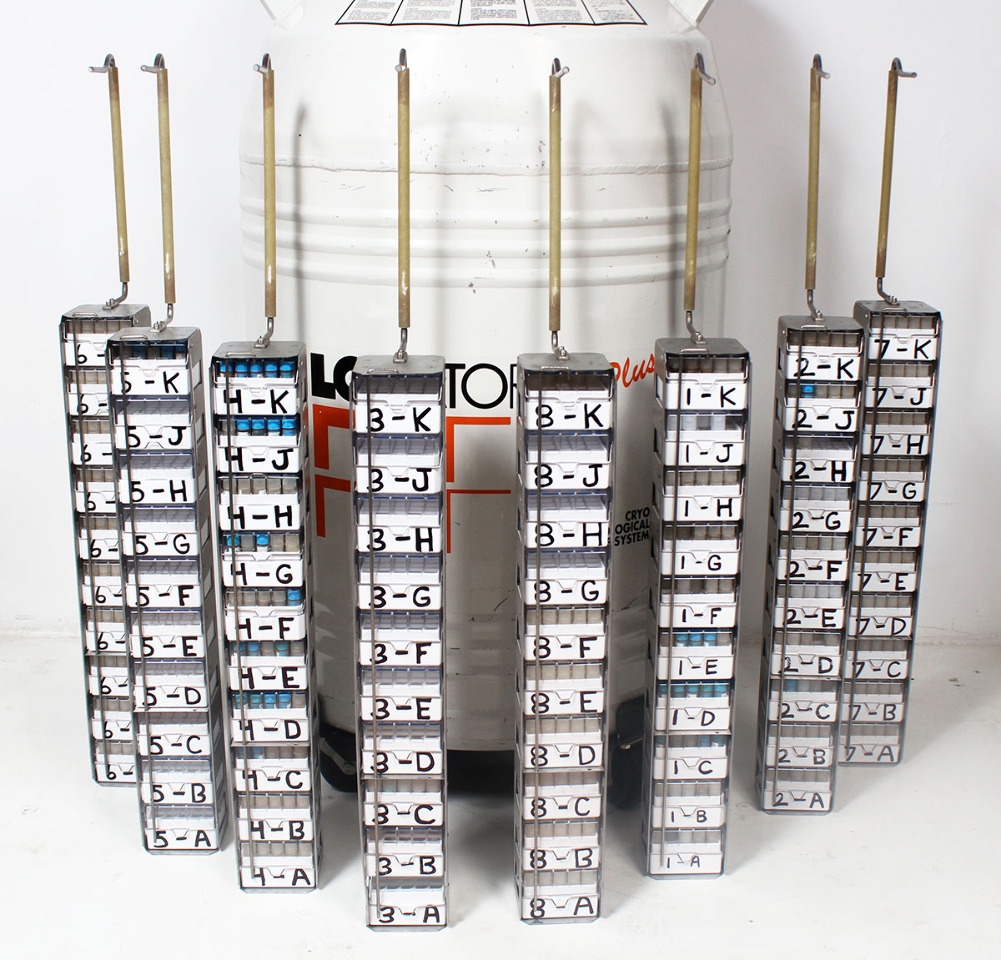

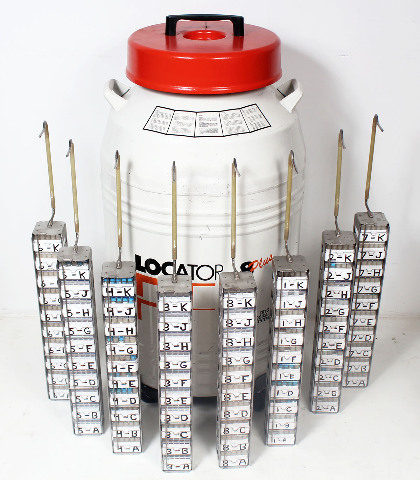

8 stainless hanging sample racks along with a full stack of storage boxes as shown. Some sample tubes which appear to be empty but these will all be disposed of before shipping just in case.

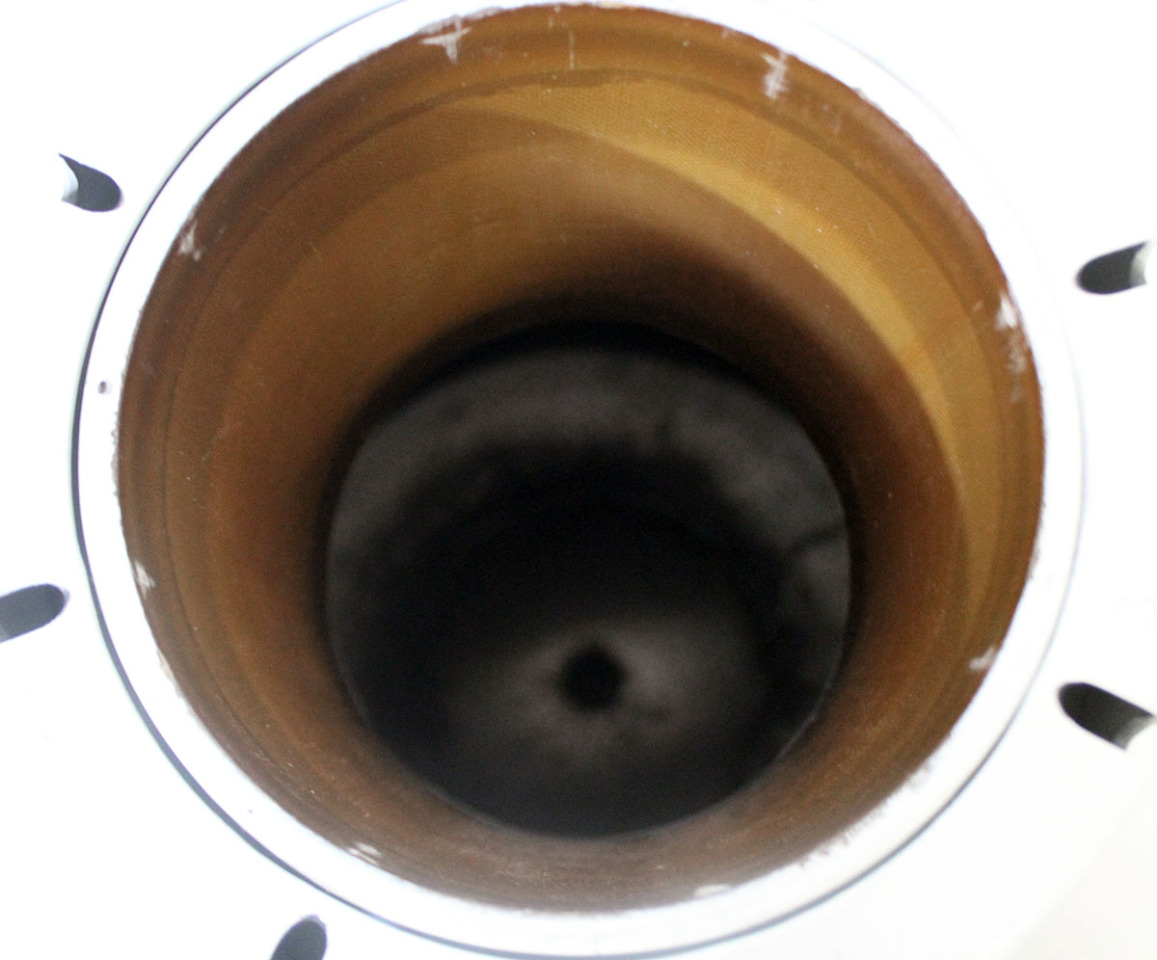

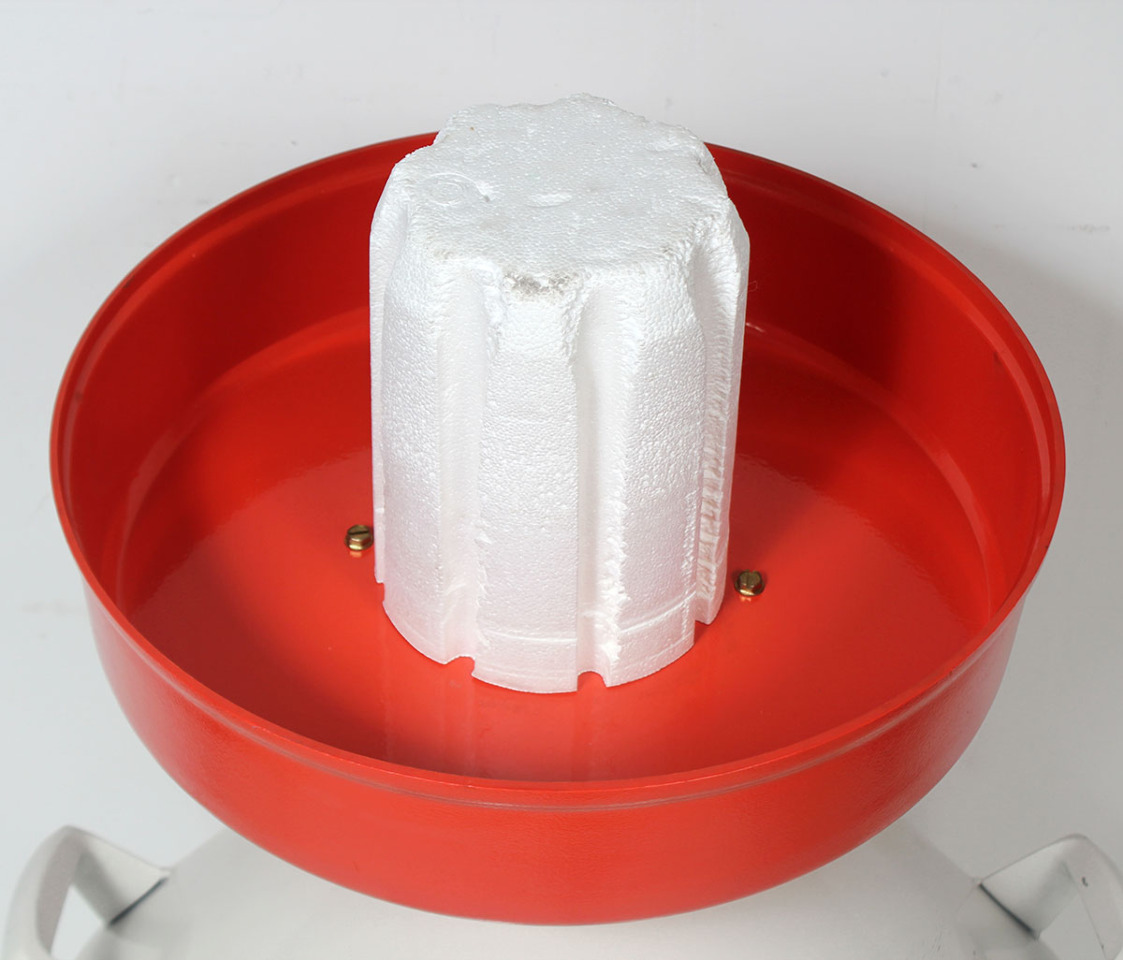

Lid and necktube core in good shape.

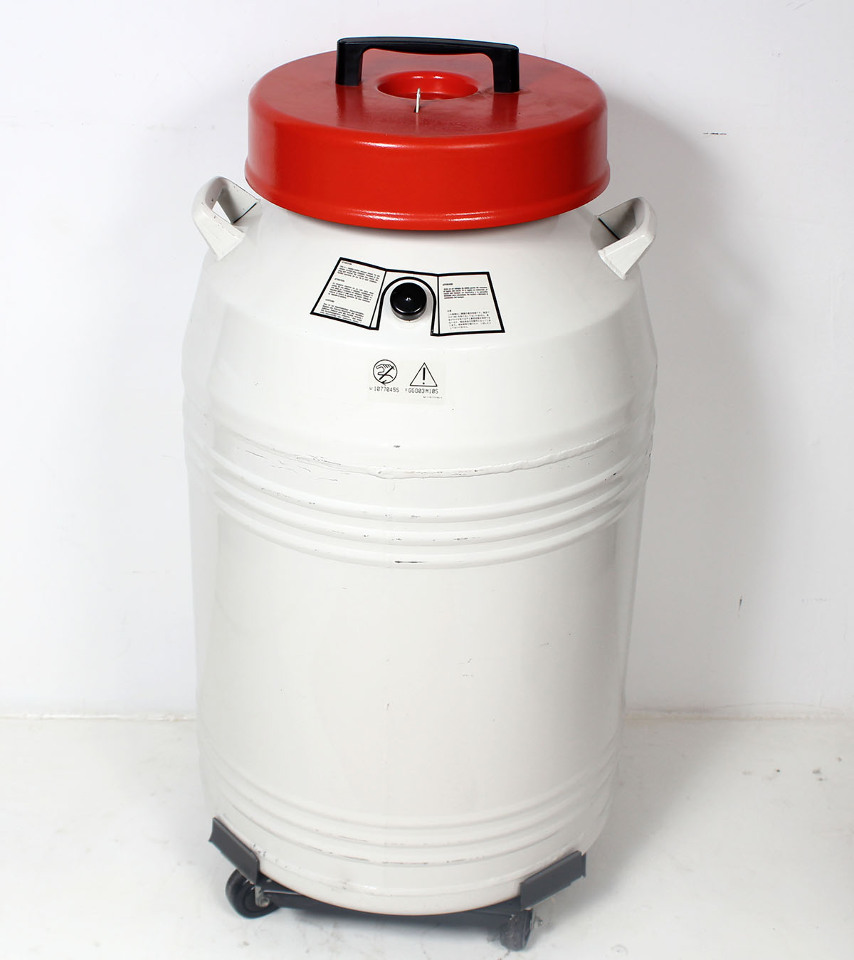

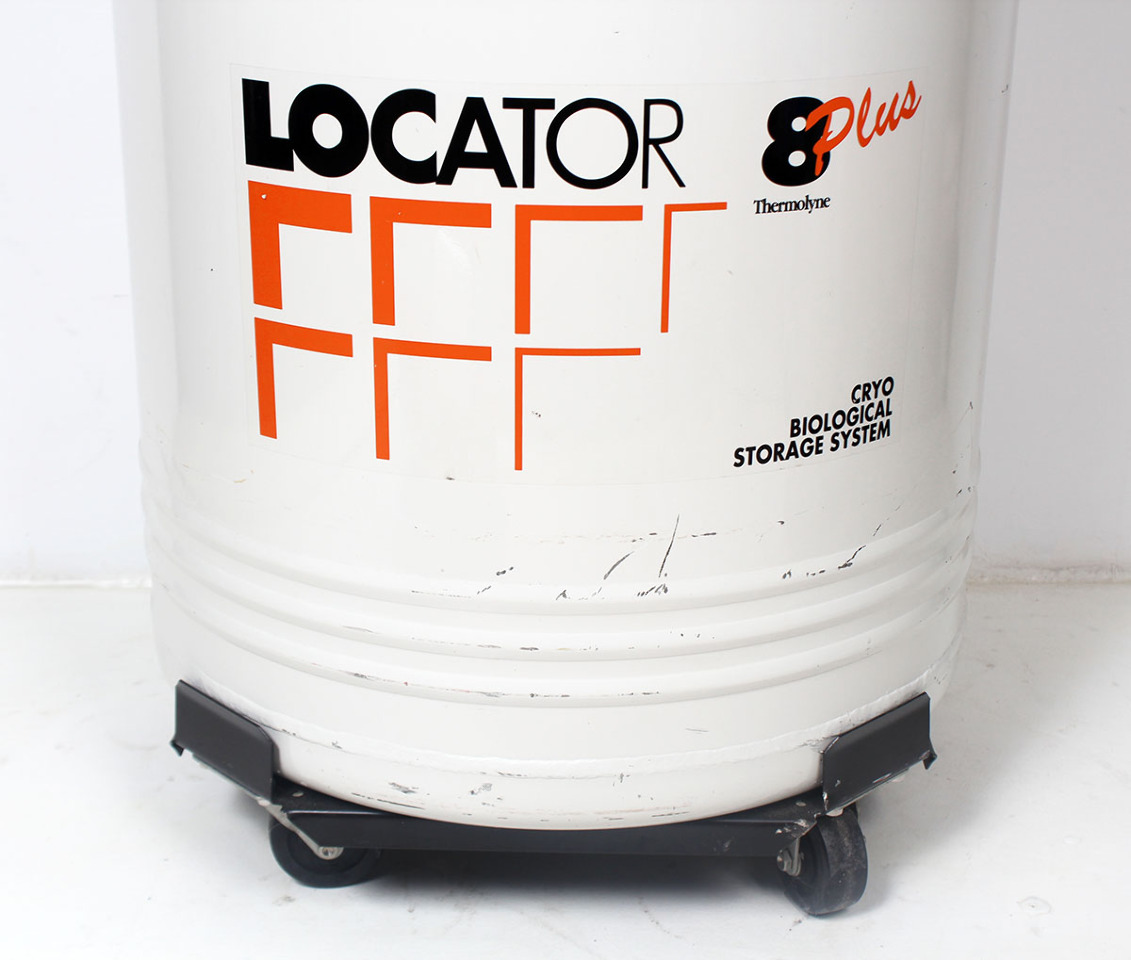

Dewar comes with wheel caster set as shown.
Flat rate freight is based on commercial location with forklift or loading dock in the lower 48.
For residential or lift-gate delivery, contact us for additional shipping cost quote.
Manufacturer Description
The Thermo Scientific Locator 8 Plus is a premium, maximum-density cryogenic storage dewar engineered for highly organized ultra-low temperature preservation of biological specimens. As part of the advanced "Plus" series, this vessel incorporates optimized vacuum insulation and a refined narrow-mouth design to achieve industry-leading liquid nitrogen economy. The Locator 8 Plus features an 8-rack hanging grid assembly, allowing laboratories to segregate and catalog large sample lots into discrete, independent zones. By providing uniform thermal profiles below -180°C throughout the entire chamber—even during minimal liquid levels—this passive system ensures absolute specimen viability and security without relying on electrical grid power or mechanical compressors.
Technical Specifications
- Total Internal Volume: 111 Liters
- Liquid Nitrogen Capacity: 61 Liters (Optimized lower-fill volume to maximize vapor phase security)
- Static Evaporation Rate: ~0.60 Liters per day (High-efficiency thermal boundary insulation)
- Static Holding Time: Up to 101 Days under static conditions
- Storage Configuration: Accommodates 8 independent vertical hanging racks (accommodating standard 2-inch / 5cm cryoboxes)
- Maximum Vial Capacity: Up to 1,600 standard 2.0 mL cryogenic vials (using 2" 100-vial boxes)
- Neck Opening Diameter: 8.5 inches (215 mm) for precision extraction
- Dimensions: 22" Diameter x 37.5" Height (55.9 cm x 95.3 cm)
- Weight (Empty): Approx. 90 lbs (41 kg)
- Value-Add: Equipped with a high-visibility orange insulation lid and a precision-molded, numbered index ring to facilitate rapid rack location identification, preventing prolonged ambient air infiltration.
System Compatibility
The Locator 8 Plus is compatible with standard, universally sized cryogenic workflow hardware:
- Hanging Racks: Designed specifically for Thermo Scientific 8-position vertical box canisters (standard 2-inch box footprint).
- Cryobox Systems: Accepts 2-inch plastic, polycarbonate, or specialized water-repellent cardboard cryoboxes (typically 5" x 5" grids).
- Level Monitoring: While this unit operates as a highly secure passive vessel without a monitor, the lid structure features a standard integrated pass-through port to accept an optional Thermo Scientific ultrasonic liquid level monitor if needed in the future.
- Mobility: Fully compatible with standard Thermo Scientific heavy-duty castered dewar dollies for secure mobility.
Applications
The professional standard for high-density, categorized biological archiving:
- Clinical Research Trials: Segregating diverse patient sample sets into separate, dedicated index racks to prevent cross-contamination.
- Stem Cell & Cord Blood Banking: Ensuring secure, long-term vapor or liquid immersion preservation for high-value therapeutic cell lots.
- Biotechnology Master Lots: Archiving pristine, unmutated bacterial master seed stocks and monoclonal antibodies.
- Academic Sample Archiving: Providing secure backup storage for multiple laboratory groups within a single centralized department dewar.
