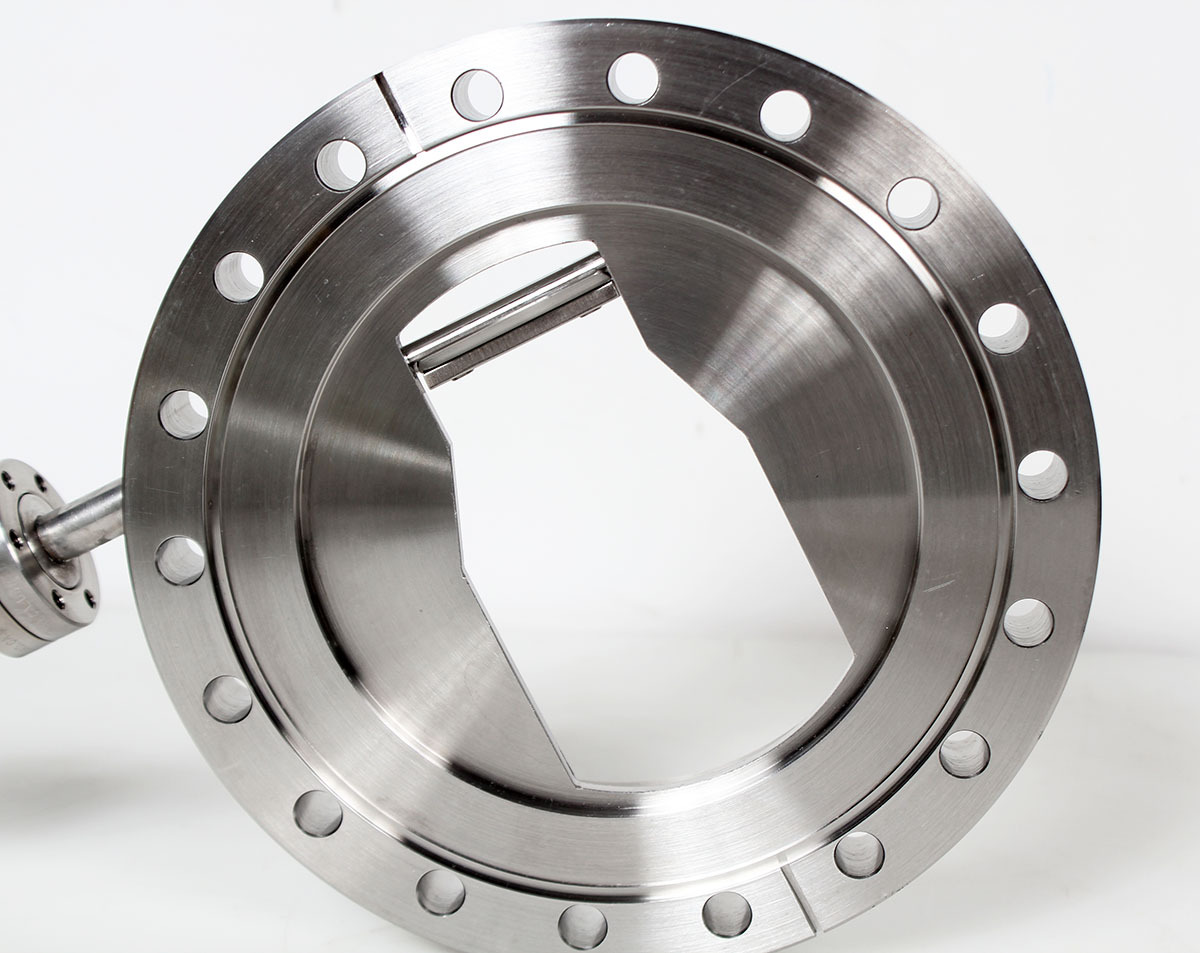

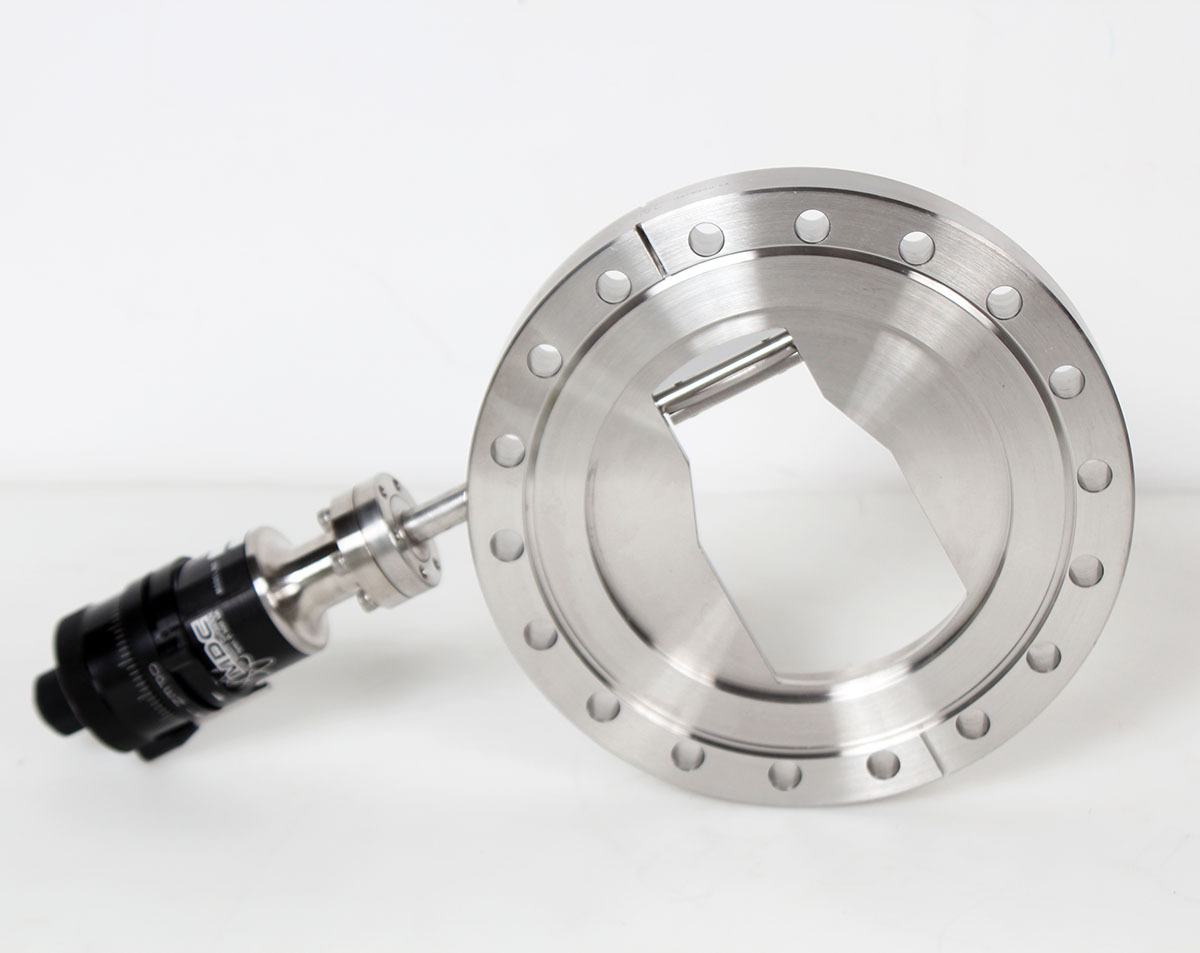

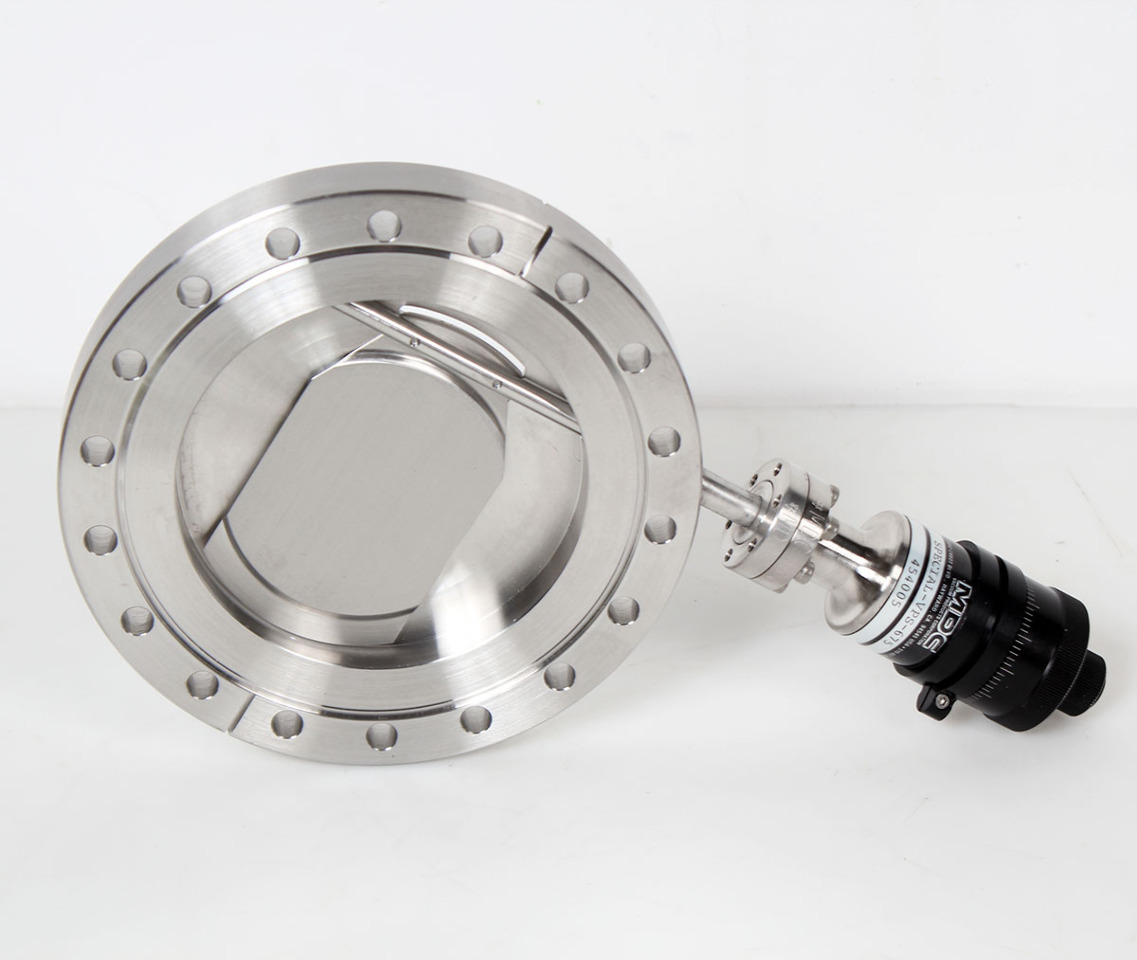

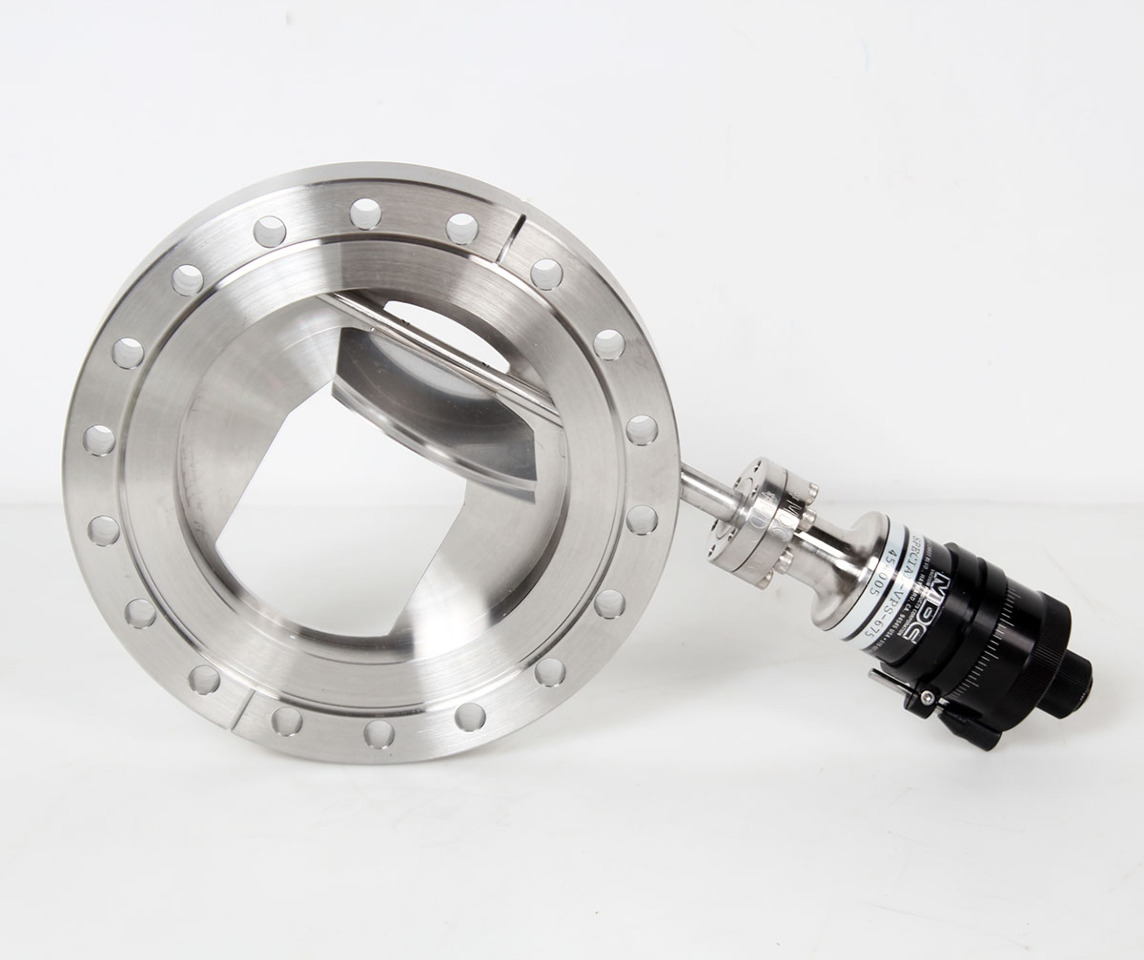

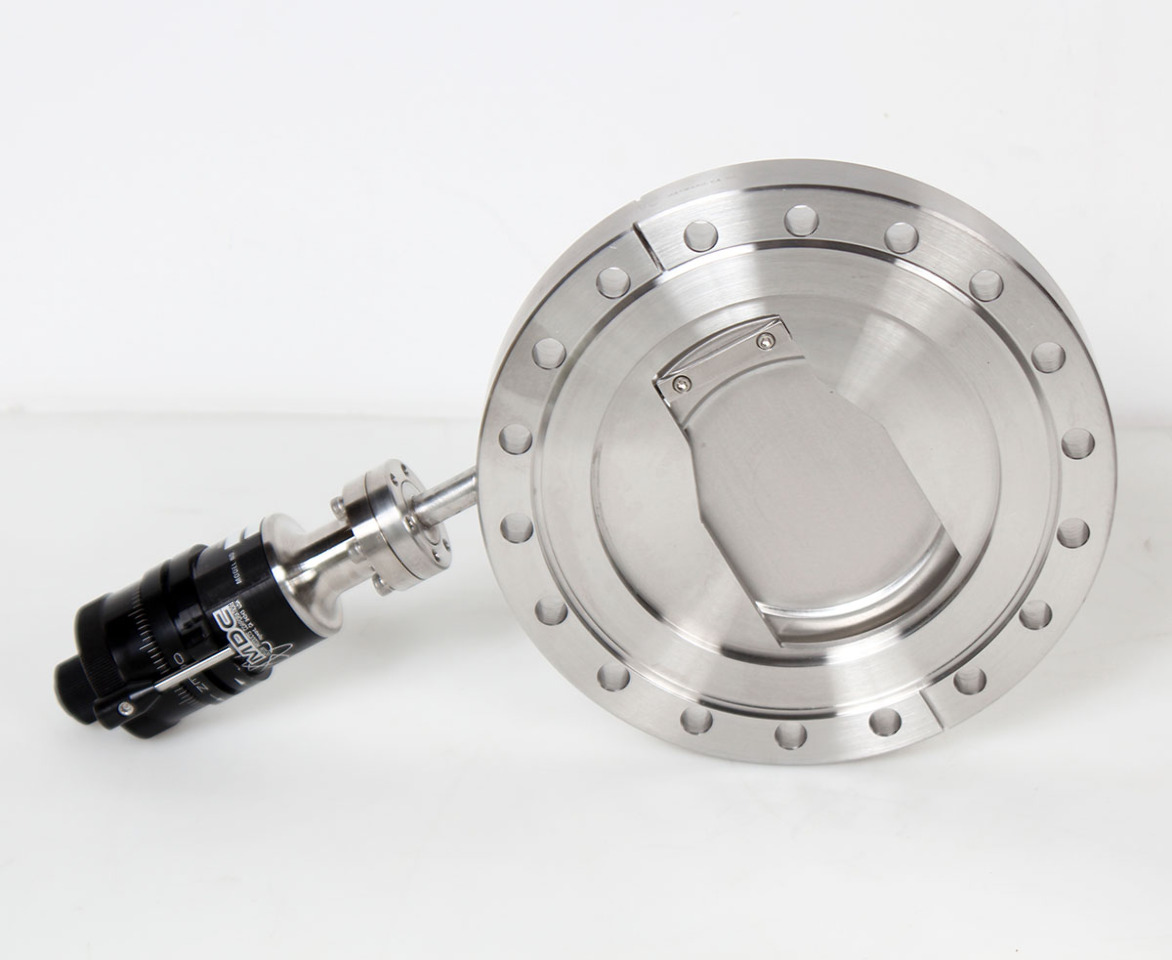

Clean viewport shutter in excellent condition, as shown in photos. Ultra high vacuum, SS304 stainless steal. The knife edge is excellent and the shutter mechanism and control works smoothly as designed.
Guaranteed vacuum integrity. Hassle-free warranty.
Measurements:
Conflat DN130-CF | 171mm O.D.
Manufacturer Description

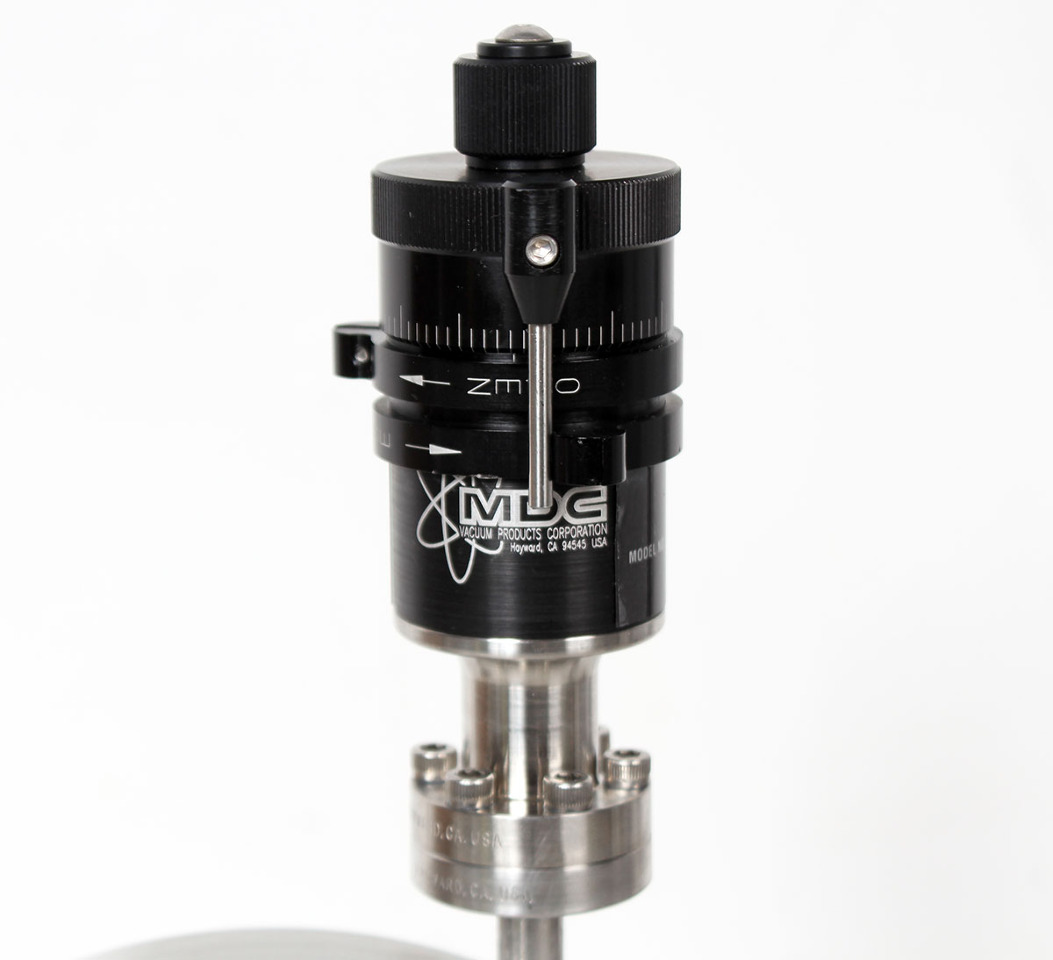

This MDC VPS Viewport Shutter is a 6.75 inch OD (DN160CF 171 mm) unit for large-aperture vacuum systems requiring complete viewport protection. The pivoting flapper is actuated through a bellows-sealed rotary drive allowing precise partial and full openings. With a CF metal seal interface and stainless steel construction, it is bakeable to 230°C and provides long-term UHV performance for vacuum coating, plasma processing, and analytical equipment.
| PART NUMBER | REFERENCE | NOMINAL FLANGE | FLANGE OD | BOLT CIRCLE | FLANGE THICKNESS | A | B | SHUTTER ANGLE |
|---|---|---|---|---|---|---|---|---|
| 454005 | VPS-675 | 6-3/4 | 6.75 | 5.969 | 0.84 | 7.78 | 1.53 | 76° |
- Brand: MDC
- Condition: Used
- Notes: Excellent condition w/ clean knife edge. Guaranteed vacuum integrity.
- SKU: ST0038791
- Inspected By: 2
- Item ID: 38791

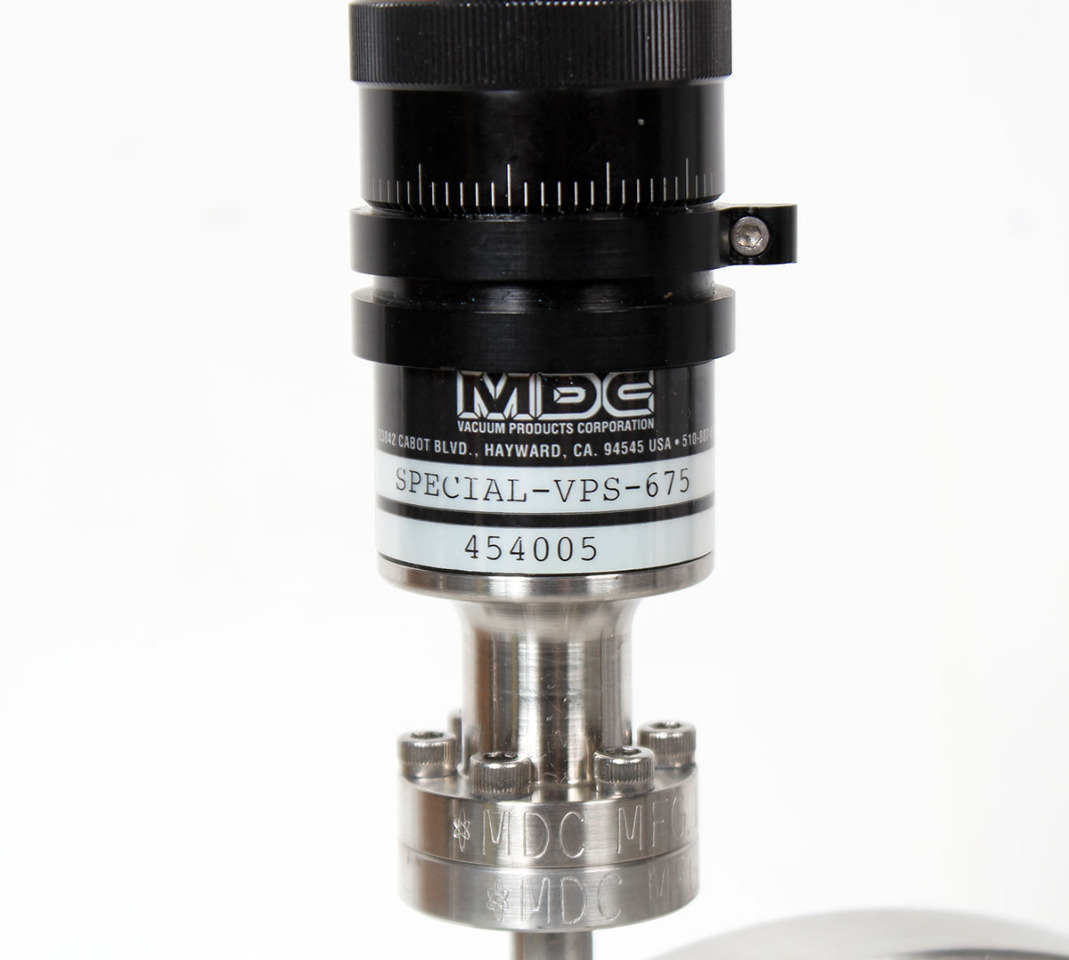

- Model: Special VPS-675
